10
Created today
Downloaded 12 times
Description
Left half of a structural truck chassis, designed with a flat interior face to mate directly to a mirrored right half.
- Length: 500 mm
- Wall Thickness: 4 mm structural ribs
- Mating: 8 mm alignment pegs and one center hole with 0.3 mm clearance
- Weight Reduction: C-channel styled underside cutouts
Images
More like this
Explore more in Automotive, RC & Hobby →
10-Camion
A rugged, 85mm rear-right truck wheel ready for hard use. The tire features deep, directional tread angled specifically for the right side of the vehicle, ensuring proper grip and a realistic mirrored stance compared to its left-side counterpart. Design Notes Dimensions: 85mm outer diameter, 35mm width. Mounting: Standard 6mm pass-through axle hole. Detailing: Deep recessed rim with a prominent center hub and six realistic lug nuts. Printability: Designed to print flat on its inner face with no supports required.
5-Camion
A magnificent, fully support-free rear box roof designed for a modular 1/10 to 1/14 scale parade truck. It features a sweeping, tiered profile inspired by classic Kasbah architecture, capped with a rich octagram lattice and a ceremonial octagonal finial. The underside is deeply hollowed to save weight while retaining robust 7–14mm structural walls. Everything is angled at 45 degrees or steeper internally and externally, ensuring a perfect print right on the bed. Assembly Details Mounting: 6 integrated downward pins (4.7mm diameter) engineered for a crisp 0.3mm slip-fit into 5mm holes on your side panels. Print Settings: Drops straight onto the bed. No supports required anywhere. Material: Generous wall thicknesses make this ideal for PLA or PETG.
2-Camion
The foundation of the modular heavy-duty transport system. This structural ladder-frame chassis is engineered to bear the weight of the Moroccan Unity Day parade truck, serving as the central spine that unites the front cabin, cargo box, axles, and front bumper. Designed for FDM printing on large-format beds like the K1 Max, it maximizes structural rigidity through boxed crossmembers while shedding unnecessary weight via lateral truss cutouts. Features Heavy-Duty Ladder Frame: Twin 15mm longitudinal beams locked together by five robust crossmembers. Reinforced Axle Blocks: Widened mounting zones at the front and rear accommodate 8mm axles, providing stability under load. Modular Interfaces: 6.3mm top-down alignment holes for the cabin and cargo modules, plus 5.3mm front-facing ports for bumper attachment. All joints feature a 0.3mm tolerance for smooth friction-fit assembly. Print Notes Situate flat on the bed (Z=0). Prints entirely without supports. Recommended minimum 3 perimeters (walls) and 25% gyroid infill for structural durability.
Faceted SimHub Button Box
A clean, industrial-styled button box designed for sim racing rigs, controlling Wind, Pedals, and Bass Shakers via SimHub. The enclosure uses a faceted, dodecahedron-inspired geometry to eliminate flat overhangs and keep the footprint small. The front panel cuts a heavy 45° chamfer, hiding the seam where it snaps into the rear body. Features internal snap-fit prongs and receiver towers — no visible hardware required. Base dimensions reduce sharply toward the mount to avoid interfering with wheelbases or monitor arms. Built with clearances for standard Cherry MX switches and a toggle switch cut out for the top left.

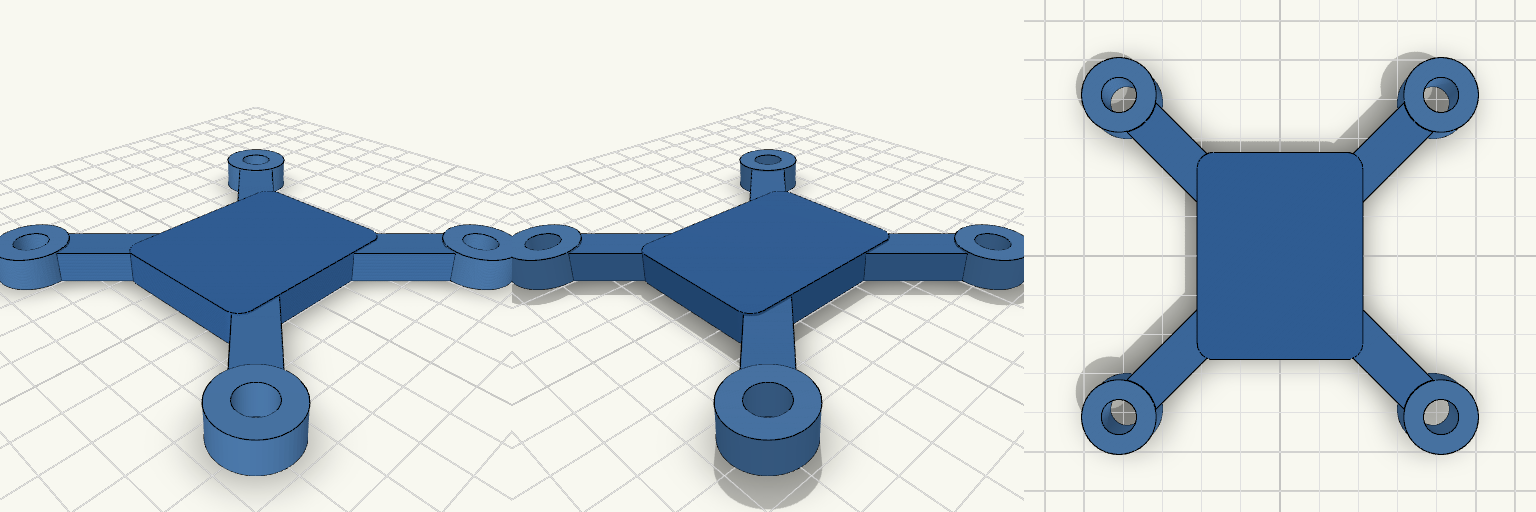

Solid Core Quadcopter Frame
