104-Cell AA Battery Vault
Created today
Description
This heavy-duty grid vault keeps 104 AA cells locked down and separated.
The front closure uses a single wide flex-arm cantilever built straight into the lid. It swings down to snap automatically over a retaining ledge on the base, holding the lid firmly shut until you pull the finger grip outward.
- Clearance: 0.4 mm gap on all latch and hinge mechanisms
- Lid Mechanism: Print-in-place folded hinge
- Print Layout: Prints fully open and flat on the bed
Images
More like this
Explore more in Storage & Organization →

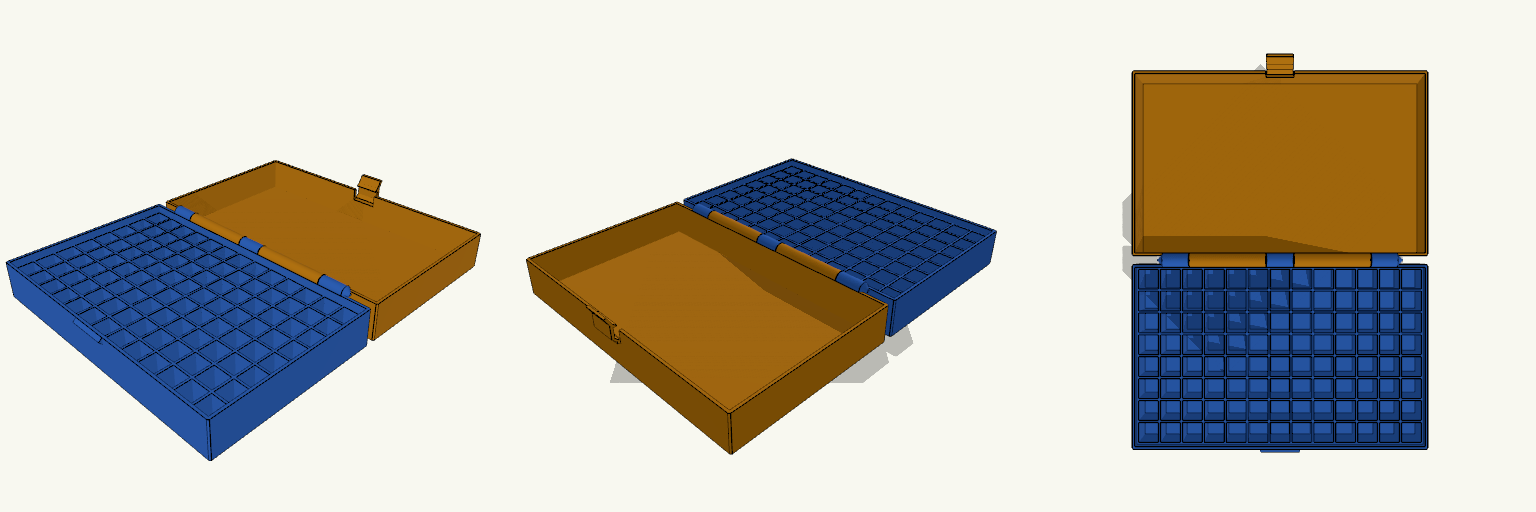

VoltGrid — Print-in-Place Battery Case
