20
Created today
Description
RC wheels always crack at the hub after a bad jump, or spin out when the stock treads wear flat. This is the right-side replacement—built dense enough to survive a hit, with directional treads angled specifically for the starboard side to keep it digging into the dirt instead of skating over it.
Fitment Details
- Dimensions: 65 mm outer diameter, 18 mm width.
- Axle: 5.2 mm central bore (fits standard 5 mm RC axles with clearance).
- Print Settings: Lay it flat. No supports needed. Run it solid or with dense gyroid infill to keep the hub from tearing out under torque.
Images
More like this
Explore more in Automotive, RC & Hobby →
10-Camion
A rugged, 85mm rear-right truck wheel ready for hard use. The tire features deep, directional tread angled specifically for the right side of the vehicle, ensuring proper grip and a realistic mirrored stance compared to its left-side counterpart. Design Notes Dimensions: 85mm outer diameter, 35mm width. Mounting: Standard 6mm pass-through axle hole. Detailing: Deep recessed rim with a prominent center hub and six realistic lug nuts. Printability: Designed to print flat on its inner face with no supports required.
8-Camion
A truck missing one wheel is just a seesaw that scratches the floorboards. Stripped hex hubs or worn treads usually end a run early; this is the right-side replacement to get it rolling flat again. The tread channels are cut at a 20-degree angle to specifically mirror the left side, keeping the traction profile symmetrical. Fitment and Print Details Outer Diameter: 78 mm Width: 26 mm Drive Interface: Standard 12 mm RC hex socket (6 mm deep) Axle Clearance: 5.2 mm bore, clearing standard 5 mm axles. Printing: Drop it flat on the inner face (the hex side). No supports needed; the outer rim inset chamfers cleanly. Needs dense infill around the hub to prevent the hex from rounding out under torque.

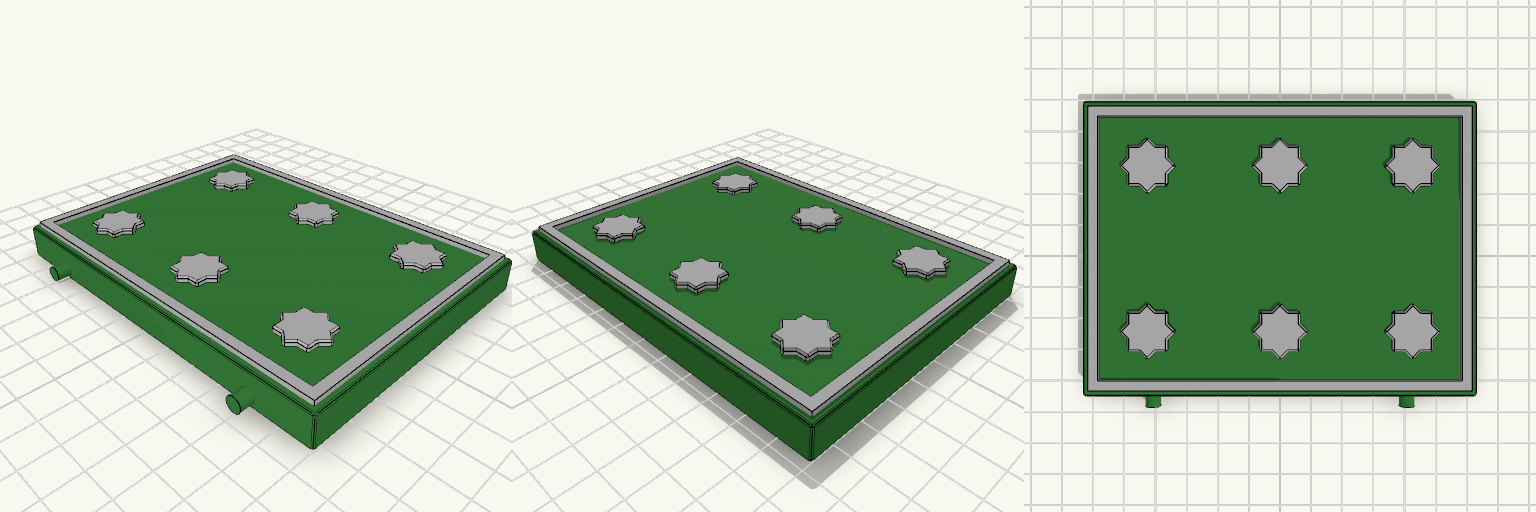

12
Large vehicle prints warp, lift off the bed, or take days to finish. Splitting the chassis into smaller, hollowed quadrants stops the curling and lets the pieces finish quickly. This is the left-side foundation. Fit Details Overall Dimensions: 140 mm × 70 mm × 12 mm Wall Thickness: 3 mm perimeters and floors for rigid bridging Mating Pins: 5 mm diameter pins into 5.3 mm receiver holes for a clean press-fit Panel Mounts: Four 6.3 mm top sockets align the upper body elements
11-Camion
Heavy-duty front bumper assembly for 80mm standard RC frame rails. Designed specifically as the forward module for the Moroccan Unity Day parade truck layout. Replaces standard flat-plate bumpers with a wrapped 45mm profile. The decorative emblem sits flush against the primary face to eliminate support material requirements during FDM printing. Mating Surfaces to Check Rail Spacing: 80mm center-to-center. Mounting Hardware: 3.5mm vertical bores set 15mm back from the bumper plate, suited for M3 bolts with standard 0.25mm operational clearance. Overall Clearance: 160mm total width; verify your wheel sweep won't clip the 40mm overhangs on standard steering throw.
9-Camion
Heavy-duty rear wheel designed for modular truck assemblies. Features an 84mm outer diameter with aggressive block treads and a deep-dish rim structure. Built to transfer high torque from a printed axle without slipping. Prints flat on the inner face. Diameter: 84mm (including treads) Width: 30mm (32mm at hub) Axle bore: 9mm hex socket (across corners) Mounting: Prints flat on the Z-axis, no supports required. Material: Designed for rigid filaments like PLA or PETG.
