150mm Borg Friendship Vault
Created today
Remixed once
Description

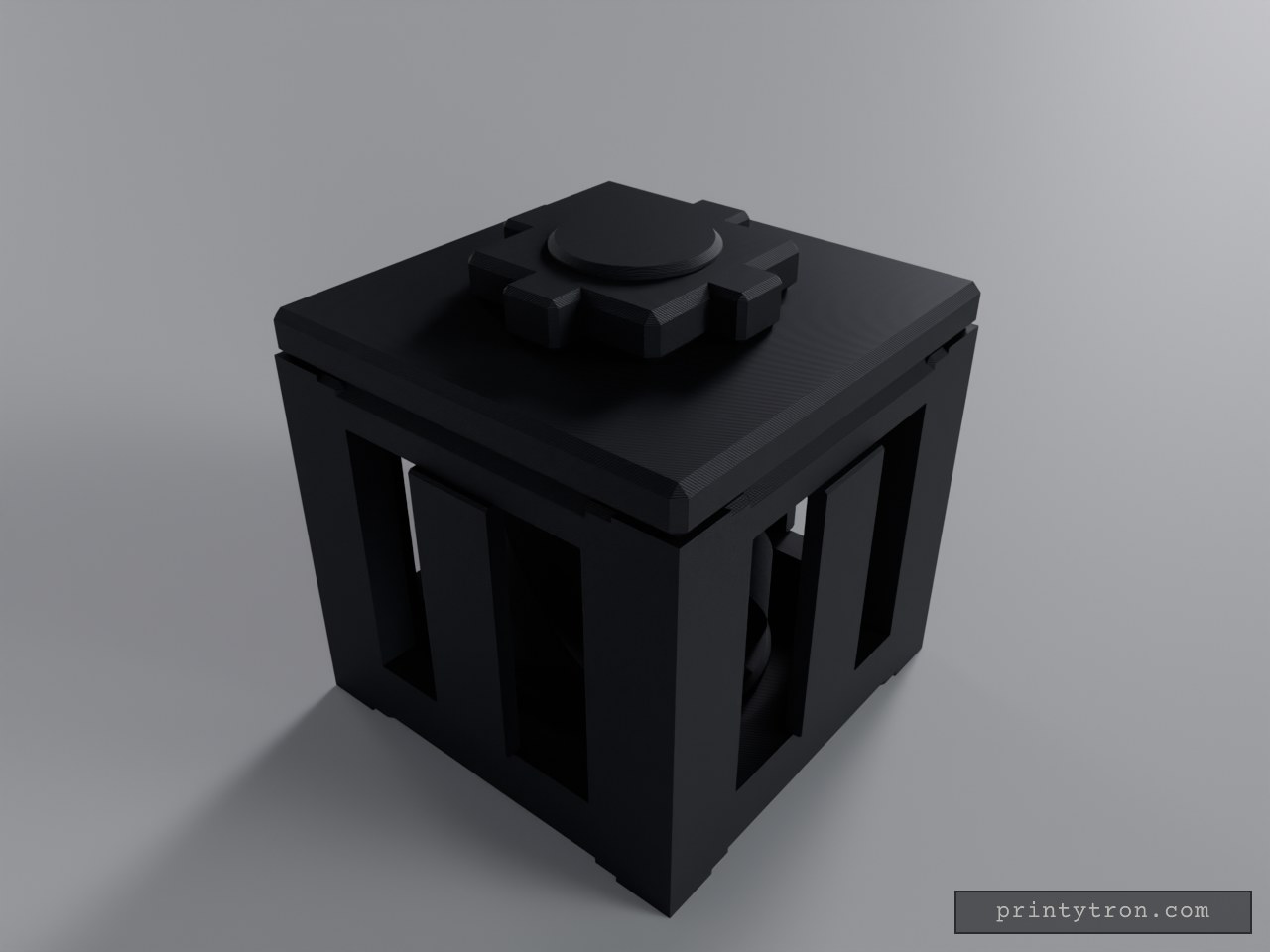

Zak's Borg Friendship Vault. Three-piece print, designed to drop in and seat clean without fasteners.
- Overall Footprint: 150mm x 150mm.
- Total Height (Assembled): 145mm.
- Internal Payload Bore: 65mm diameter x 105mm depth.
- Cage Windows: 90mm span, designed to bridge flat across the top without support on well-calibrated machines.
The top cap runs a 118mm square boss to locate itself on the outer frame, plus a 64.5mm cylindrical plug to lock into the core and prevent horizontal slop. Print the outer cage and cap in black PETG; run the core in fluorescent PLA. Keep your cooling aggressive for the long window bridges.
Photos
Technical views
More like this
Explore more in Storage & Organization →
104-Cell AA Battery Vault
This heavy-duty grid vault keeps 104 AA cells locked down and separated. The front closure uses a single wide flex-arm cantilever built straight into the lid. It swings down to snap automatically over a retaining ledge on the base, holding the lid firmly shut until you pull the finger grip outward. Clearance: 0.4 mm gap on all latch and hinge mechanisms Lid Mechanism: Print-in-place folded hinge Print Layout: Prints fully open and flat on the bed
Archiv-Einschub: Schiffe versenken
Ein maßgefertigtes, modulares Schubladen-Regal für Brettspiele und Kartensets (hier ausgelegt auf 150 x 45 mm Boxen). Das Set besteht aus drei Teilen: Regalgehäuse: Eine stapelbare, robuste Außenhülle mit Fase. Schublade: Passgenau mit 0,8 mm Spielraum zum einfachen Herausziehen. Ein Griff an der Front erleichtert das Greifen. Inlay-Buchstaben: Die Schrift ist als 1,5 mm tiefe Aussparung in der Frontplatte angelegt. Die separat gedruckten Buchstaben sind minimal verkleinert (0,15 mm Toleranz) und können nach dem Druck passgenau in die Front eingedrückt werden. Ideal für ein aufgeräumtes Regal, bei dem man jedes Spiel sofort auf der Frontblende erkennt.

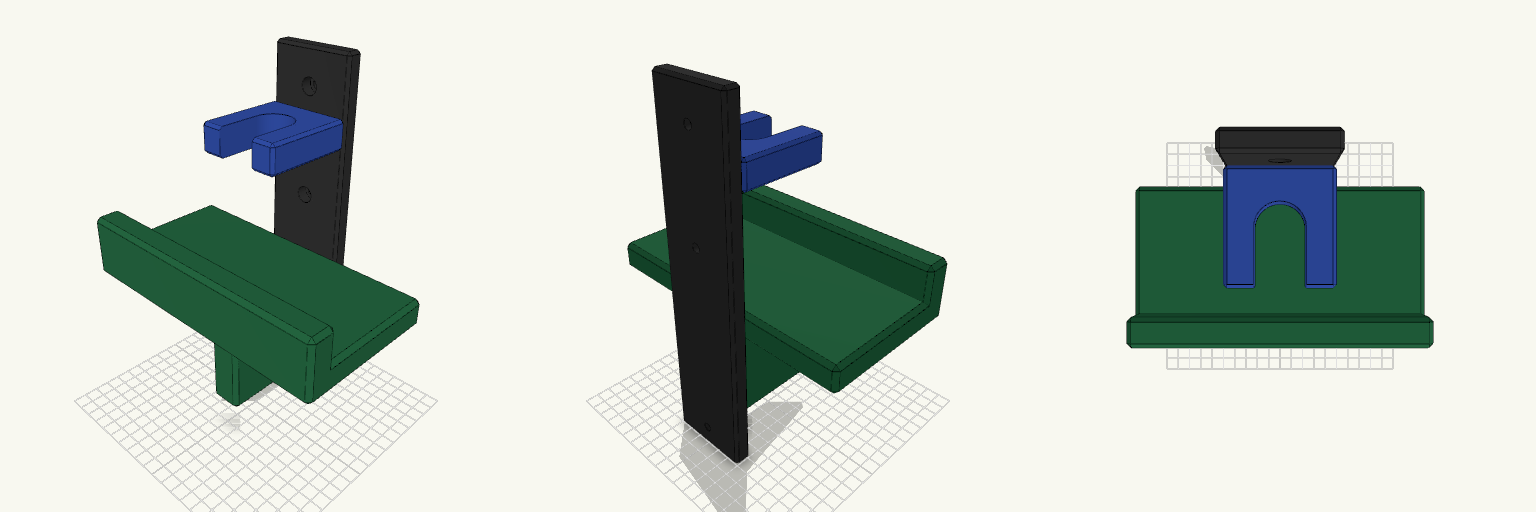

Garden Hose and Nozzle Hanger
