20mm Webbing Bag Dispenser
Created 1 months ago
Description
A two-piece threaded canister built to mount directly onto 20mm flat dog leashes. The main barrel holds standard 45mm waste bag rolls and features a bottom-feed slot to stage the tail of the next bag, preventing spooling while keeping the roll ready.
Fitment and Clearances
- Leash Interface: Sized strictly for 20mm flat webbing up to 3mm thick. Do not attempt to force-fit over rolled leather, rope, or 25mm (1-inch) standard webbing.
- Roll Capacity: 47mm inner bore provides rotational clearance for 45mm industry-standard rolls.
- Feed Slot: 15mm base aperture for staging the bag tail.
- Thread Standard: 50mm diameter with a 3mm pitch, cut with 0.8mm diametrical clearance.
Images
More like this
Explore more in Keychains & EDC →
Mechanical 40-Quarter Dispenser
A fully mechanical, gravity-fed coin magazine tailored for standard U.S. quarters. Designed to slip into a pool cue bag, it stores a full $10 roll vertically and cleanly dispenses exactly $1 (four quarters) per cycle into the palm of the hand. The mechanism relies on a two-stage sliding escapement. In the resting position, the bottom four coins sit perfectly flush inside the 7.2mm-thick slider pocket. When the thumb tab is pulled outward, a chamfered ramp on the top trailing edge of the pocket catches the fifth quarter and guides it smoothly onto the solid tail of the slider, suspending the rest of the stack. Once the pocket aligns with the drop chute at full extension, the isolated four quarters fall through. A captive printed pin mounted from the base runs in an internal track on the slider, acting as a hard travel limit for both the pull and return strokes. Design Features Threaded Cap: The top of the magazine tube features a coarse 4mm-pitch thread, securing the cap firmly for travel. Clearance-Tested Slot: The stopper pin track is positioned well behind the coin pocket to ensure no interference with the resting quarters. Coin Bore: Sized at 25.2mm to allow smooth gravity feed for a 24.26mm quarter. Slider Geometry: The 7.2mm thickness dictates the exact four-coin dispense count.
Minimalist Concert Ola Keychain
A sleek, minimalist keychain bearing the word "ola" in the Concert One font. The lowercase letters are gently thickened to form a continuous, sturdy body, finishing in a small heart on the right side. Design Features Integrated Keyring Tab: A reinforced loop in the top-left corner is ready for standard split rings. Continuous Body: Offset text creates a solid, unified piece that prints securely and cleanly. Friendly Silhouette: The Concert One typeface combined with a minimal heart provides a smooth, tactile feel.
Fluier Cochilie Spiralată
Un fluier cu siluetă de cochilie de mare: camera rotundă poartă o nervură în spirală, iar muștiucul scurt iese în față ca un cioc. Aerul trece printr-un canal îngust, lovește muchia ascuțită din fereastră și face camera să sune. Cameră de rezonanță cilindrică, închisă Inel pentru breloc în spate Nervura spiralată se poate imprima într-o altă culoare Se printează culcat, fără suporturi; stratul de 0,2 mm dă un sunet curat
Fidget
What it's for A fully print-in-place fidget roller inspired by continuous-motion hand toys. It features two heavily grooved outer cylinders captured on a rigid internal frame. Built to be rolled continuously in one hand to keep fingers busy. Dimensions Overall size: 37 mm wide, 63 mm tall, 22 mm deep. Rollers: 22 mm diameter, 50 mm tall with 20 scalloped grip grooves. Clearance: Designed with a 0.5 mm gap top, bottom, and radially around the axles for a free spin immediately off the build plate. Print notes Prints completely vertically without supports. The top frame link is designed with a flat bottom to bridge cleanly across the two internal axles without adhering to the rollers beneath it. Once finished, a firm twist breaks any minor stringing and frees the rollers.
Sifflet Tactique Double Chambre
Un sifflet de survie compact et puissant, construit autour d’une architecture à double chambre. Imprimable sans aucun support, il utilise deux cavités de résonance de longueurs différentes pour générer une dissonance acoustique perçante. Pour les remixeurs Ce design est purement mathématique et conçu pour être ajusté : Pitch et Dissonance : La longueur des chambres (actuellement 41 mm et 47 mm) dicte la fréquence. Raccourcissez-les pour un son plus aigu. Coupe du sifflet (Fipple) : L'angle de la rampe est fixé à -18 degrés et le bord d'attaque divise le flux d'air à Z=11.0. Si votre imprimante a tendance à sur-extruder, ajustez la hauteur de la fenêtre de frappe pour garantir que l'air ne soit pas étouffé. Grips : Les rainures latérales et supérieures sont de simples soustractions itératives, faciles à remplacer par des logos ou du texte plat.
montr 2

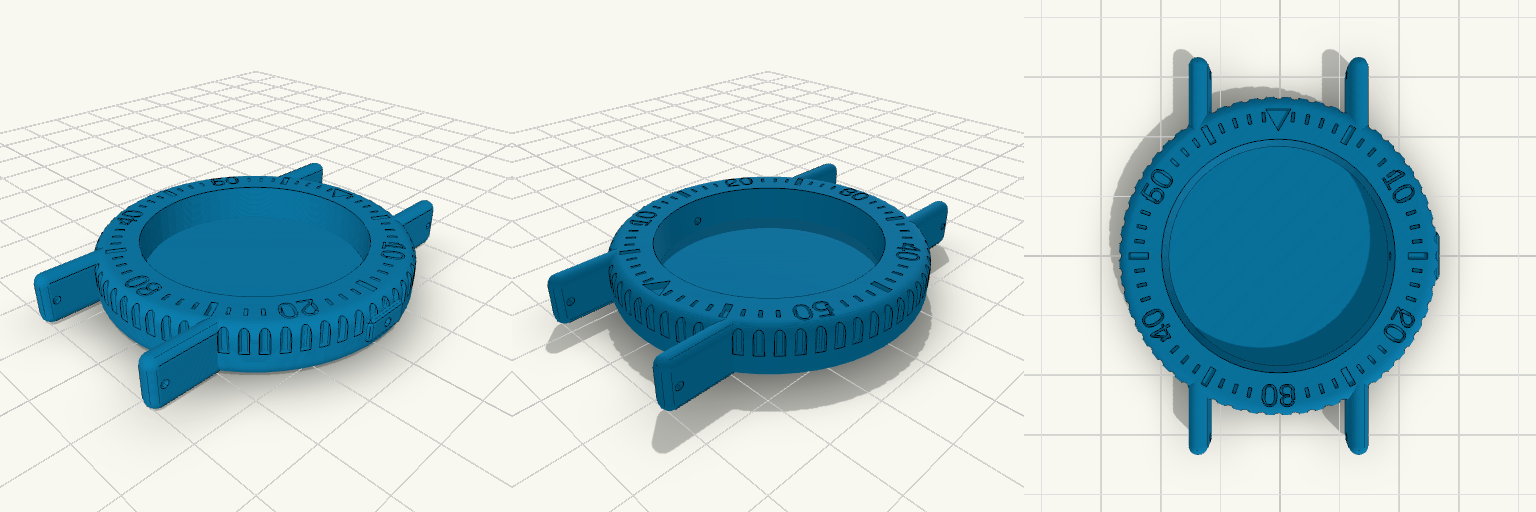

What it's for A streamlined, one-piece 50 mm watch case with a 22 mm lug width. The edges have been significantly rounded for a softer, more refined profile on the wrist. Features a classic coin-edge bezel aesthetic with engraved minute markers and an inverted triangle at 12 o'clock. Dimensions Overall Case: 50 mm diameter, 8 mm thickness Inner Cavity: 36 mm diameter, with a solid 2 mm base floor Lugs: 22 mm spacing, slightly thinned for a dressier look Assembly Standard 22 mm spring bars will fit the 1.3 mm lug holes. The central cavity is a straight cylindrical fit, ready for a 36 mm movement or a custom dial insert.
