5mm Hex to D-Shaft Adapter
Created yesterday
Description
Adapter coupler designed to bridge a D-shaft DC motor and a hex-hub wheel. Built to a total length of 30mm, featuring a dedicated socket for the motor shaft and a hexagonal drive peg for the wheel.
- Motor Socket: Sized for a D-shaft with a 3mm flat (assumes a standard 4mm overall shaft diameter). Depth allows for a 10mm long shaft.
- Wheel Drive: Hexagonal peg scaled to 4.8mm across flats to provide sliding clearance into a rigid 5mm hub.
- Clearances: Includes 0.2mm offsets on all critical mating surfaces for standard FDM printing tolerances.
Images
More like this
Explore more in Automotive, RC & Hobby →
D-Shaft to Hex Motor Adapter
A rigid drive adapter connecting a standard D-shaft motor to a hexagonal RC wheel hub. The base features a keyed socket to prevent slip under torque, while the driven end seats into the tire's existing recess. Overall Length: 25 mm Motor Socket: 6 mm diameter with a 3 mm flat profile, 10 mm depth Wheel Drive: 5.2 mm flat-to-flat hexagonal peg, 10 mm length Base Diameter: 12 mm for structural wall thickness around the socket
Track-Ready Kart Frame
A half-meter-long go-kart frame complete with a full racing loadout. The chassis features lightweight cutouts along the floor pan and thick side pods for impact resistance, while the cockpit sports a contoured racing seat with aggressive side bolsters to keep the driver planted. Out back, a finned engine block feeds twin rear-facing exhaust pipes. Key Features Chassis Design: Extended floor pan with weight-reduction cutouts and integrated side pods. Racing Seat: Deeply contoured base and backrest with prominent side bolsters. Steering: Three-spoke wheel mounted on an angled column with a solid base support. Powerplant: Rear-mounted block engine featuring cooling fins and dual exhausts. Wheels: Rounded tires with defined center hubs mounted on robust solid axles.

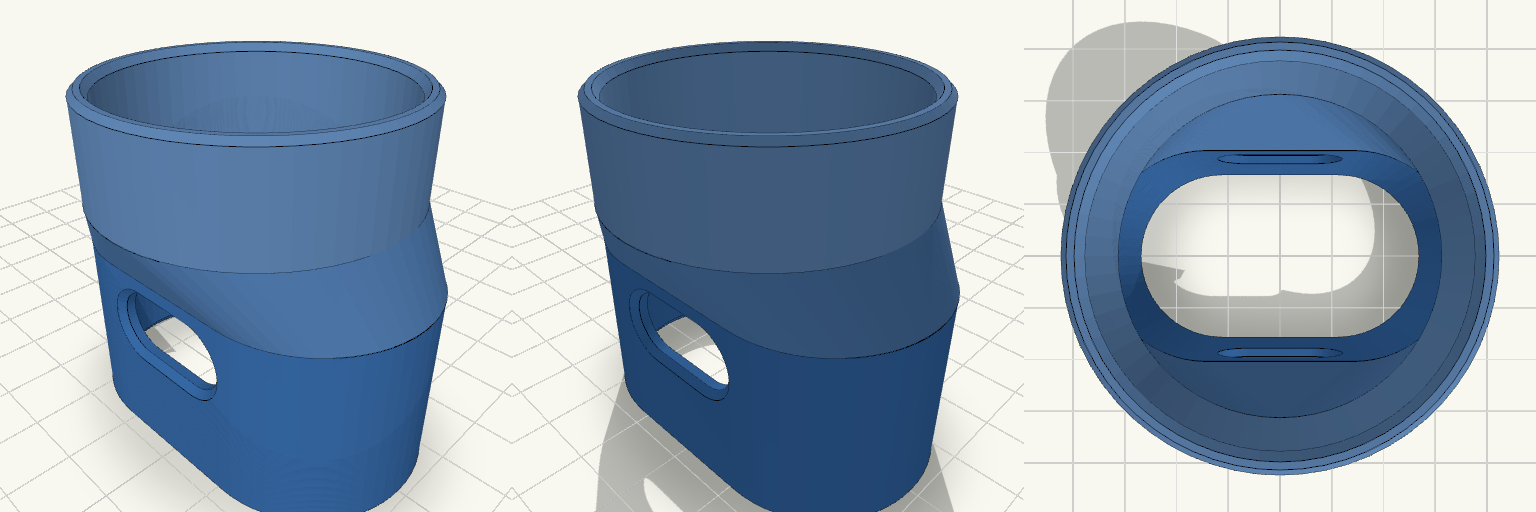

Gateway Intake to Combustion Engine Adapter
