60mm OD Flanged 45° Pipe
Created today
Remixed once
Description
60mm outer diameter flanged pipe with a 45-degree elbow.
Features a continuous 56mm inner bore with a 2mm wall thickness. The 100mm OD flange is positioned exactly 30mm from the base and runs 3mm thick.
Check your clamp or mating collar against the flange thickness and 100mm outer diameter. No mounting holes are drilled; this part is built for bonded or slip-fit assemblies where the 56mm internal passage must remain entirely unobstructed.
Images
More like this
Explore more in Workshop & Tools →
60mm Winding Spool With Anchors
What it's for A compact, highly functional utility spool tailored for winding wires or thin cables. It features two specialized holes: a 2.5 mm pass-through hole at the base of the core to thread the start of the wire, and a smaller 1.5 mm hole on the outer edge of the flange to secure the loose end once wound. Dimensions Outer Diameter (Flanges): 60 mm Core Outer Diameter: 25 mm Central Axle Hole: 8 mm Groove Width (Winding Space): 15 mm Flange Thickness: 2.5 mm each (Total height: 20 mm) Assembly Slide onto an 8 mm rod or bolt to spin. Pass the start of the wire through the inner bottom hole to anchor it, wind evenly across the 15 mm groove, and lock the tail through the outer top hole.
Matix Snap-Fit Test Frame
Un piccolo frammento della scatola principale, isolato e progettato per essere stampato velocemente. Serve per testare fisicamente l'inserimento e lo scatto del frutto BTicino Matix prima di impegnare ore nella stampa del pezzo completo. Orientamento fedele: Si stampa in verticale, in modo che le linee di livello (layer) e i ponti della fessura riproducano esattamente le condizioni della scatola finita. Fianchi rigidi: Il profilo a "C" impedisce alla parete di flettere quando premi l'interruttore. Risparmio: Pochi grammi di filamento per verificare le tolleranze di aggancio.

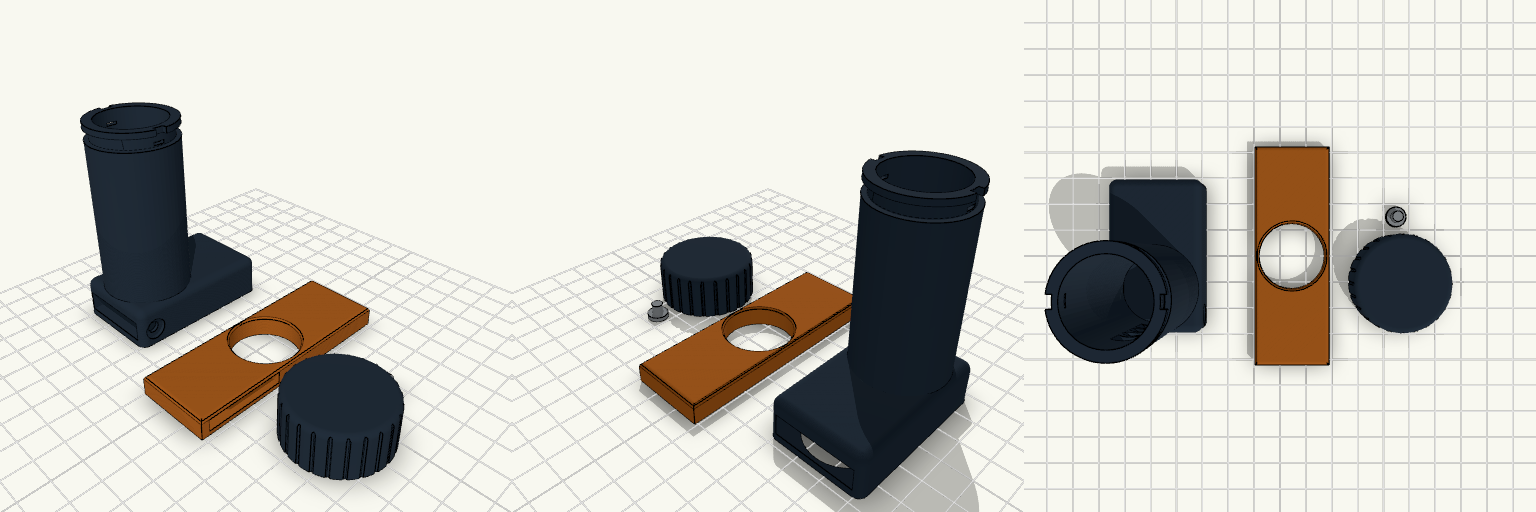

Side-Pinned Click Lock 2 40-Quarter Dispenser
What it's for A fully mechanical, gravity-fed coin magazine tailored for standard U.S. quarters. It stores a full $10 roll vertically and dispenses exactly $1 (four quarters) per cycle into the palm of the hand. The mechanism relies on a two-stage sliding escapement, now utilizing a side-mounted limit pin to ensure the coin path remains entirely unobstructed during travel. Dimensions Overall Envelope (Dispenser): 34 × 56 × 75 mm (when closed) Slider Thickness: 7.2 mm Coin Bore: 25.2 mm (optimized for 24.26 mm quarters) Clearances Slider Play: 0.4 mm vertical clearance inside the track Pin Clearance: 0.3 mm on the locking pin diameter Cap Threads: 0.6 mm diametric clearance for smooth twisting Assembly The main body, slider, cap, and limit pin print separately without supports. Insert the slider into the main body track, align the side slot with the right-hand hole on the body, and push the limit pin flush into the side countersink to capture the mechanism. Remix ideas Threaded Cap: The top of the magazine tube features a coarse 4mm-pitch thread. Alter the tube height to make a shorter 20-coin version. Coin Bore: Tweak the internal offset diameter for other currencies or custom arcade tokens. Slider Thickness: Scaling the Z-dimension alters how many coins drop per pull.

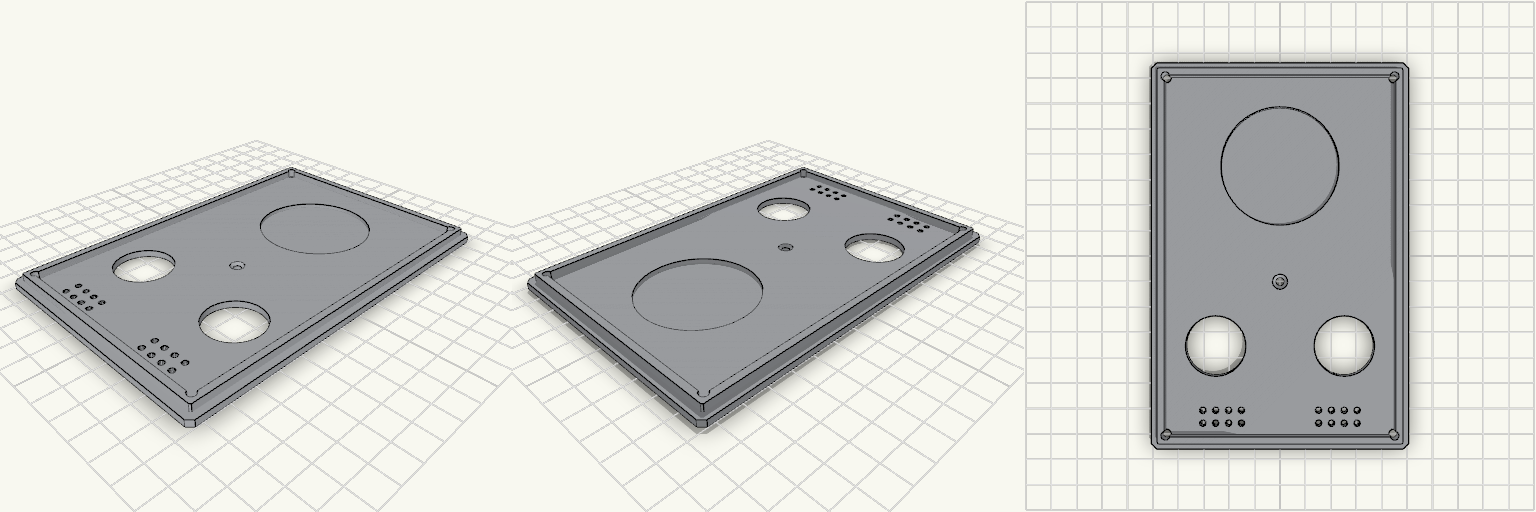

CareProof Prototype Enclosure
A modular, two-piece electronic enclosure engineered for a 2x3-inch prototype board, a PN532 NFC reader, twin PIR motion sensors, and a BME280 temperature module. Designed with repeated access in mind, the housing features generous internal clearances and dedicated external ports for both programming and external sensors. Features include: Built-in standoffs sized for a standard 2x3" mainboard and a PN532 module A precision 0.8 mm-thick window for reliable NFC tap reading Dedicated 23.5 mm dual cutouts for motion sensor domes A discrete ventilation matrix targeting the BME280 bay Constant-access USB-C cutouts and top-edge wire routes for peripheral sensors External mounting ears for secure, flush-to-wall installation

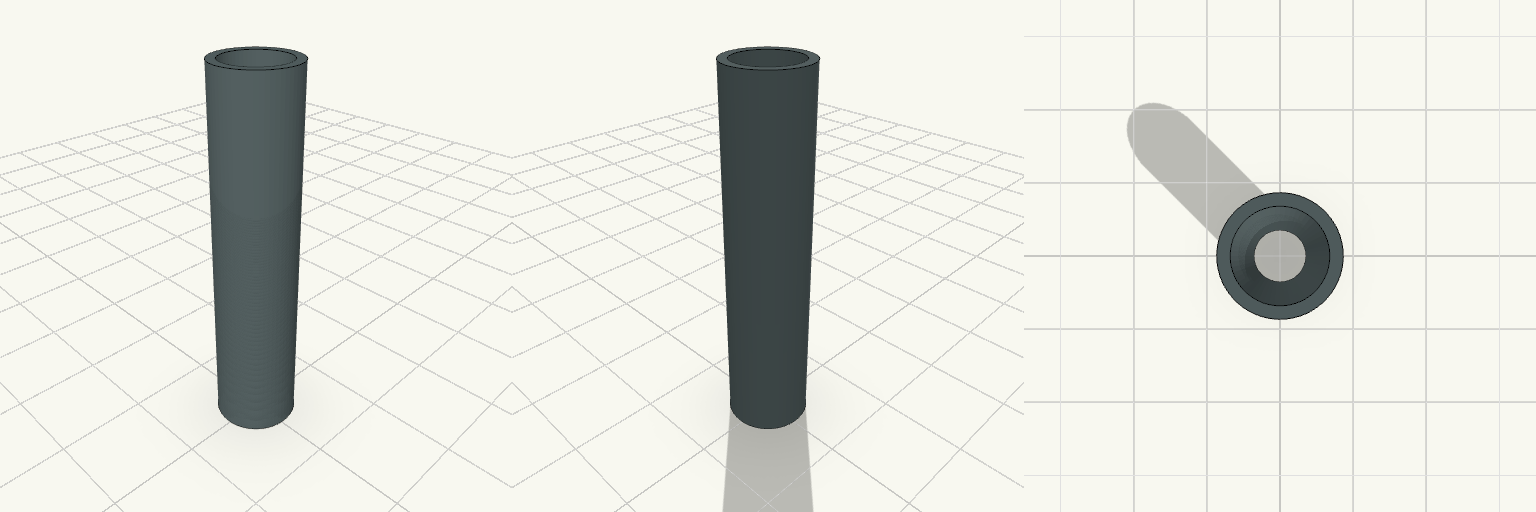

7.1mm Bore Spacer Tube
Plain sleeve with a 9mm outer diameter and a 7.1mm through-bore. Length: 40mm Wall thickness: 0.95mm Measure the shaft or bolt this is going over before you run it. 7.1mm is a specific inside dimension, and FDM shrinkage usually eats a fraction of a millimeter on inner bores. With only a 0.95mm wall, there's not much material left to drill out if it runs tight.

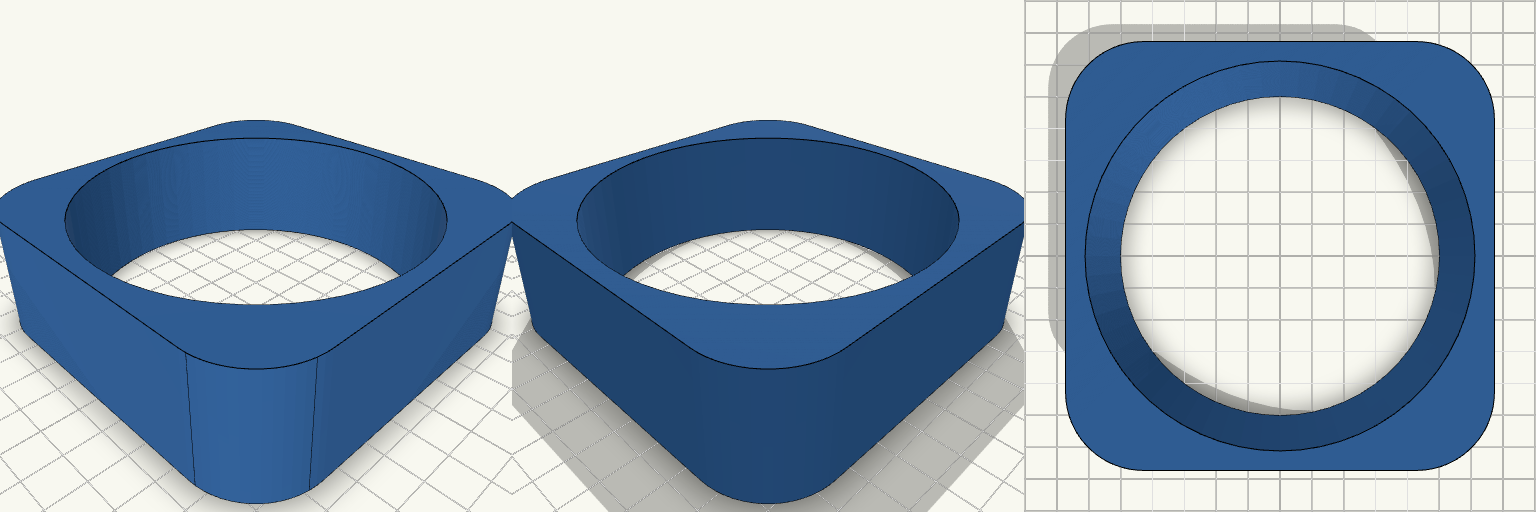

Rounded Square Mounting Plate
