v1 Servo-Release Cable Lock with Servo Arm
Created today
Description

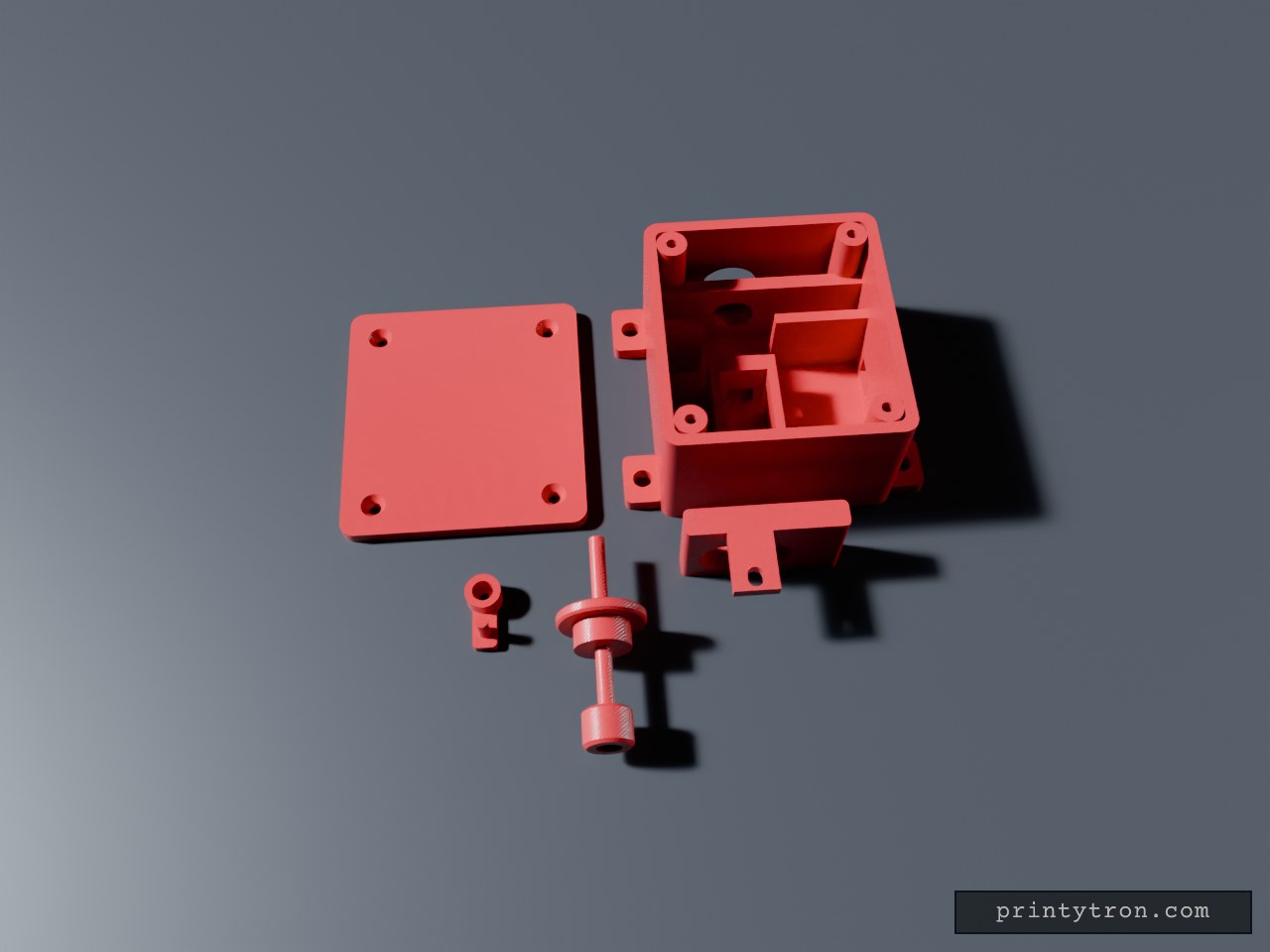

Servo-operated cable lock for a paddleboard rental system. A printed servo arm fixes to the servo shaft with a top-mounted screw and drives a sliding keyhole plate that releases the cable terminal.
- Parts: housing, service cover, release slide, one-piece cable unit, servo arm
- Servo arm: 9 mm hub with a 5.2 mm shaft socket, M2 screw hole and head recess on top
- Arm reach: 9.5 mm drive pin radius, engaging the slide yoke slot
- Slide travel: 9 mm, spring-returned to locked
- Magnet: 6 x 3 mm coin magnet pockets in terminal tip and wall holder
- Print: PETG or ASA, 4+ walls, arm printed hub-up
- Not load-tested; prototype grade
