Appendiabiti a Traliccio 32mm
Created today
Description
Appendiabiti rigido a parete stampabile in 3D. Disegnato con un profilo sagomato per ridurre il consumo di filamento mantenendo un'elevata resistenza al carico.
- Interasse: 32 mm esatti.
- Fori: 3,2 mm (per viti da 3 mm), con svasature da 4,5 mm posizionate a profondità fissa.
- Accessibilità: tunnel orizzontali da 8,5 mm per inserire agilmente vite e cacciavite.
- Orientamento: Da stampare rigorosamente coricato sul fianco per sfruttare la direzione dei layer.
Images
More like this
Explore more in Home & Fixtures →
Scandi Flared Coat Hook
What it's for A minimalist, Scandinavian-inspired wall hook for coats, bags, or towels. The flared cap prevents items from slipping off while maintaining a soft, continuous profile. It mounts using a single countersunk screw through the center, with a deep counterbore that allows the screw head to sit well below the surface—ready to be left exposed or covered with a standard 9.5mm wooden plug. Dimensions Length: 63 mm from the wall. Diameters: 22 mm at the wall base, tapering to 16 mm at the neck, and flaring to a 38 mm cap. Hardware: 5 mm through-hole with a 9.5 mm counterbore (suits a standard #8 or #10 wood screw). Print notes The flare angle is kept under 45 degrees, meaning this prints cleanly standing straight up on its base without any supports. If you want a smoother finish on the front face, you can flip it 180 degrees in your slicer and print it face-down (the chamfers and rounding will print perfectly either way).
Straight Cylindrical Pipe
A straight cylindrical pipe with a uniform wall thickness, designed for fluid transfer, structure, or sleeving. Inner Diameter: 60 mm Outer Diameter: 64 mm Wall Thickness: 2 mm Overall Length: 60 mm

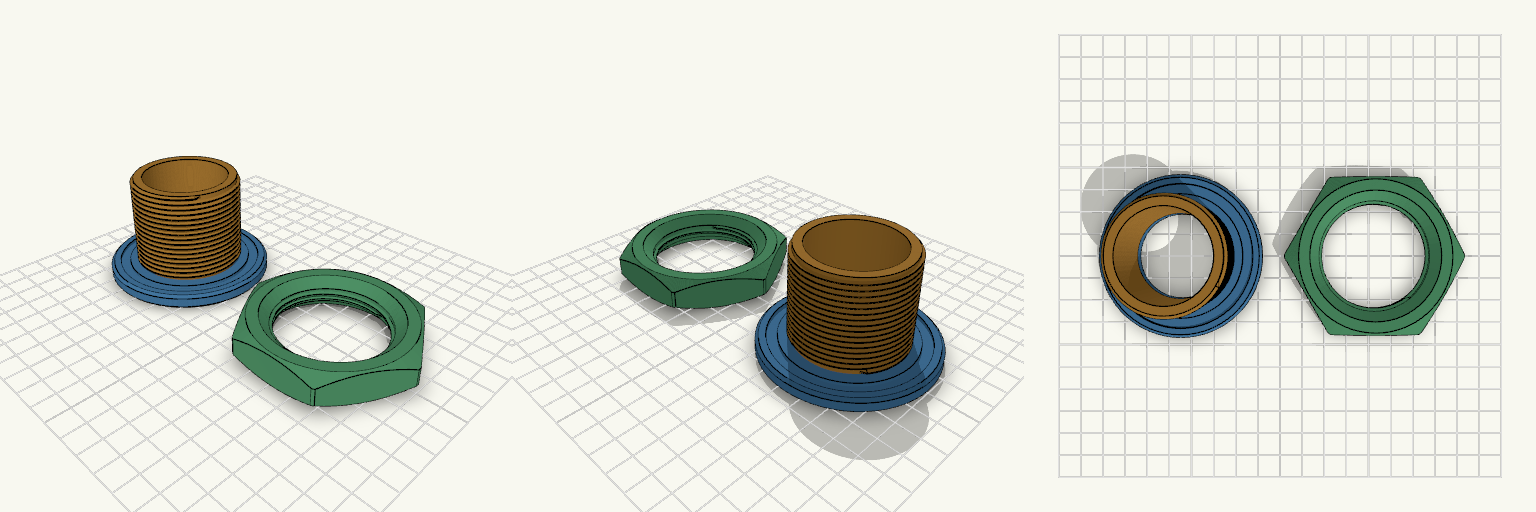

Tank Tap Bulkhead Fitting 1 1/2" BSP
