Ballasted Tomato Planter With Cage

Made by EvilStark

Created 1 months ago

Home & Fixturesplantertomato-potplant-potintegrated-saucertomato-cagegardeningbotanical
Remix this model →

Description

Dwarf tomato plants inevitably turn into top-heavy messes that tip over their cheap nursery pots, and generic wire cages never quite fit the rim. This solves both.

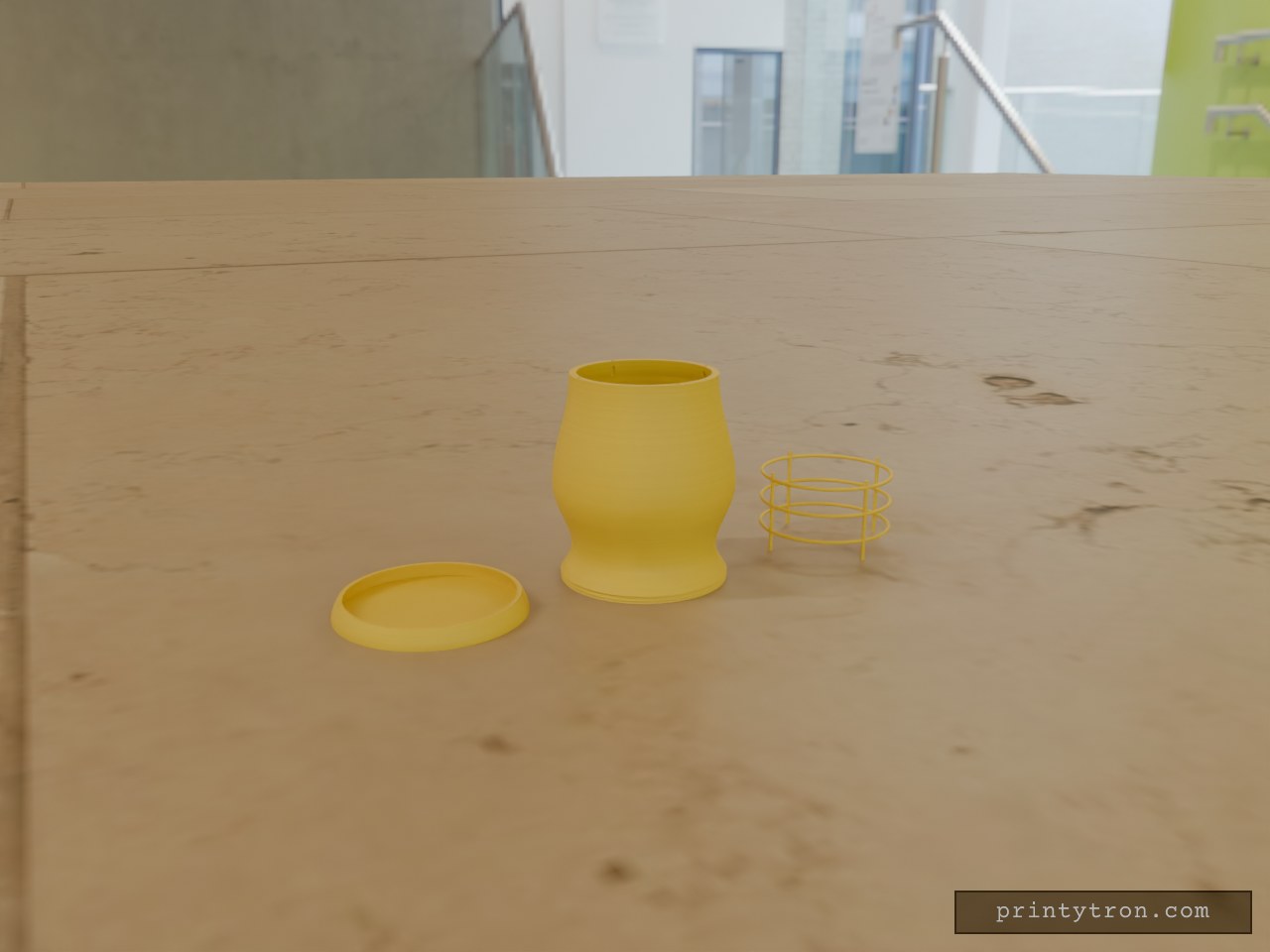

A heavy-bottomed, 12-inch tall planter shaped specifically to keep a top-heavy plant grounded. The wide 10-inch base drops into an 8-inch waist before swelling back out to give the root ball room, ending in an 8-inch mouth. The bottom inch detaches as a flush-fit drainage saucer, while the rim features deep, built-in sockets. The included custom cage drops directly into those sockets for a rigid 4-inch scaffold that won't slide sideways in the dirt.

Sizing & Assembly

  • Total Volume: ~3.2 gallons.
  • Clearances: 0.5mm slip-fit for the saucer joint, 1mm clearance for the cage legs dropping into the rim.
  • Layout: The pot, saucer, and cage are laid out side-by-side. The pot requires a 300x300mm class Z-axis to print at its intended 12-inch scale.

Photos

Technical views
