Canyon Aeroad Varia Halterung (16.5°)
Created today
Description
Eine aerodynamische Halterung für ein Garmin Varia Radar, passend für die SP0077-Sattelstütze des Canyon Aeroad (Modelljahr 2025).
- 16,5° Ausgleichswinkel: Gleicht die Neigung der Sattelstütze exakt aus, sodass das Radar waagerecht nach hinten abstrahlt.
- Minimalistisches Design: Schlanker Loft von der 14 mm breiten Stützenaufnahme auf den 33 mm Garmin-Puck.
- Direktmontage: Nutzt die vorhandenen M4-Befestigungspunkte (22 mm Lochstich) am Rad.
- Kompatibel: 20 mm Lochstich für Standard-Garmin-Vierteldrehadapter (M3-Schrauben).
Images
More like this
Explore more in Automotive, RC & Hobby →
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope
0.355 to 0.370 Golf Ferrule
Custom transition ferrule designed to mate golf shafts with an adapting taper. Before printing, verify your shaft tip standard. This part spans from a 0.355-inch taper dimension to a 0.370-inch parallel dimension. Critical Measurements: Inner Bore (Bottom): 9.0 mm (0.355") Inner Bore (Top): 9.4 mm (0.370") Outer Diameter: 13.5 mm (0.530") constant Length: 22.0 mm (0.875") Does not fit standard parallel-only 0.370" shafts at the base without binding.

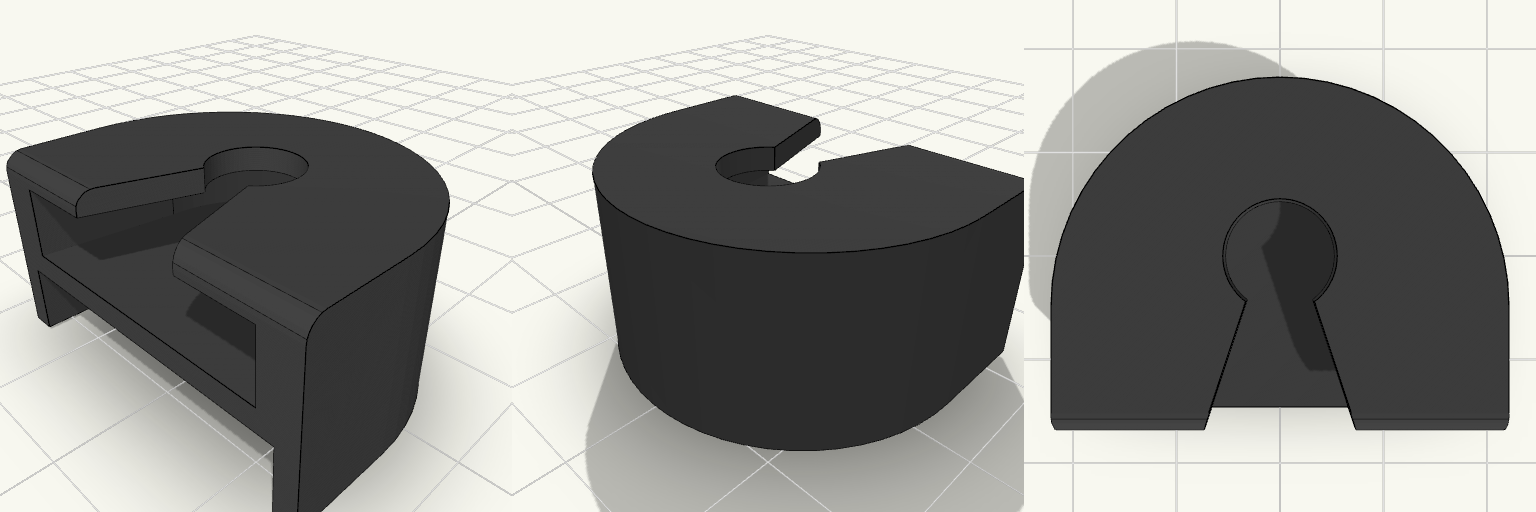

ClipBase — VW Door Mount
