Farrier Hoof Evener Ruler
Created today
Description
A modified 9-inch hoof evener ruler prototype tailored for farrier work. It maintains the 8-inch measuring capacity across two distinct scales while elongating the body to accommodate an extended central viewing window.
- Overall Footprint: 9 inches long by 1 inch wide, slimming down to a 1/4-inch thickness for a sleeker profile.
- Split Viewing Window: Extended observation windows clear right up to the ends, bridged by a 12mm central solid section to retain structural rigidity over the hoof.
- Dual Scales: The top edge features a conventional 0–8 inch scale, while the bottom scale starts at zero in the dead center and reads outward up to 4 inches in both directions.
- High Contrast Markings: Subdivisions down to 1/4 inch are raised 0.8mm off the surface, providing a robust, tactile read with heavily thickened strokes and widened typography.
Images
More like this
Explore more in Workshop & Tools →

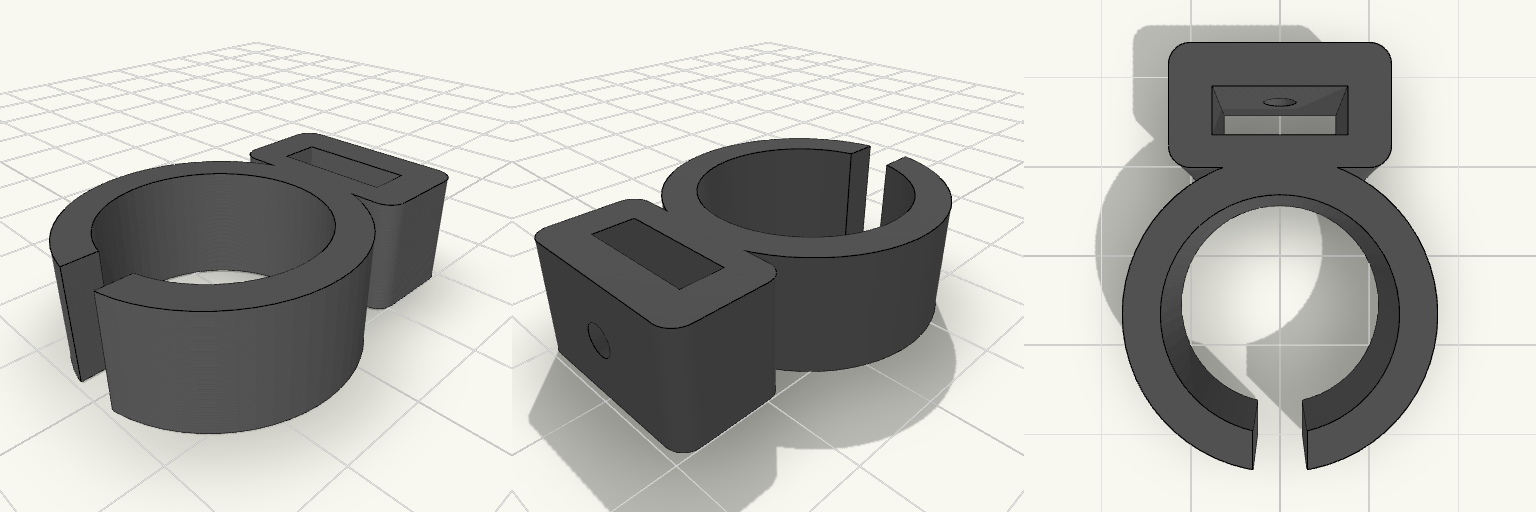

Hoof Evener Thumb Ring
A low-profile thumb ring designed to friction-fit onto the center support of a hoof-evener ruler. The ring is split to flex over a variety of thumb sizes while keeping the geometric center locked perfectly inline with the measurement zero-point. Remix Hooks Thumb clearance: Currently set to an inner diameter of 22mm. The 5mm split opening allows for expansion, but the base diameter is the first thing to dial in for a specific hand. Strut channel: The rear mounting slot is sized for a 12.5mm × 4.5mm vertical support. Adjust this block to match the actual sheet metal or printed strut of the evener. Locking hole: A 3.3mm pilot hole runs through the back wall. Drive an M4 set screw or short bolt through it if the friction fit over the strut needs extra bite.
Zauberstab Verschluss 2.0
Zweiteiliger, hohler zylindrischer Testkörper zur Prüfung von FDM-Toleranzen. Beide Teile verfügen über eine geschlossene Außenwand und schließen bündig ab. Feste Abmessungen: Außen 30.8 mm, Innen 21.8 mm Mindestwandstärke: 1.5 mm im kritischen Bereich der Nuten Mechanismus: Bajonettverschluss mit Arretierungsnocke gegen unbeabsichtigtes Öffnen Druckbar: Ohne Stützstrukturen, flach auf dem Druckbett positioniert
60mm OD Flanged 45° Pipe
60mm outer diameter flanged pipe with a 45-degree elbow. Features a continuous 56mm inner bore with a 2mm wall thickness. The 100mm OD flange is positioned exactly 30mm from the base and runs 3mm thick. Check your clamp or mating collar against the flange thickness and 100mm outer diameter. No mounting holes are drilled; this part is built for bonded or slip-fit assemblies where the 56mm internal passage must remain entirely unobstructed.
Magnetisk HR-Diagram Sæt
Hvad den bruges til Et komplet sæt magnetiske stjerner, spektralklasser og referencer til undervisning i astronomi, designet til at blive sat op på en tavle som et interaktivt HR-diagram (Hertzsprung-Russell). Dimensioner Stjerner: Ø 60 mm, 5 mm tykke (tekst hævet 1 mm). Spektralklasse-brikker: Ø 80 mm. Temperatur-rektangler: 70 × 30 mm. Luminositet-rektangler: 90 × 30 mm. Magnethuller: Alle brikker har plads til 5x2 mm magneter indstøbt med 0,4 mm bund under magneten, så de griber bedst muligt fat i tavlen. De brede rektangler har to huller for at undgå rotation. Printnoter Alle elementer er bygget i lag. Skift filamentfarve ved Z = 5 mm for at printe teksten i de tilhørende temperaturfarver (eller hvid for luminositeter) på de sorte baser. Magneterne indsættes under print, lige inden toppen af de indvendige huller lukkes.

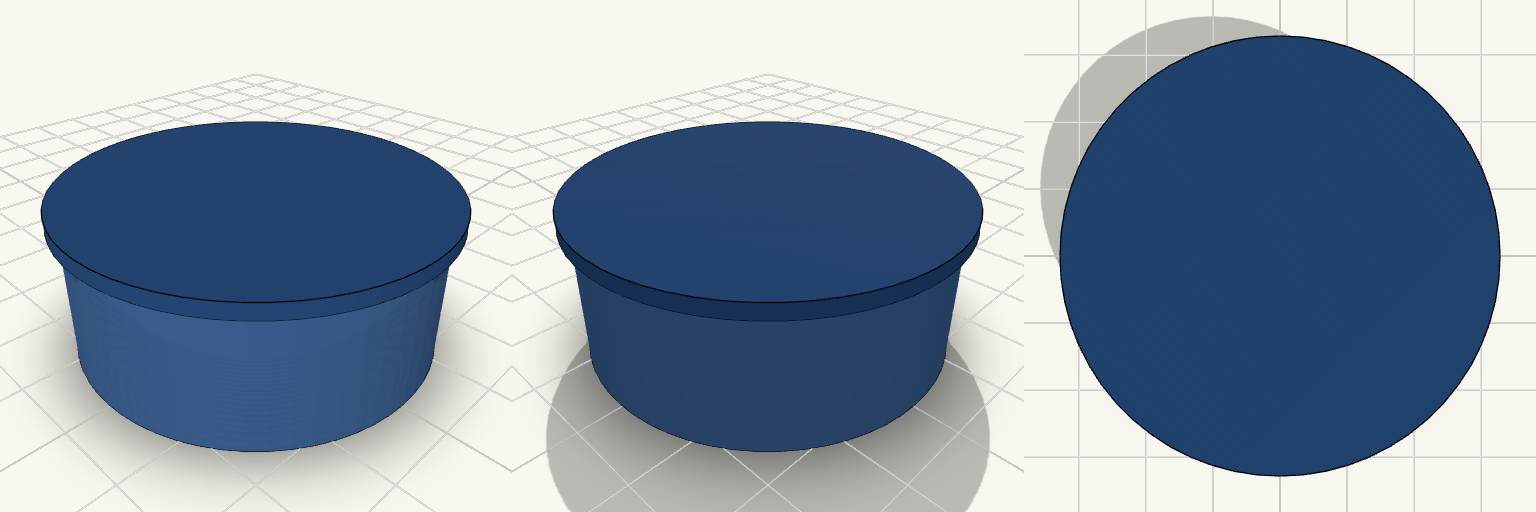

Friction-Fit Cylinder Bung
A utilitarian stopper milled down to exact measurements. The main barrel drops directly into the aperture, while a slight oversized collar keeps it from falling through. Design notes: Main body: 48.6 mm diameter (152.7 mm circumference) Collar lip: 51.2 mm diameter (160.8 mm circumference) Total height: 20 mm (18 mm body, 2 mm lip)

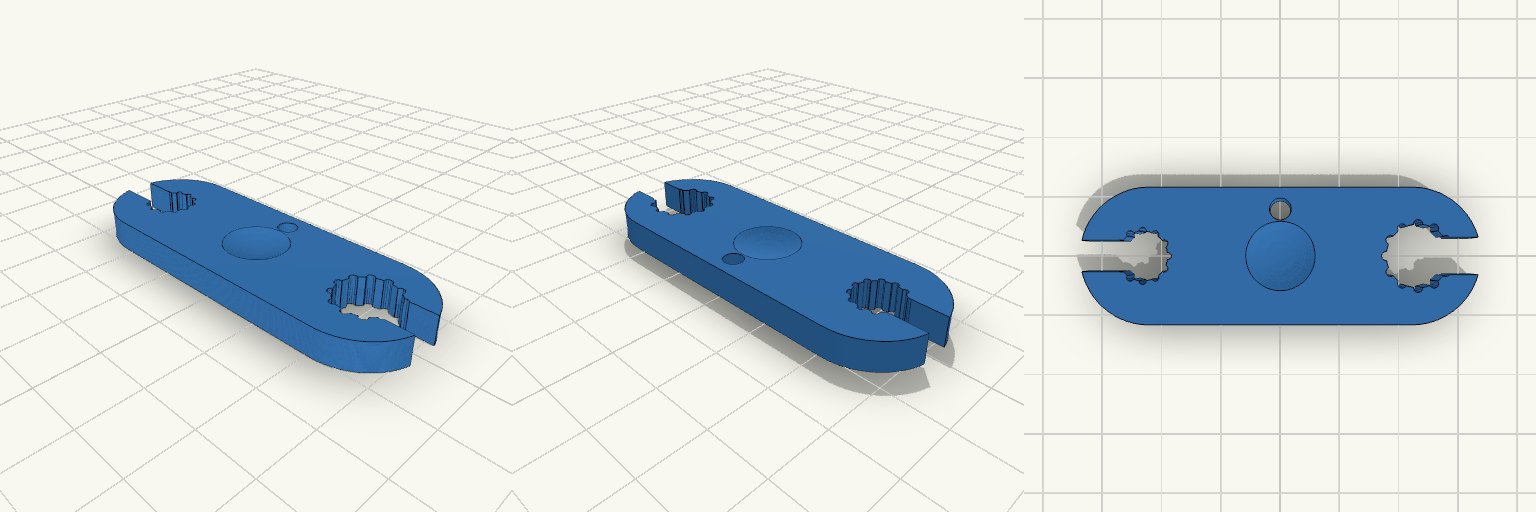

IV Central Line Wrench
