Flat-Profile Fingerboard Deck
Created 5 days ago
Description
A classic double-kicktail mini skateboard deck, sized for standard fingerboard hardware.
The baseline dimensions are a 100mm total length, 30mm width, and 2.5mm thickness, which hits the sweet spot for a standard grip feel. The mounting pattern drops right onto standard 32mm fingerboard trucks.
Remixing Parameters
If you take this into CAD to build your own pro-model, the key geometry hooks are:
- Kick Angle: Currently pitched at 22 degrees for a medium-high pop.
- Wheelbase: The truck centers sit 52mm apart.
- Concave: This base version is entirely flat across the width to print beautifully face-down without supports. Add a subtractive cylindrical sweep across the top face if you want real side-to-side concave.
Images
More like this
Explore more in Automotive, RC & Hobby →

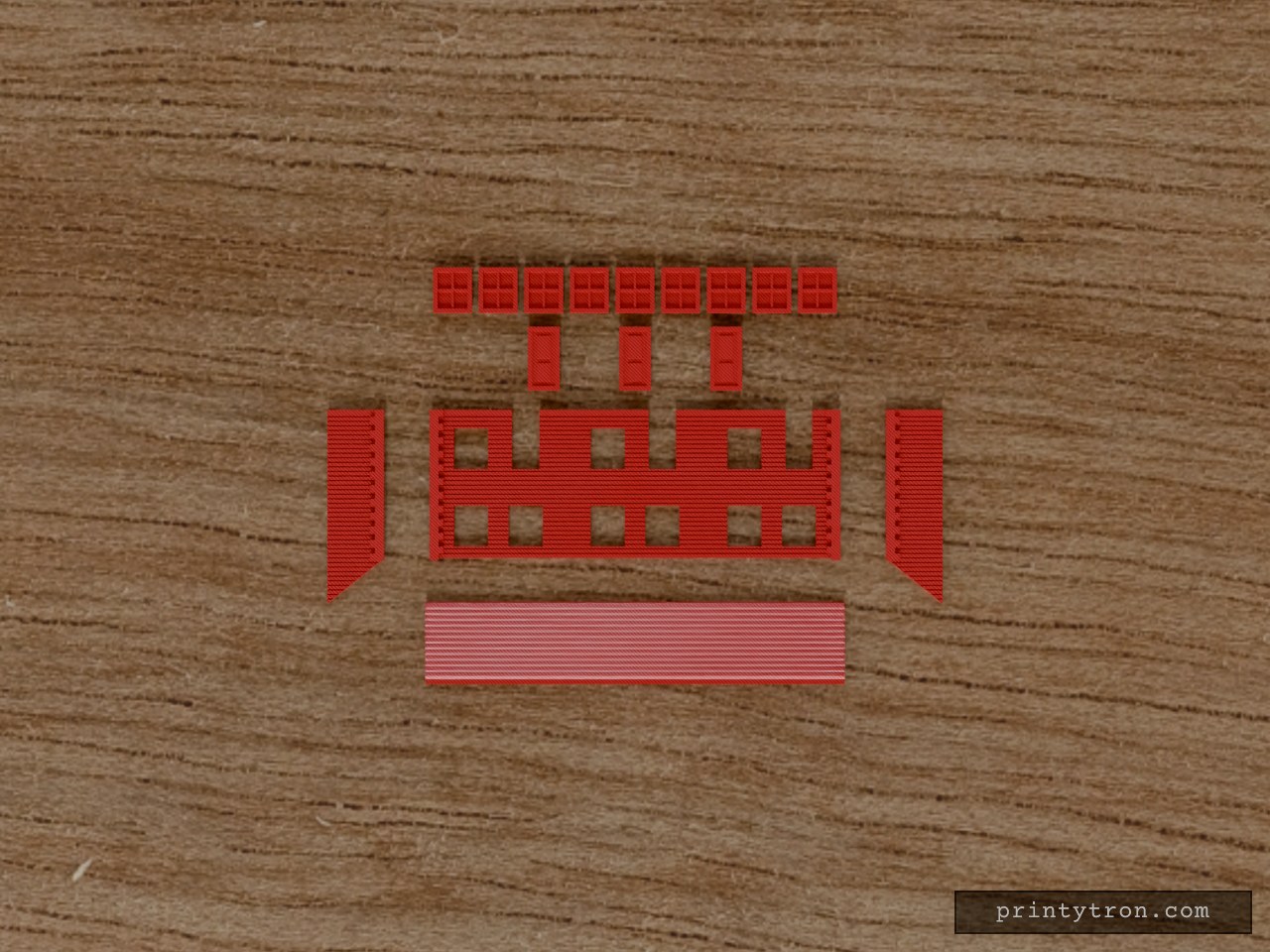

OO Scale Terrace Houses Half Relief Flat Pack
