Funfair Swing Ride with Crank, 100 mm Base
Created today
Remixed once
Description
Funfair swing ride with a hand crank on top. Turning the crank spins the canopy and seat ring around a fixed central pin, and each of the six seats hangs from a captive ball joint so it swings outward as the ride turns.
- Base: 100 x 100 x 6 mm plate with a 30 mm column and 14 mm mast
- Spinning top: 70 mm seat ring and cone canopy on a 8 mm pin, 0.3 mm bearing clearance
- Seats: six, each on a 7 mm captive ball with a 3 mm rod, printed in place
- Crank: 30 mm arm with a 7 mm handle on top of the canopy
- Print in place, no supports needed for the base; the ring cavities bridge over the balls
- Overall height about 112 mm
Images
More like this
Explore more in Decor & Display →
Placa Radassa Pacifico, Base Reta
Placa orgânica com o nome "Radassa" em alto relevo, fonte Pacifico, e base reta para apoio. Medidas a conferir Placa: cerca de 110 × 35 mm, 3 mm de espessura. Relevo do nome: 3 mm acima da placa. Base reta em Y = -15 mm, com apenas 3 mm de espessura; sozinha, a placa tende a tombar. Use um suporte ou apoio. Não inclui Furos de fixação. Borboletas.
Street Lamp Base with Domed Foot
A miniature street lamp base for a 1:64 diorama. A domed foot with a flat 7.2 mm bottom rises into a straight 5.5 mm shaft, 10 mm tall overall, with a centred 2 mm through-hole. Height: 10 mm Shaft diameter: 5.5 mm Foot diameter at the flat bottom: 7.2 mm Dome height: 6 mm Through-hole: 2 mm, fully open One solid body with a flat bottom, no decoration
Baby Dragon Figurine, 64x80 mm Base
A baby dragon figurine on a flat 64 x 80 mm base plate, built as one solid piece for FDM printing. Fit and print notes Four short legs, rounded body, small horns, tiny wings and a thick curved tail, all fused to the body. Check before printing: the bed must take about 64 x 80 mm. Prints without supports on its flat base in most cases. The horns and the wing tips are the only overhangs. Not scaled for any particular display stand or holder.
Advent Calendar With 24 Drawers
Advent calendar drawers that stick, fuse, or have nothing to grab. Each of the 24 drawers has a rounded finger grip on the front, a numbered face, and 0.5 mm clearance all round, so it slides out freely after printing in place. Key numbers Footprint: 177.5 × 157.5 mm (fits a 180 × 180 mm bed) Height: about 49.9 mm including grips Layout: 4 columns × 6 rows, printed lying on its back, front facing up Drawer interior: 38.5 × 22 × 42.5 mm Walls: 1.5 mm; grips 8 × 5 mm, 2.5 mm proud Print: white PLA, 0.4 mm nozzle, no supports inside the drawers; the drawer back walls hover 0.4 mm above the frame back, so expect a thin first-layer bridge
Soporte de tarjetas con estrella grabada
Bloque rectangular con una ranura central para tarjetas y una estrella de cuatro puntas con lados curvos, grabada hacia el interior de la cara frontal. Bloque de 115 x 25 x 20 mm con bordes achaflanados Ranura de 4 mm de ancho y 10 mm de profundidad, de extremo a extremo Estrella curva de 16 mm de punta a punta, hundida 1,5 mm y centrada en la cara frontal Se imprime sin soportes apoyada sobre su base

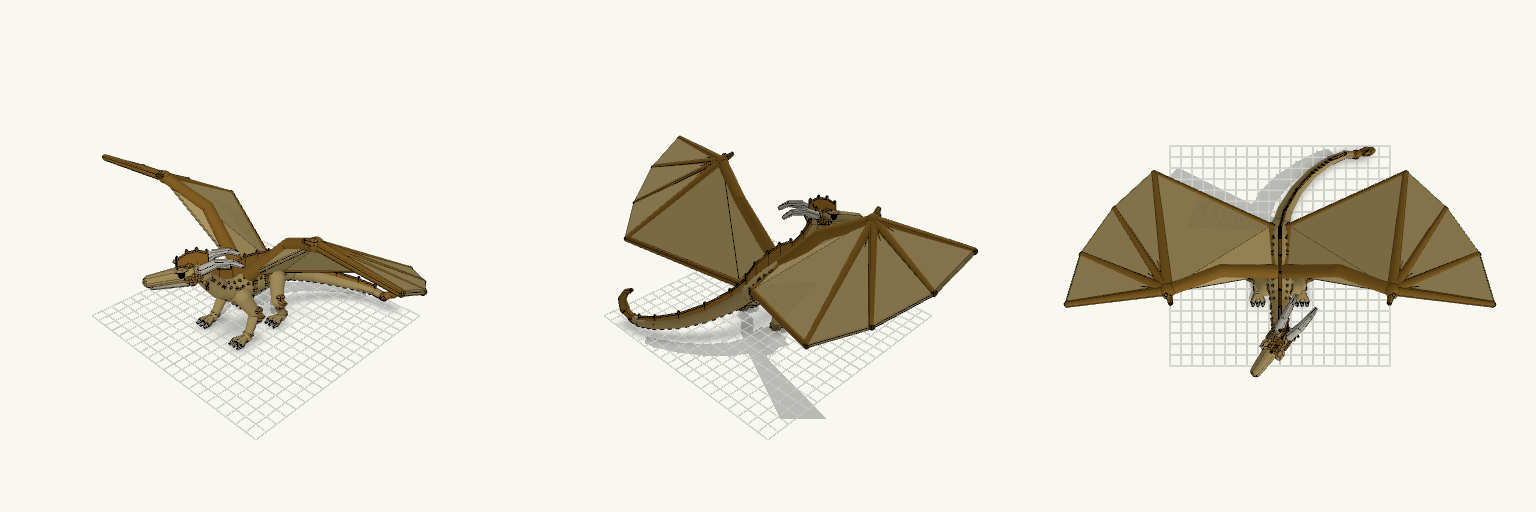

Male SandWing Dragon with Spread Wings
