GritHouse — Five-Slot Sandpaper Rack
Created today
Description
GritHouse is a bench-top sorting rack that gives every grit of sandpaper its own slot, so a 400 never gets pulled out when a 40 was the target. Five upright slots hold quarter-sheets, and each slot has a front tab with its grit number embossed in raised, easy-to-read digits: 80, 120, 180, 240 and 400, left to right. A tall back wall keeps sheets standing, while the lower front tabs leave room to grip a sheet and pull it out.
Features
- Five slots, each 25 mm wide and 120 mm deep, sized for quarter-sheets
- Embossed grit labels on the front tabs: 80, 120, 180, 240, 400
- Back wall 95 mm tall, front tabs 55 mm tall for easy grabbing
- Finger scoops cut into the front of each slot
- Chamfered outer edges for a cleaner print
- Two colour regions: the rack body and the front tabs with numbers
Dimensions
- Overall: about 139 × 126 × 95 mm (W × D × H)
- Slot interior: 25 × 120 mm
- Divider and outer wall thickness: 2.4 mm
- Floor thickness: 3 mm
Print notes
- Prints upright on its base with no supports needed for the main body.
- Raised numbers face forward; a 0.2 mm layer height keeps the digits crisp.
- Use a contrasting filament for the tabs to make the grit numbers stand out.
Images
More like this
Explore more in Workshop & Tools →
Funnelpour — Screw Sorting Tray
Funnelpour is a shallow sorting tray built for one job: tip a handful of loose screws in, pick out what you need, then pour the rest back into the jar without scattering them across the bench. The floor slopes toward a single open spout in one corner, and the walls taper inward to funnel everything into a 20 mm pour opening. Features Sloped floor: about 8 mm thick at the far end, falling to 2 mm at the spout, so screws roll toward the pour edge. Funnelled walls: the back-right wall angles inward from the main body down to the spout. Open spout: a 20 mm wide opening with no lip, sized to feed a jar mouth. Wall height: 20 mm walls with 2 mm wall thickness keep screws contained while sorting. Dimensions Overall footprint: 120 × 90 mm Height: 20 mm Spout width: 20 mm Print notes Prints flat on the base with no supports needed. The slope runs along the length rather than diagonally, so a slight tilt of the tray helps clear the far back corner when pouring.
Apothecary Drawer Hex Key Rack
A row of nine upright hex pockets, like a pharmacist's labelled vial rack, scaled down for the workshop wall. Each long-arm Allen key stands in its own slot, sorted from 1.5 mm up to 10 mm, with the metric size embossed on the front face beside it so the right key is readable at a glance. Every pocket is a hex cut to its key's across-flats size plus 0.3 mm of clearance, 22 mm deep, so keys drop in and lift out without wobbling loose. Two counterbored screw holes near the ends let the rack mount flat to a wall. Design notes Fits the standard metric set: 1.5, 2, 2.5, 3, 4, 5, 6, 8 and 10 mm Overall size about 120 mm wide, 20 mm deep, 30 mm tall Embossed labels are a separate colour region for multi-colour prints or a filament swap Chamfered outer edges for a cleaner print and a softer look The 1.5 mm slot is the tightest fit, so check it on a first print Remix hooks: change pocket depth, enlarge the label text, or add more slots for imperial sizes
Drill Press Column Tray with Key Slot
A C-shaped clip that snaps around a 60 mm drill press column, with a 120 mm round dished tray attached at the front. The tray holds drill bits, chuck keys and small parts within reach while you work. The clip opening is narrower than the column, so it snaps on and grips by spring tension. Lead-in lips on both sides of the opening guide it onto the column. A slot on the front rim of the tray holds the chuck key, so it stays off the floor. Clip: fits a 60 mm column, 30 mm tall, 5 mm wall Tray: 120 mm diameter, 18 mm tall, with a 3 mm floor and a dished cavity Key slot: on the front rim, 9 mm wide, sized for a chuck key shaft Print the clip upright with the tray on the plate. PETG or ABS gives the clip better flex and durability than PLA.
Tape Spindle and Zip Tie Bench Caddy
Bench caddy that keeps a tape roll and a bundle of zip ties in one fixed spot on the bench. A 24 mm spindle holds a roll with a 25 mm core. A serrated tear bar runs along the front edge so tape can be pulled across the teeth and torn. A block on the right has three slots for zip ties up to 90 mm long. Specs Base: 150 × 100 × 5 mm plate with 1.5 mm chamfered edges Spindle: 24 mm diameter, about 46 mm tall, with a 34 mm foot and a 30 mm top flange. Sized for a 25 mm core with 1 mm clearance. Tear bar: 70 mm long, 4 mm thick wall with 14 serrated teeth. It sits along the front (-Y) edge, beside the spindle. Tie trough: 34 × 100 mm block, 28 mm tall, with three 6 mm wide slots, each 90 mm long, in a row across X. Overall height: about 54 mm, measured at the top of the spindle flange. Material: PLA or PETG. Print flat on the base with no supports. Notes Fit has not been tested against a physical roll. If the roll is tight on the spindle, reduce the spindle diameter slightly. Slot width suits standard narrow zip ties. Wider ties need wider slots.

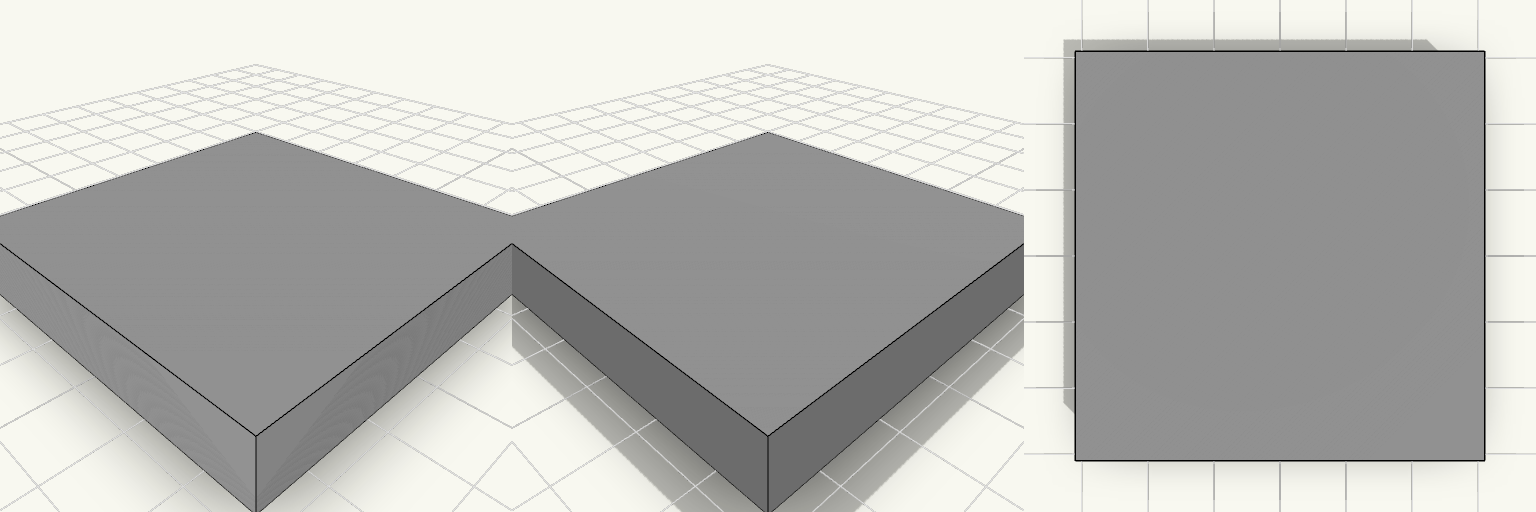

Plain Square Block
