Homelab Split 1U Rackmount
Created 1 months ago
Description
This is a 1U rackmount adapter specifically sized to hold a TP-Link ER605 router and an OC200 hardware controller side-by-side.
Because standard 19" rack widths don't fit on everyday print beds, the mount is split down the middle into two halves that lock together with a snug puzzle-piece joint. The devices slide directly into the support sleeves from the front.
Design notes
- Sleeve design: The open-topped rear trays print natively without supports when the faceplate is laid flat on the bed.
- Tolerances: The center dovetail includes a 0.2mm clearance to ensure the two halves slide together cleanly right off the plate.
- Mounting: Standard 1U oval slots give a bit of wiggle room for cage nuts.
Images
More like this
Explore more in Desk & Tech →
Pi 3 case
A bare Raspberry Pi 3 is so light that hooking up a standard HDMI cable instantly tips it off the desk. This case locks the board into a heavy enclosure and uses snap-on outer corner bumpers to give it some actual grip, so the board stays exactly where you put it. The port cutouts are oversized enough to accept real molded cables without them binding against the shell. Bed Fit: Everything is packed tightly to fit in a single run on a 180×180 mm print bed. Printing: All pieces sit flat on the plate. No supports required anywhere. Clearances: Built with a 0.4 mm gap around the board and lid joint so it slots together cleanly.

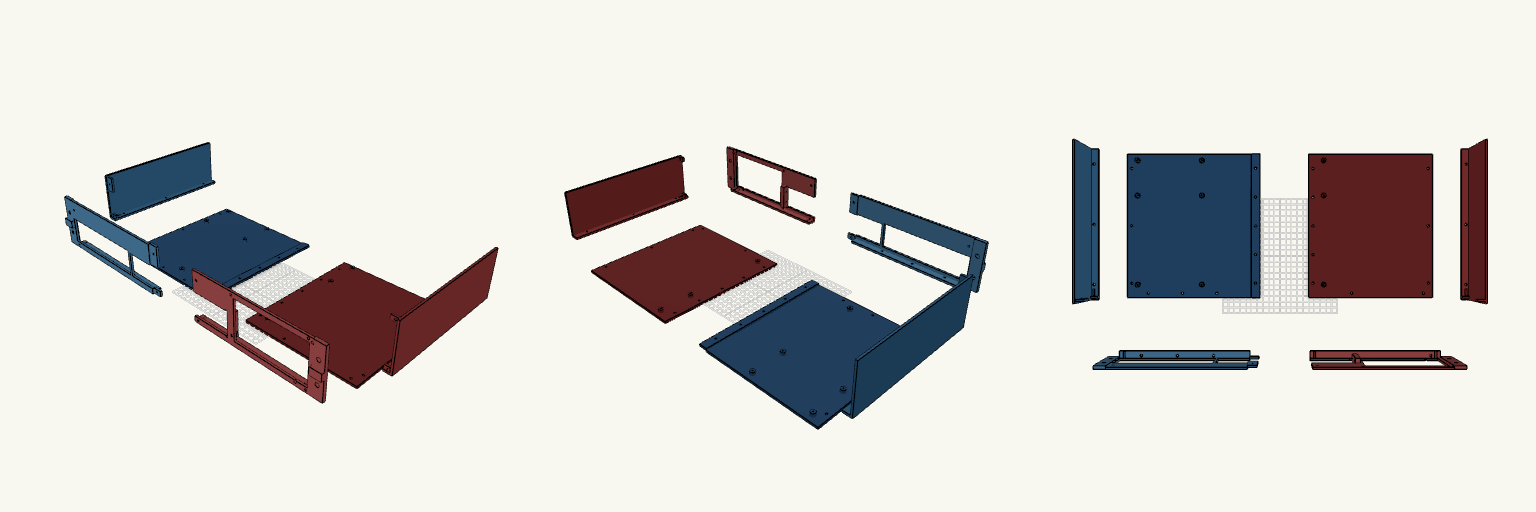

2U Micro-ATX Split Rack Chassis
