Hoof Evener Thumb Ring
Created today
Description
A low-profile thumb ring designed to friction-fit onto the center support of a hoof-evener ruler. The ring is split to flex over a variety of thumb sizes while keeping the geometric center locked perfectly inline with the measurement zero-point.
Remix Hooks
- Thumb clearance: Currently set to an inner diameter of 22mm. The 5mm split opening allows for expansion, but the base diameter is the first thing to dial in for a specific hand.
- Strut channel: The rear mounting slot is sized for a 12.5mm × 4.5mm vertical support. Adjust this block to match the actual sheet metal or printed strut of the evener.
- Locking hole: A 3.3mm pilot hole runs through the back wall. Drive an M4 set screw or short bolt through it if the friction fit over the strut needs extra bite.
Images
More like this
Explore more in Workshop & Tools →

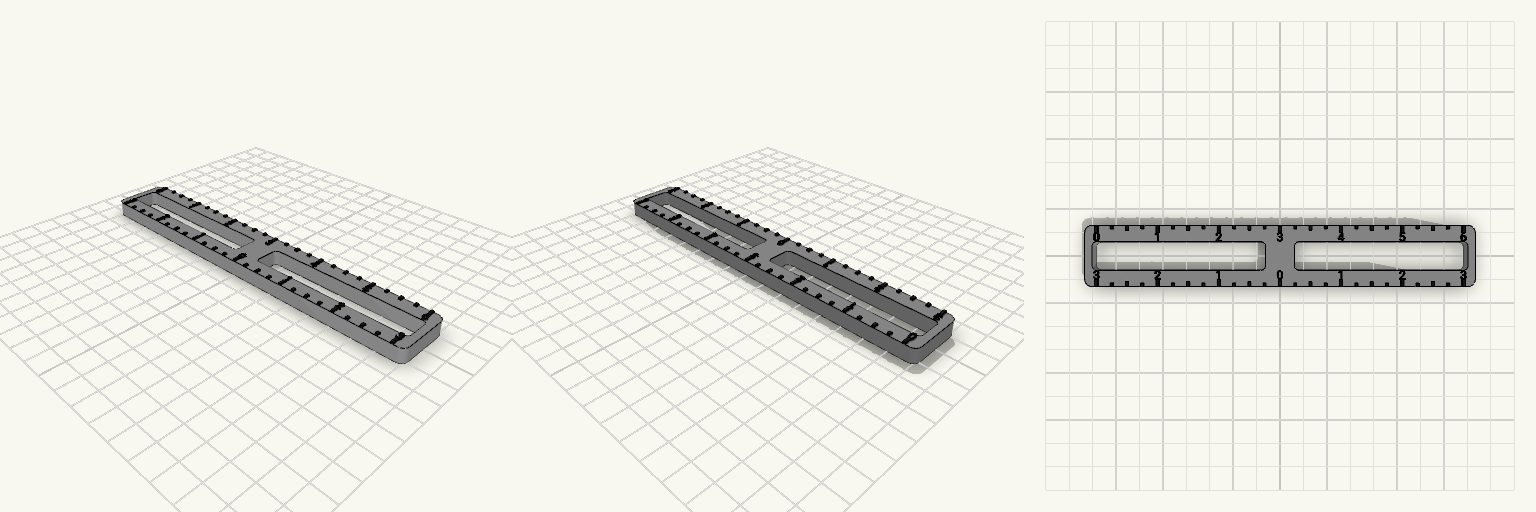

Farrier Hoof Evener Ruler
