Industrial Pull Plate
Created today
Description
A heavy-duty mounting plate featuring an integrated pull tab and precise counterbored holes. Designed for easy handling and a flush fit with socket head hardware.
- Mounting Interface: 4x 4.3mm thru-holes with 6.5mm counterbores (4mm deep)
- Spacing: 72mm x 40mm pattern
- Convenience: Rounded 35mm pull tab with a 10mm grip hole
Images
More like this
Explore more in Workshop & Tools →

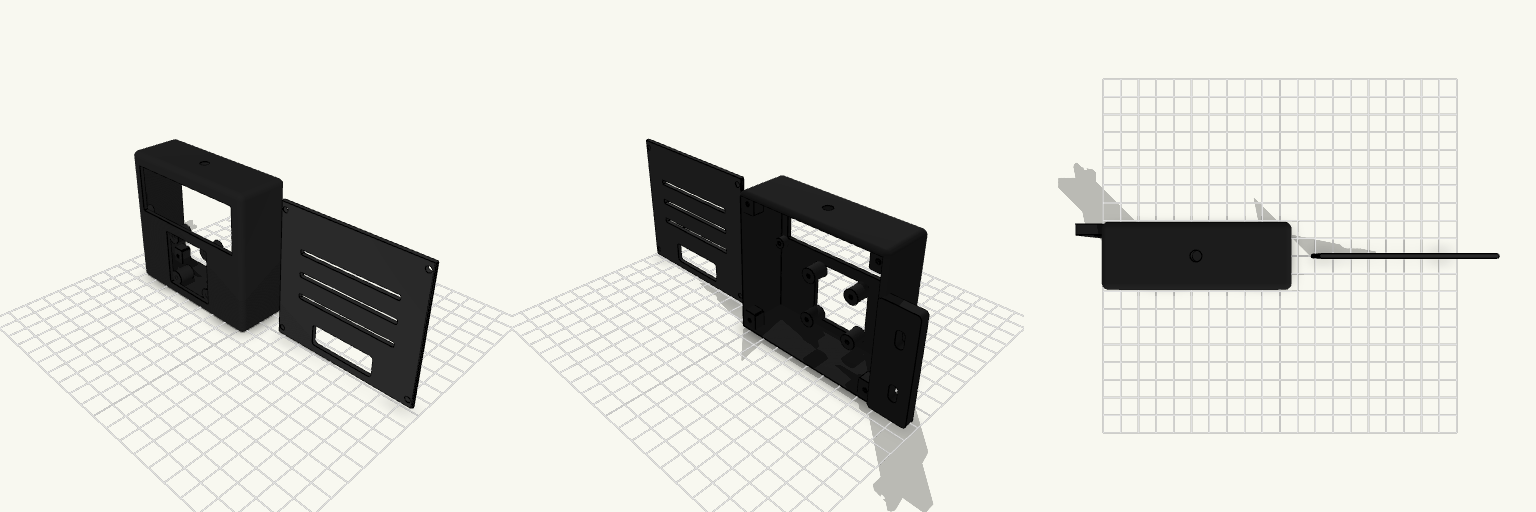

Klipper Telemetry Console
A compact enclosure for Klipper printer telemetry, mounting to standard 2040 extrusion. This version features revised back cover mounts that embed securely into the enclosure walls, ensuring robust assembly. Revised Mounts: Structural corner blocks anchor the back plate safely to the frame. Component Fits: Room for a 1602A LCD and 32x32mm MAX7219 matrix. Mounting: Flush side flange with M4 t-nut clearance.

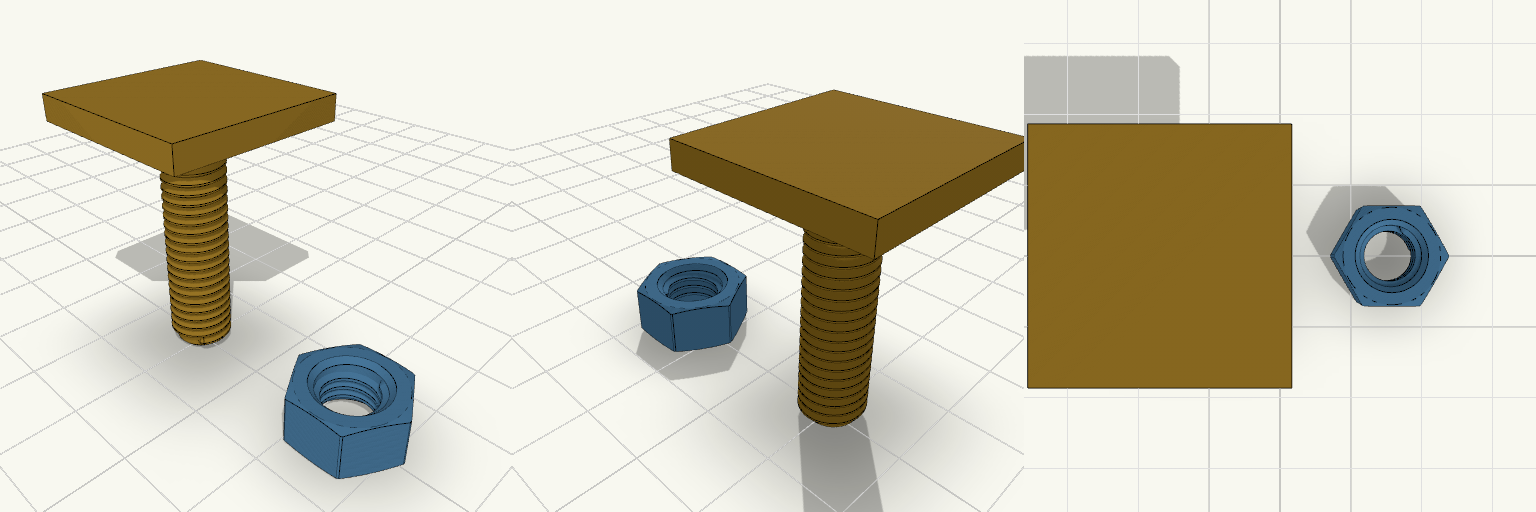

Bullone M8x30 Testa Quadrata e Dado
Bullone M8x30 con testa quadrata da 23 x 23 mm e spessore 3 mm, abbinato a un dado esagonale M8 con filettatura reale. I due pezzi si stampano separati. Gambo: M8, passo 1,25 mm, filettato per l'intera lunghezza di 30 mm Testa: quadrata 23 x 23 mm, spessore 3 mm Dado: M8, spessore 6,5 mm, 13 mm tra le facce Tolleranze: 6g per il bullone, 6H per il dado Stampa: testa del bullone appoggiata sul piano consigliata, dado con asse verticale
Interlocking Socket Organizer Board
Ein Organizer für Stecknüsse rutscht in der Schublade meist hin und her oder passt im Ganzen nicht auf das Druckerbett. Dieses Board bringt Ordnung in ein sehr umfangreiches Nuss-Sortiment (1/4", 3/8", 1/2" und E-Profil) und teilt sich nahtlos auf, um problemlos gedruckt zu werden. Druck und Montage Drei Teile: Das Board ist über Puzzle-Verbinder mit 0.25 mm Toleranz in drei Stücke à maximal 187 mm geteilt. Farbwechsel: Platte und Zapfen bleiben in der Datei als separate Teile deklariert, ideal für einen Farbwechsel beim Drucken (z. B. auf Z=3 mm). Kein Kleben: Die Teile rasten sauber ineinander ein. Sitzt ein Zapfen genau auf der Schnittkante, wird er mitgetrennt und die Nuss überbrückt später beim Aufstecken den Spalt.
dome 3
A plain flat disc in the spirit of an oversized washer or a vinyl-record blank: 3 inches across, 1/8 inch thick, with a clean 1 cm hole through the centre. Prints flat with no supports. Diameter: 76.2 mm (3 in) Thickness: 3.175 mm (1/8 in) Centre hole: 10 mm Good for spacers, coasters, templates, or as a base for other builds
160mm Square Base Plate
What it's for A simple, flat 160mm square plate, suitable as a foundational base, shim, or blank canvas for further structural modifications. Dimensions Width & Length: 160 mm x 160 mm Thickness: 4 mm Remix ideas Subtract precise mounting holes to use it as an electronics sled. Carve out a hex grid to create a lightweight mesh panel. Emboss or deboss a logo into the top face.

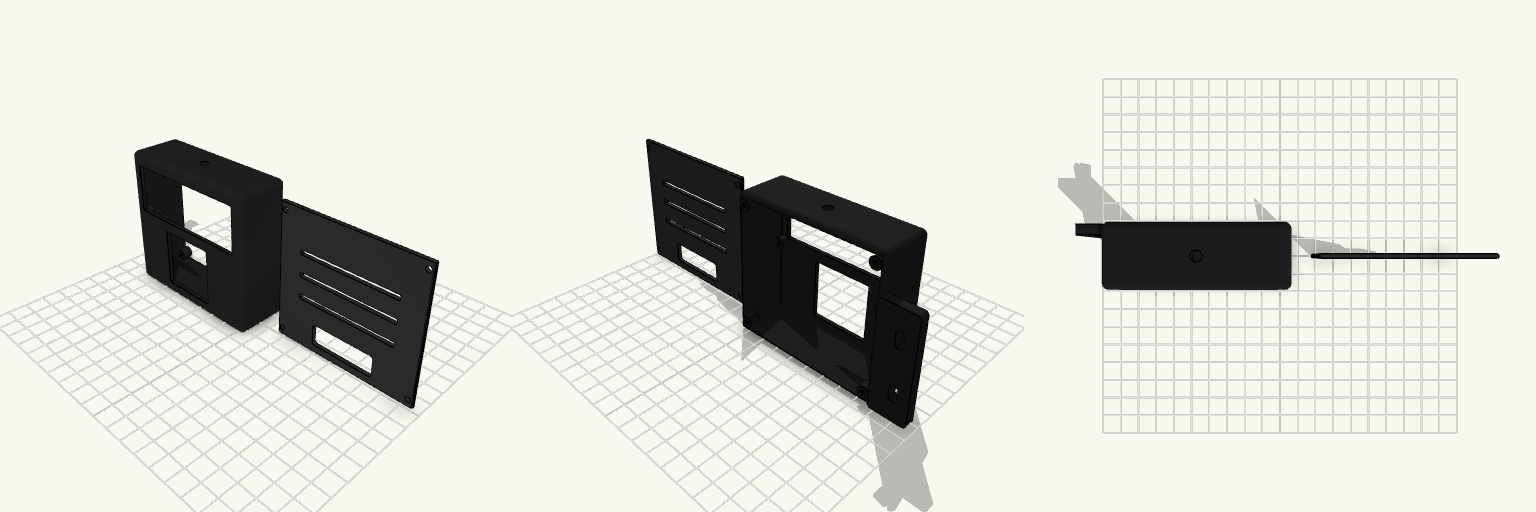

Klipper Display and Status Console
