Description
A dedicated rigid L-bracket for mounting an 18mm cylindrical proximity sensor, fully sized to fit standard E18-D80NK photoelectric switches. The assembly includes a mock-up of the sensor body and mounting nuts to verify clearances before printing.
- Sensor Bore: 18.6 mm (includes 0.6 mm clearance for thread pass-through).
- Mounting Pattern: Dual 4.5 mm base holes pitched at 24 mm.
- Component Clearance: Ample front/rear space to accommodate lock nuts and rear cable egress.
Images
More like this
Explore more in Workshop & Tools →
Tee-Spanner — Offset Bracket
A sturdy, precision-measured stepped T-bracket designed to join or space components on multiple planes. The solid central pillar provides a heavy-duty connection between the base plate and the cross piece. Dimensions Base Plate: 4.5" × 1" × 0.25" Cross Piece: 2.6" × 0.6" × 0.19" Overall Offset: 0.78" top-to-top (0.59" clearance between plates) Mounting Holes: 0.27" diameter, spaced 2" apart Features Stepped dual-plane geometry Print-ready filleted outer corners Heavy center union block for shear strength

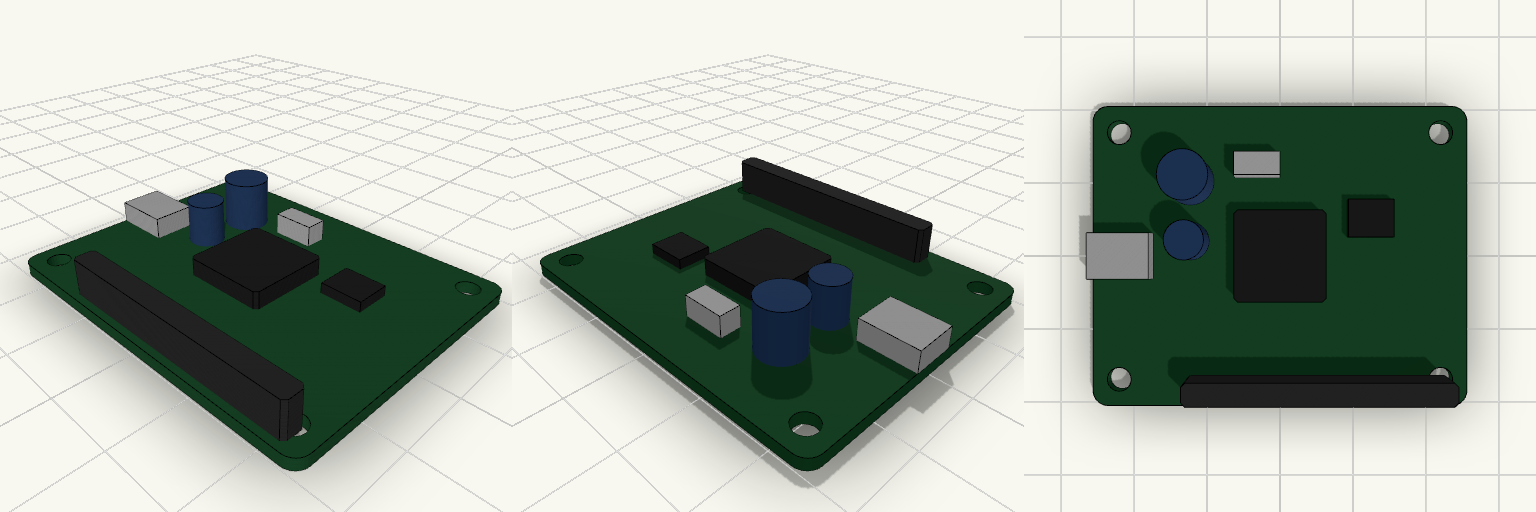

Microcontroller Dummy Board
A simplified 3D dummy model of a 50 × 40 mm microcontroller board. Use it as a physical stand-in to verify clearance, mounting layouts, and connector alignment before committing to a final enclosure design. Features and specifications: Dimensions: 50 mm length × 40 mm width × 1.6 mm board thickness. Mounting: Four 3.2 mm holes for M3 hardware, inset 3.5 mm from the corners. Clearance envelopes: Includes simplified block representations for a main IC, secondary IC, USB connector, power regulation components, and a row of IO headers.

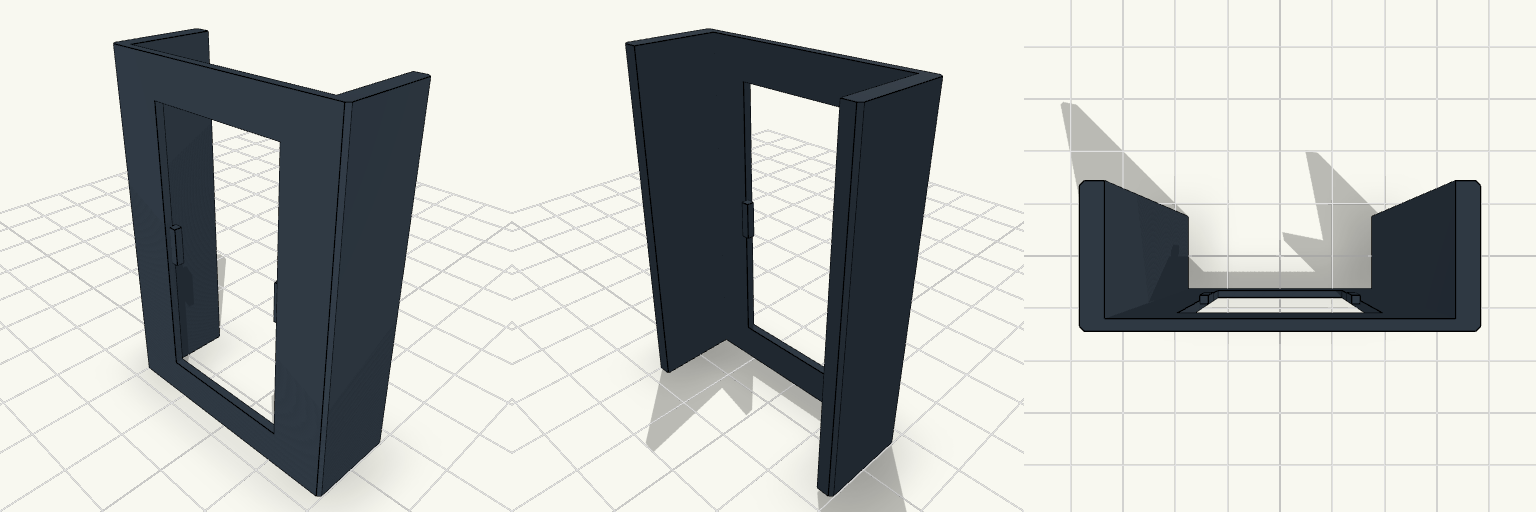

Matix Snap-Fit Test Frame
