Microcontroller Dummy Board
Created today
Description
A simplified 3D dummy model of a 50 × 40 mm microcontroller board. Use it as a physical stand-in to verify clearance, mounting layouts, and connector alignment before committing to a final enclosure design.
Features and specifications:
- Dimensions: 50 mm length × 40 mm width × 1.6 mm board thickness.
- Mounting: Four 3.2 mm holes for M3 hardware, inset 3.5 mm from the corners.
- Clearance envelopes: Includes simplified block representations for a main IC, secondary IC, USB connector, power regulation components, and a row of IO headers.
Images
More like this
Explore more in Workshop & Tools →
160mm Electronics Enclosure Unit
A two-piece industrial enclosure built for the SafeSuit Pro Worker Unit. Designed to house an ESP32, LoRa transceiver, and battery, with integrated cable management and hardware mounting points. The assembly uses a blind-screw design, pulling the cover tight against the base from the rear to leave the front face seamless. The cover includes an internal alignment lip for a rigid friction fit. Hardware Interfaces Internal Mounts: 4x posts for ESP32, 4x posts for LoRa module. Fasteners: Uses 4x M3 screws (inserted from the rear base). Control Cutouts: Recessed SOS button port (14mm bore), status LED port (4mm), lateral power switch slot, and right-side charging port. Cable Routing: Base features internal guide walls; cover features twin 7mm bottom-edge outlets for external sensor cabling.
Supervisor Electronics Shell
Generic hobby boxes crack at the screw posts the second time you open them, and their exposed hardware snags on everything in a bag. This is a clean, rugged shell that closes tight without external fasteners and keeps the wiring where it belongs. The front panel traps the alert button from the inside, so it can't be ripped out or jammed sideways. Internal Specs Dimensions: 120 × 75 × 35 mm external. Walls: 3 mm solid shell. Standoffs: Four integrated posts (2.5 mm bore) spaced for a standard ESP32 footprint. Clearance: 0.25 mm tolerance on the friction-fit lid lip. Print flat, no supports required.
IR Sensor

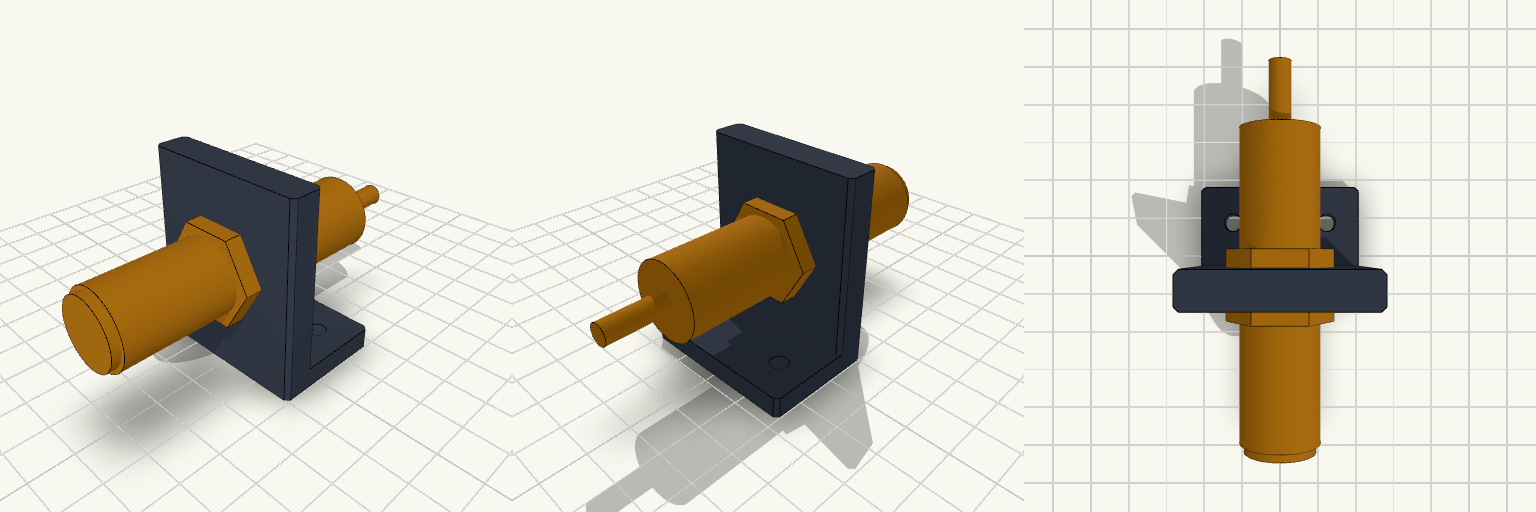

A dedicated rigid L-bracket for mounting an 18mm cylindrical proximity sensor, fully sized to fit standard E18-D80NK photoelectric switches. The assembly includes a mock-up of the sensor body and mounting nuts to verify clearances before printing. Sensor Bore: 18.6 mm (includes 0.6 mm clearance for thread pass-through). Mounting Pattern: Dual 4.5 mm base holes pitched at 24 mm. Component Clearance: Ample front/rear space to accommodate lock nuts and rear cable egress.
Matix Snap-Fit Test Frame
Un piccolo frammento della scatola principale, isolato e progettato per essere stampato velocemente. Serve per testare fisicamente l'inserimento e lo scatto del frutto BTicino Matix prima di impegnare ore nella stampa del pezzo completo. Orientamento fedele: Si stampa in verticale, in modo che le linee di livello (layer) e i ponti della fessura riproducano esattamente le condizioni della scatola finita. Fianchi rigidi: Il profilo a "C" impedisce alla parete di flettere quando premi l'interruttore. Risparmio: Pochi grammi di filamento per verificare le tolleranze di aggancio.
Tee-Spanner — Offset Bracket
A sturdy, precision-measured stepped T-bracket designed to join or space components on multiple planes. The solid central pillar provides a heavy-duty connection between the base plate and the cross piece. Dimensions Base Plate: 4.5" × 1" × 0.25" Cross Piece: 2.6" × 0.6" × 0.19" Overall Offset: 0.78" top-to-top (0.59" clearance between plates) Mounting Holes: 0.27" diameter, spaced 2" apart Features Stepped dual-plane geometry Print-ready filleted outer corners Heavy center union block for shear strength
Robust 3-Way Irrigation Manifold
A heavy-duty 1-to-3 splitter manifold designed for 5 mm ID irrigation hose. It prints completely flat on its base without supports, using teardrop-shaped mounting bosses to bridge the overhangs. To meet the structural requirement of 4 solid perimeters on a 5.4 mm outer barb, the internal channel strictly inside the hose stems necks down to 2.6 mm. Inside the thick bosses and the main manifold body, the passages open up to 5 mm and 7 mm respectively to minimize flow restriction. Remix Hooks Barb Spacing & Count: Adjust the port_solid() module to add more barbs or change the spacing for stiffer tubing. Port Layout: Expand the main body length and loop the for(x = ...) call to add 4, 5, or 6 outlets. Mounting: The flat rectangular body leaves plenty of room to cut countersunk screw holes if you need to hard-mount it to a rail or planter box.
