Miniature Tractor Tire With Separate Rim
Created today
Description
A miniature tractor front tire that stops the usual toy-wheel problem: thin tread that wears flat and a rim glued in place. This one has deep chevron lugs and a separate rim that presses in.
- Tire: 70 mm outer diameter, 40 mm wide, 44 mm bore, 14 zigzag lug pairs about 6 mm tall
- Rim: 43.6 mm barrel, 50 mm flange on one side, 10 mm axle hole
- Print: tire and rim as separate parts, flat on the bed, no supports needed for the rim; tire lugs print without supports
- Rim fits with 0.2 mm radial clearance
Images
More like this
Explore more in Automotive, RC & Hobby →
Captive Tire Deflator
A two-piece threaded cap and deflator button for standard Schrader valves, designed to bleed tire pressure without needing a separate tool. The hex-bodied cap threads securely onto the valve stem while housing a captive push-button mechanism. Assembly Drop-in fit: The plunger is designed to be dropped into the open bottom of the cap before threading it onto the tire. Captive design: Once screwed onto the valve, the tire stem itself traps the flange of the plunger against the ceiling of the cap, keeping it permanently secured. Print orientation: Both pieces sit completely flat on the build plate, needing no supports or brim to print cleanly.
25mm Tactical Tabletop Tokens
A complete set of nine 25mm wargaming tokens tailored for tabletop tracking. Designed with a clear separation between the base and the raised lettering, making them perfectly suited for a mid-print filament swap or a multi-material system. Specifications Dimensions: 25 mm diameter, 4 mm overall height. Tolerances: The raised text and outer rim sit exactly 1 mm above the base layer, creating a clean Z-height transition for color changes. Printability: No supports required. The bottom edges feature a 1 mm chamfer to prevent elephant-foot distortion on the first layer, ensuring the tokens remain perfectly circular and easy to pick up from flat tables. Layout: Arranged in a flat 3x3 grid for immediate batch printing. Can be split into individual models in the slicer if needed.
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed

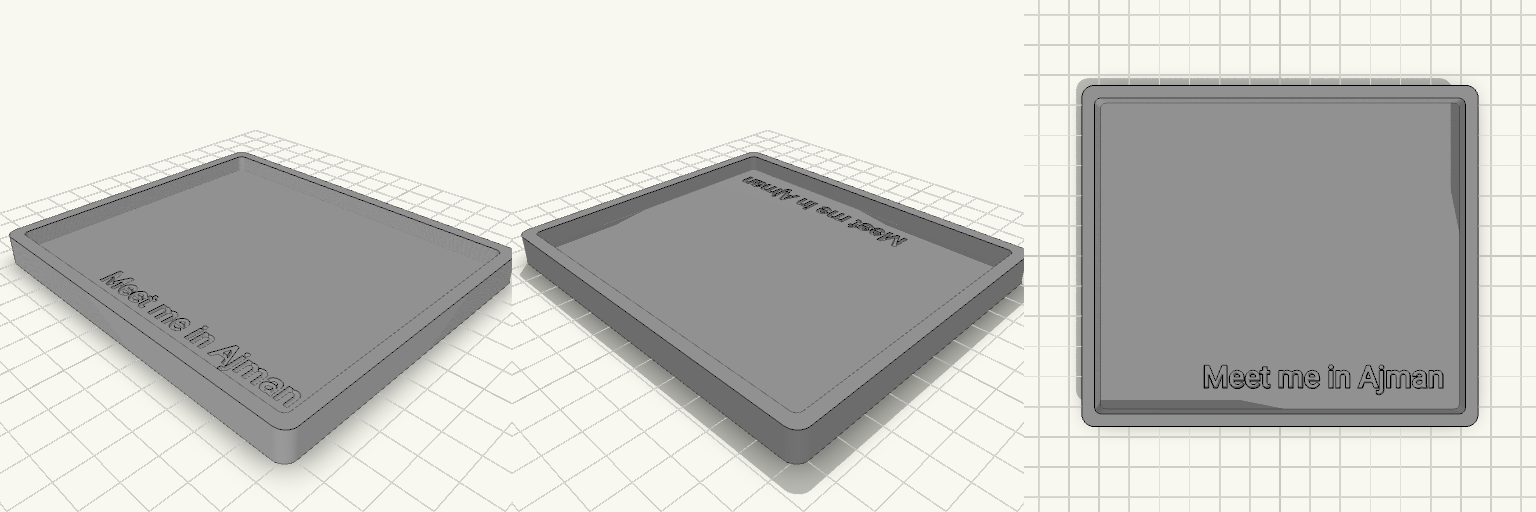

Ajman car tray
