Ornate Bas-Relief Ceiling Canopy
Created 10 days ago
Description
A plain ceiling canopy is a missed opportunity. When plaster tears out around a fixture box, a flat plastic plate covers the hole but looks entirely utilitarian.
This canopy adds an intricate eight-fold radial bas-relief across the visible face, drawing the eye away from ceiling imperfections.
Specifications
- Canopy Diameter: 105mm — wide enough to span a ragged 80mm drywall cut.
- Ornament Height: Raised 1.2mm off the base surface.
- Thread Interface: Generous 16.8mm internal thread on the canopy nut prevents binding when threading onto the core hanger.
- Printability: The entire assembly, including the filigree, sits flat on the build plate and requires no supports.
Photos
Technical views
More like this
Explore more in Home & Fixtures →

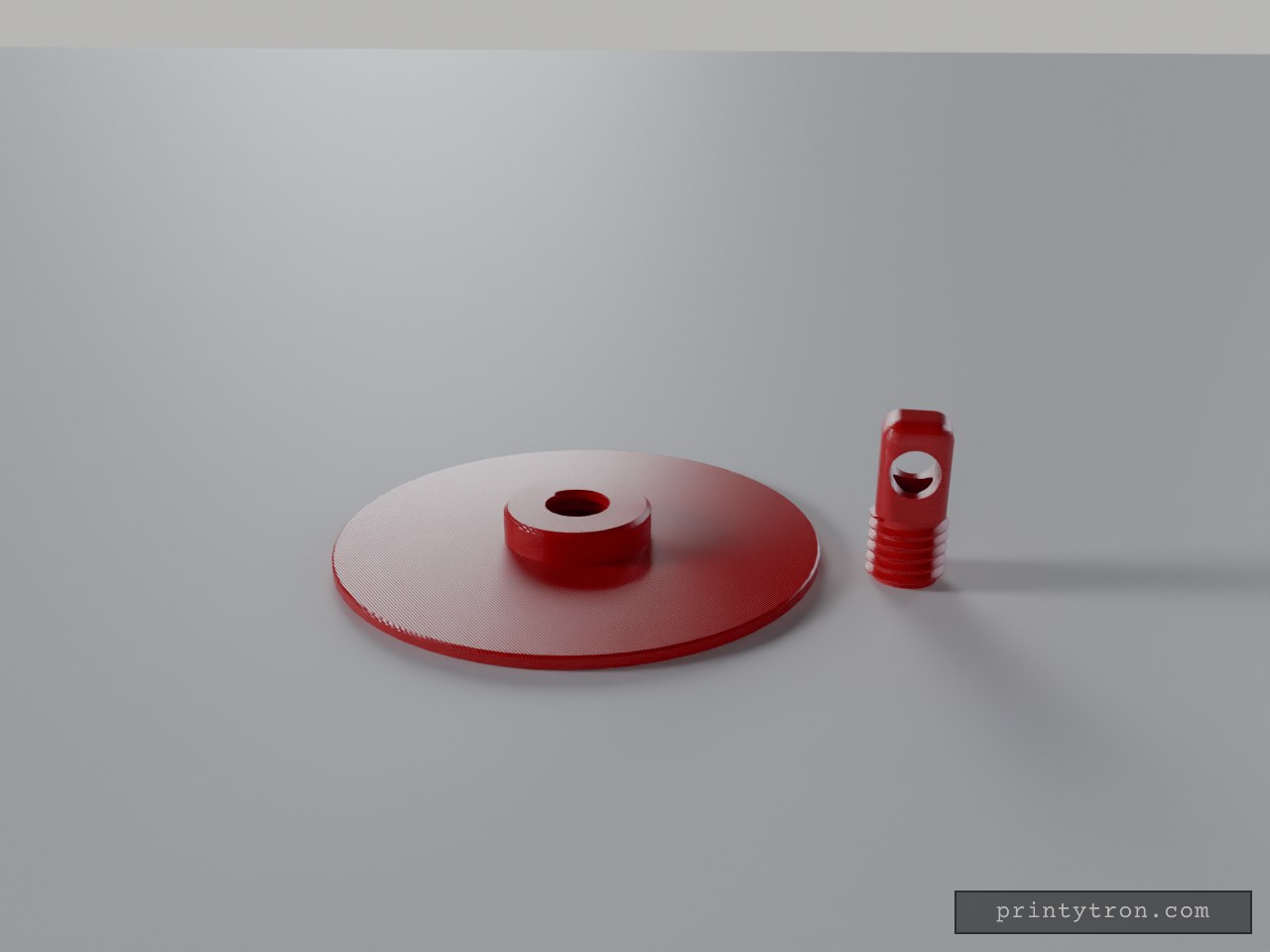

Pendant Ceiling Canopy
A clean, three-piece ceiling canopy designed to bridge a jagged hole and manage a pendant cable. The mechanism borrows from standard flat-pack fixture hardware: a central core hangs from the ceiling hook and threads through the main cover, while a hex nut clamps the cover tight against the drywall. The core is hollow to let your two-wire cable pass through cleanly, with side-exits at the top so the wiring doesn't foul the hanging eyelet. Features 105mm Canopy: Leaves a comfortable margin over an 80mm hole to hide chipped plaster. Hollow Core: 8mm internal channel easily clears standard twin-core lighting cable. Thread Clearance: The nut is cut with an oversized 16.8mm thread for a smooth, bind-free fit on standard FDM prints. Support-Free: All three pieces sit flat on the bed and require no supports to run.
Halo Drip Irrigation Ring
This is a low-profile, continuous-loop irrigation ring designed for automated watering systems. It distributes water evenly around the base of a plant without interfering with the stem. The structure is engineered specifically for FDM printing without supports. The internal hollow channel features a teardrop cross-section so the printer can bridge the ceiling cleanly, and the external hose barb includes a small, built-in support block connecting it to the build plate. Design Notes Dimensions: 197 mm outer diameter, 173 mm inner diameter, leaving a 12 mm wide profile. Inlet: Dual-barb fitting sized for 5 mm internal diameter tubing, pointing outward to keep the hose clear of the foliage. Distribution: 12 downward-facing 1 mm drip holes spaced every 30 degrees, beginning 15 degrees offset from the inlet to ensure the first drops don't pool at the connection. Mounting: Three low-profile tabs sit on the outer perimeter, drilled for standard wire pegs to anchor the ring into the soil.
4-Way Water Manifold
A compact, print-in-place water manifold built for automated plant irrigation systems. It splits a single main feed into four independent channels with smooth internal transitions to minimize flow restriction. Inlet: Single center-mounted fitting sized for 8mm ID hose. Outlets: Four equally-spaced fittings sized for 5mm ID hose. Barbs: Dual retaining ridges on all connections to prevent slip-offs under pressure. Internal Channels: Fully hollowed 7mm common chamber with spherical transitions to eliminate dead zones and sharp fluid corners.

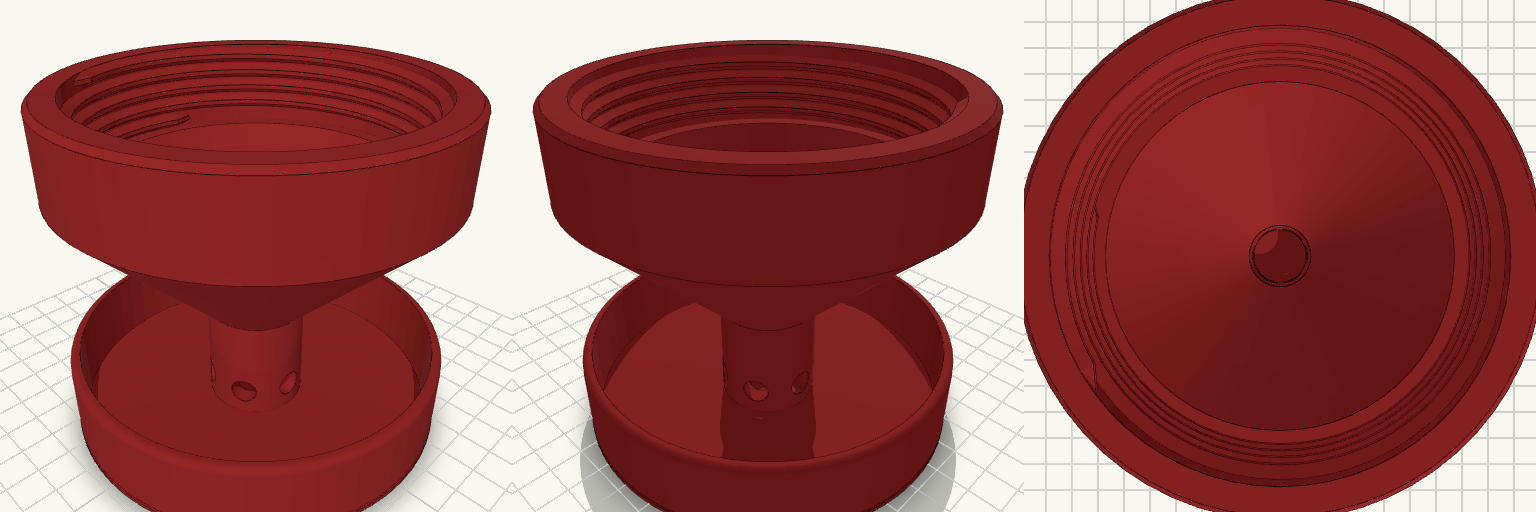

CluckFlow — Gravity Waterer Cap
New chickens bring endless questions, but a reliable water supply doesn't have to be one of them. CluckFlow is a gravity-fed waterer cap that threads directly onto a standard bucket or heavy-duty jar, instantly converting it into an automatic hydration station for the coop. A smart internal drip-feed port regulates the flow from the main reservoir, ensuring the trough automatically refills as the hens drink without ever flooding. Dimensions Trough: 40 mm continuous drinking width accessible from all sides. Central Feed Tube: 20 mm inner diameter. Collar Thread: 100 mm diameter with a 5 mm pitch, scaled for common bulk containers. Design Features Print-in-Place: The internal bell funnel is steeply angled to bridge the gap between the central feed tube and the outer threaded collar, printing entirely without supports. Self-Regulating: Multiple drip ports ensure constant equalization of the water line.
Circular Scoop Reaching Stick
What it's for A 16 cm tall reaching stick with an open scoop base. Designed to securely push under small items and lift them, with an open front and a curved retaining wall at the back. Dimensions Overall Height: 160 mm Base Diameter: 100 mm Handle Diameter: 16 mm Print notes Prints upright in a single piece with no supports required. Ensure good bed adhesion for the 100 mm base plate.
4-Way Barb Manifold
Hoses slipping off a plain tube is a guaranteed flood. This 4-way manifold uses aggressive, precisely sized barbs to bite into soft tubing, routing one 8mm inlet into four 5mm outlets. Critical Fit Inlet: 8.2mm main shaft, 10mm max OD on three barbs. Outlets: 5.2mm main shaft, 6.7mm max OD on two barbs each. Flow: Internal bores are necked down to 3mm on the branches to preserve wall strength, expanding to a 16mm central chamber. Print it base-down. The horizontal barbs are short enough to bridge without supports if your part cooling is dialled in.
