Description
A 95 × 80 mm open-top tray, 50 mm tall, with 2 mm walls and a 2 mm floor.
What it has
- 1.5 mm chamfers on the bottom edges and vertical corners; the top rim stays square.
- Four triangular corner gussets at the rim (z 47–50 mm), each with a 6.1 mm pocket 2.1 mm deep.
- A 44 mm long, 45 mm tall cut-out in the centre of the -X wall, leaving a 5 mm bottom lip.
- 13 vertical grooves (2 mm wide, 0.8 mm deep) on the outside of the +X wall.
Check before printing
The cut-out is 44 mm long so it stays clear of the gussets. Wider cut-outs would cut into them.
Does not fit
The earlier 155 mm length is gone; the tray is now 80 mm long.
Images
More like this
Explore more in Storage & Organization →

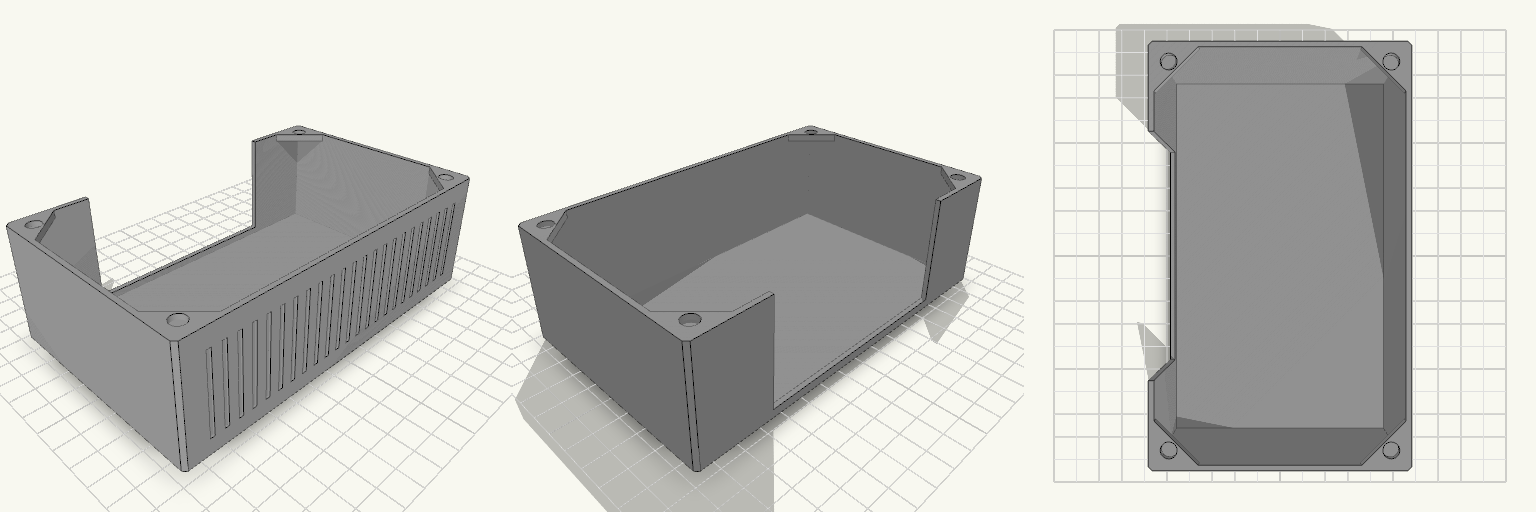

Petersson 95x155 v2
