Two-Piece Gridfinity Caliper Box
Created yesterday
Description
A 6 x 3 unit Gridfinity caliper box split at the middle into two halves, each about 126 x 126 x 25.4 mm, so each fits a 150 mm print bed. Two dovetail keys join the halves. The stepped pocket holds a 9.25 in caliper: a 15.9 mm body slot and a 78 x 97.5 mm head recess, both 12.7 mm deep. The stacking lip and finger scoops are kept.
Remix hooks
- Split position: the cut is at X = 0, on a Gridfinity cell boundary. Moving it in whole 42 mm steps keeps the cells intact.
- Dovetail size: 8 mm at the root, 13 mm at the tip, 16 mm tall, at Y = ±35. The socket has 0.25 mm clearance. Loosen or tighten it to suit your printer.
- Joint type: swap the dovetails for round pins or add glue grooves.
- Pairs with: other Gridfinity bins on a 42 mm baseplate.
Images
More like this
Explore more in Storage & Organization →
Drawer Sleeve Box With Mounting Pad
Open-top rectangular sleeve, 86 x 52 x 127 mm, for a sliding drawer. Smooth interior, 1.6 mm floor, sides and front, 2.4 mm back wall. A raised 40 x 40 x 3 mm pad on the back carries two M3 nut traps. Remix hooks Pad position: top edge sits 10 mm below the rim; pad is centered in X. Move or resize freely. Nut traps: 5.7 mm hex, 2.5 mm deep, 25 mm apart, with 3.4 mm blind holes behind them. Blind holes stop 0.8 mm short of the inside; thicken the back wall to go deeper. Edges: 3 mm vertical rounding, 6 mm 45° bottom chamfer (prints without supports). Drains: two 3 mm holes at X = ±20 mm. Pairs with a matching drawer 3 to 4 mm smaller in each direction.
Gaveta Vertical Mini APH Pocket
Uma gaveta vertical de bolso, no espírito de um canivete suíço de primeiros socorros: o puxador largo no topo é também a tampa, e puxá-lo para cima faz a bandeja subir pelas guias, expondo os itens. Notas de projeto Corpo 86 × 52 × 127 mm, parede de 1,6 mm, dois drenos de ø 3 mm e furo de ø 4 mm para cordão. Bandeja 78 × 47 × 125 mm com tampa de 90 × 56 × 8 mm, recorte de dedo e divisórias. Clipe em J de 40 mm, 2,6 mm de espessura, impresso deitado. Pensado para PETG, sem suportes. Versão simplificada: dentes de retenção, rabo-de-andorinha, berço do oxímetro e batente liberável ainda não modelados.
Support 25 Clés USB
Un support de bureau lourd et stable conçu pour ranger et organiser 25 clés USB en un seul endroit. Variables à ajuster Espacement (28 mm x 23 mm) : Pensé pour accepter la plupart des corps de clés USB sans qu'elles se chevauchent. Peut être resserré si vous n'avez que des clés très fines. Taille des encoches (14 mm x 7,5 mm) : Les fentes offrent un jeu confortable autour d'un connecteur USB-A standard. Profondeur (12 mm) : Laisse les clés bien droites tout en conservant 3 mm de matière pleine au fond du bloc (hauteur totale de 15 mm).

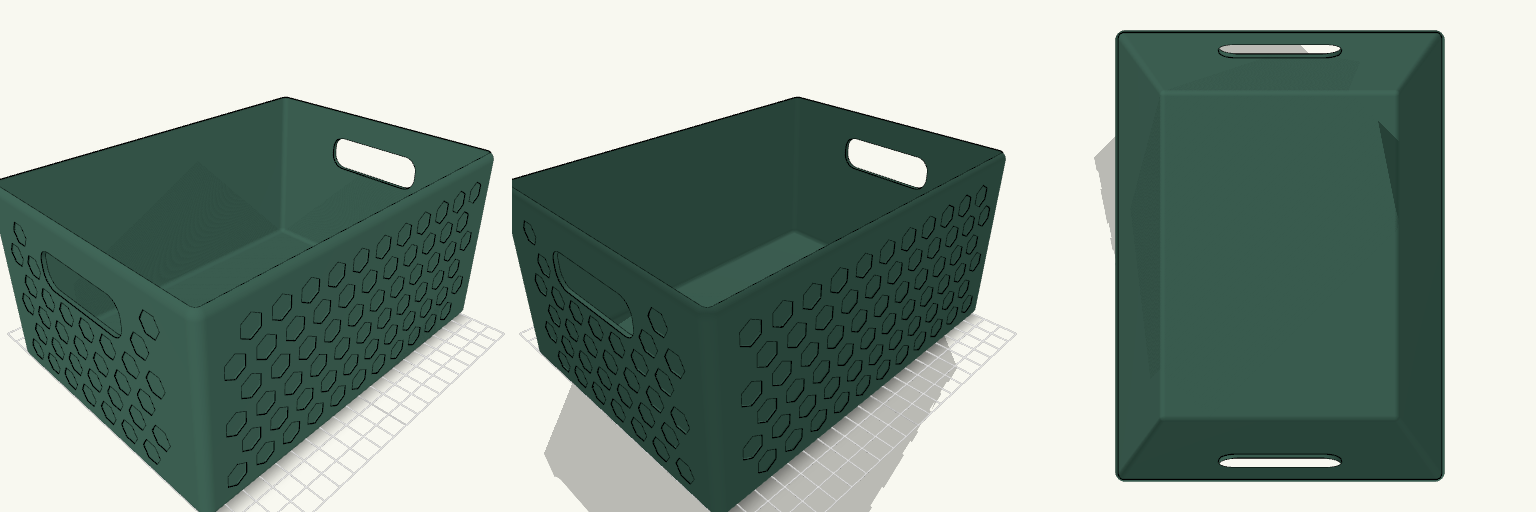

Hex-Embossed Storage Tub
