Apothecary Box With Lift-Off Lid
Created today
Description
A classic apothecary-style storage box, 6" x 4" x 2", with a separate lid whose inner lip plugs into the body. The two pieces are laid out side by side for viewing and print as two separate jobs, so each fits an 18 x 18 cm bed.
- Body: 152.4 x 101.6 x 47.5 mm, 2.4 mm walls, chamfered edges
- Lid: 152.4 x 101.6 mm, 3 mm plate with a 5 mm plug lip
- Fit: 0.3 mm clearance between lip and body recess
- Print the lid flat with the lip facing up, no supports needed
Images
More like this
Explore more in Storage & Organization →
Sliding Lid iPhone 11 Box
A two-piece protective box for an iPhone 11. The base holds the phone; a flat lid slides in from one end along grooves cut into the long walls, with a round thumb slot to push it open. Remix hooks Cavity: 154 × 79 × 13 mm open space (phone is ~151 × 76 × 8.3), 2 mm walls and floor. Change the cavity numbers for other phones. Groove fit: grooves are 1 mm deep and 2.2 mm tall, lid is 2 mm thick, about 0.2 mm clearance each side. Tune for your printer. Thumb slot: 16 mm diameter at the open end; make it larger or swap for a slot. Pairs with: a foam or felt liner, or a detent bump to stop the lid sliding open. Print both pieces flat, no supports needed.

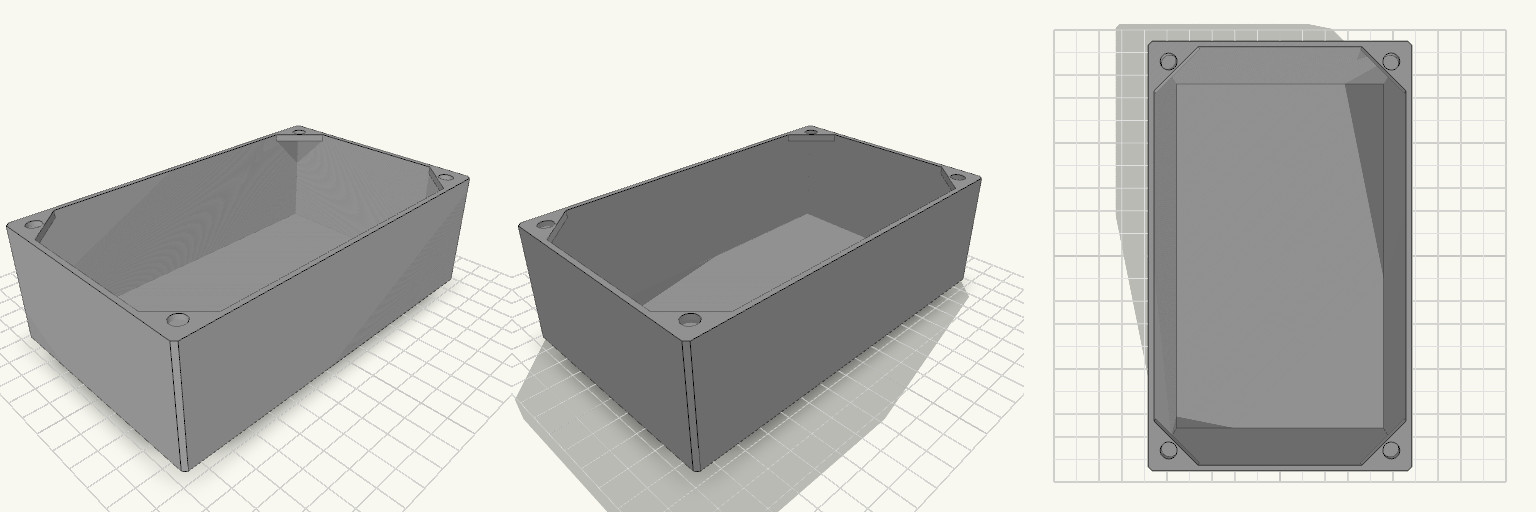

lock 95x155
