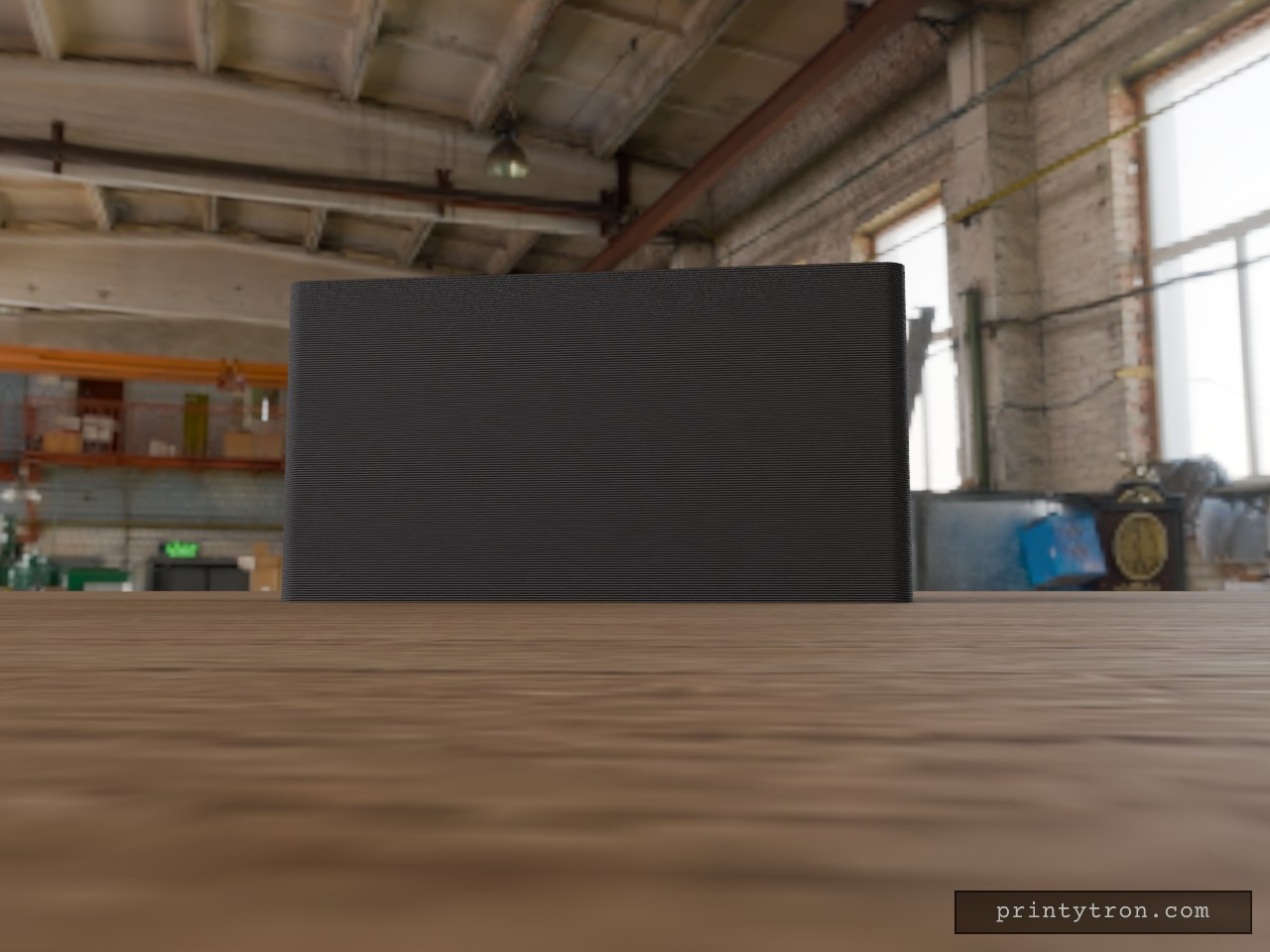

Drawerling — 115 x 150 Desk Drawer Bin
Created today
Description
Drawerling is an open-top rectangular bin sized for a desk drawer, built to exact external dimensions of 115 × 150 × 60 mm. Straight walls, a solid floor and softly rounded vertical corners make it easy to wipe clean and print without supports.
Dimensions
- External: 115 mm wide × 150 mm deep × 60 mm high
- Walls: 2 mm
- Floor: 2 mm, solid
- Corner radius: 4 mm (vertical edges)
Features
- Fully open top, no lid, hinges or handles
- Flat base for support-free FDM printing
- Single watertight body, STL-ready
Photos
Technical views
