Pi 5 Tower Case
Created 1 months ago
Description
This is a two-part enclosure built to house a Raspberry Pi 5 alongside a tall stack of PCIe shields. Because expansion boards vary wildly in where they drop their ports, this shell skips the millimeter-perfect holes in favour of massive front and rear bays. It provides 50mm of internal headroom, easily clearing an active cooler, a 2.5G Ethernet shield, and an NVMe board stacked together.
Remix Hooks
- Cover Height (
cover_h): Set to 50mm by default. If your Waveshare stack sits higher, push this up. - Port Bays: The large cutouts on the cover are generic rectangles spanning almost the entire width of the case. If your shields use a weird side-exit layout, you'll want to punch a new hole through the Y-axis wall.
- Standoffs: The base includes 4mm standoffs (
standoff_h) with 2.4mm alignment pegs matching the standard Pi 5 mounting footprint (58x49mm).
Images
More like this
Explore more in Desk & Tech →
Melted Font AirPods Pro Case
A rugged, 3D-printable AirPods Pro 2 case with custom "PIZZARAMA" lettering styled to look like melted cheese. This two-part shell features a print-in-place hinged back, embedded magnet snaps for a solid closure, and tailored cutouts for the charging port. Remix Hooks Typography: Currently using Rammetto One at 4.5mm size for maximum chunkiness — swap it for something sharp and industrial if you want a different vibe. Magnets: Uses 3mm round magnets in a compact front lip. The housing walls are balanced at ~0.9mm, which is safe for FDM printing. Hinge: Uses a 3mm printable pin. You can scale the knuckle tolerances or sub in a piece of raw 1.75mm filament as the pin if you'd prefer an ultra-low profile hinge.
AirPods Pro Hinge Case
A protective hard case built specifically for the AirPods Pro (Generation 1 and 2). Apple doesn't make an "AirPods Pro 3", so this is dimensioned for the Pro standard: roughly 60.6mm wide by 45.2mm high. If you actually have the standard AirPods Gen 3 (the taller, narrower ones), they will not seat in this pocket. Assembly & Fitment Hinge: Uses a bulletproof filament hinge. Run a 40mm length of standard 1.75mm PLA/PETG filament through the knuckles and snip the ends flush. Orientation: Both halves are laid out with the hollow opening facing UP. You will need standard bed supports for the rounded outer bottoms and the external keychain boss. Clearance: Includes a 0.4mm tolerance gap to ensure the Apple case slides in without fusing. Features a bottom cutout for the Lightning/USB-C charging cable.
Futuristic Handheld Cyberdeck Enclosure
This enclosure turns standard portable electronics into a futuristic clamshell cyberdeck, styled after classic oversized handheld gaming consoles. The design features: A Lower Deck with a recessed keyboard well, flanked by integrated D-pad, thumbstick, and action button mounts. An Upper Display Shell with a wide screen recess and slim bezels. An integrated barrel hinge mechanism that visually connects the two halves while keeping the closed profile slim and symmetrical. Edge ports and bottom cooling vents designed for FDM printing without bulky overhangs. Print the halves flat on their outer faces. The hinge uses standard 12mm barrel clearances.
CareProof V1 Sensor Enclosure
A complete modular enclosure system designed to house the components of the CareProof V1 tracking and monitoring node. The main chassis splits into a generous front housing and an overlapping rear cover, securely fastened with M3 corner screws to provide easy access for wiring adjustments. Included Components Front Housing: 152 × 105 × 28 mm primary shell with dedicated cutouts for a status LED, vent slots, a 24 mm PIR sensor aperture, and an embossed tap zone. Rear Cover: Matching backplate with an 8 mm alignment lip and M3 screw interfaces. NFC Bracket: Removable 50 × 50 mm internal sled to hold a PN532 module directly against the front face. PIR Bracket: Basic 35 × 30 mm retention plate for the motion sensor. Door Sensor Unit: Separate two-piece 40 × 20 mm enclosure designed to hold a standard magnetic reed switch on the client's door.

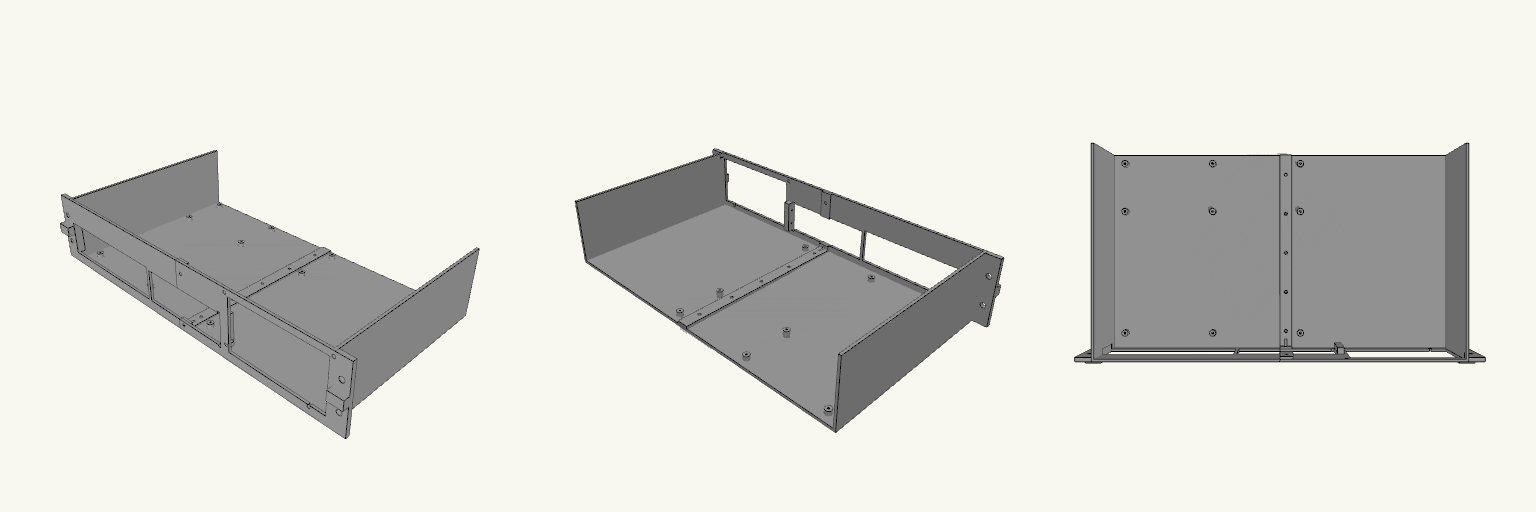

2U Micro-ATX Split Rack Chassis
