Description

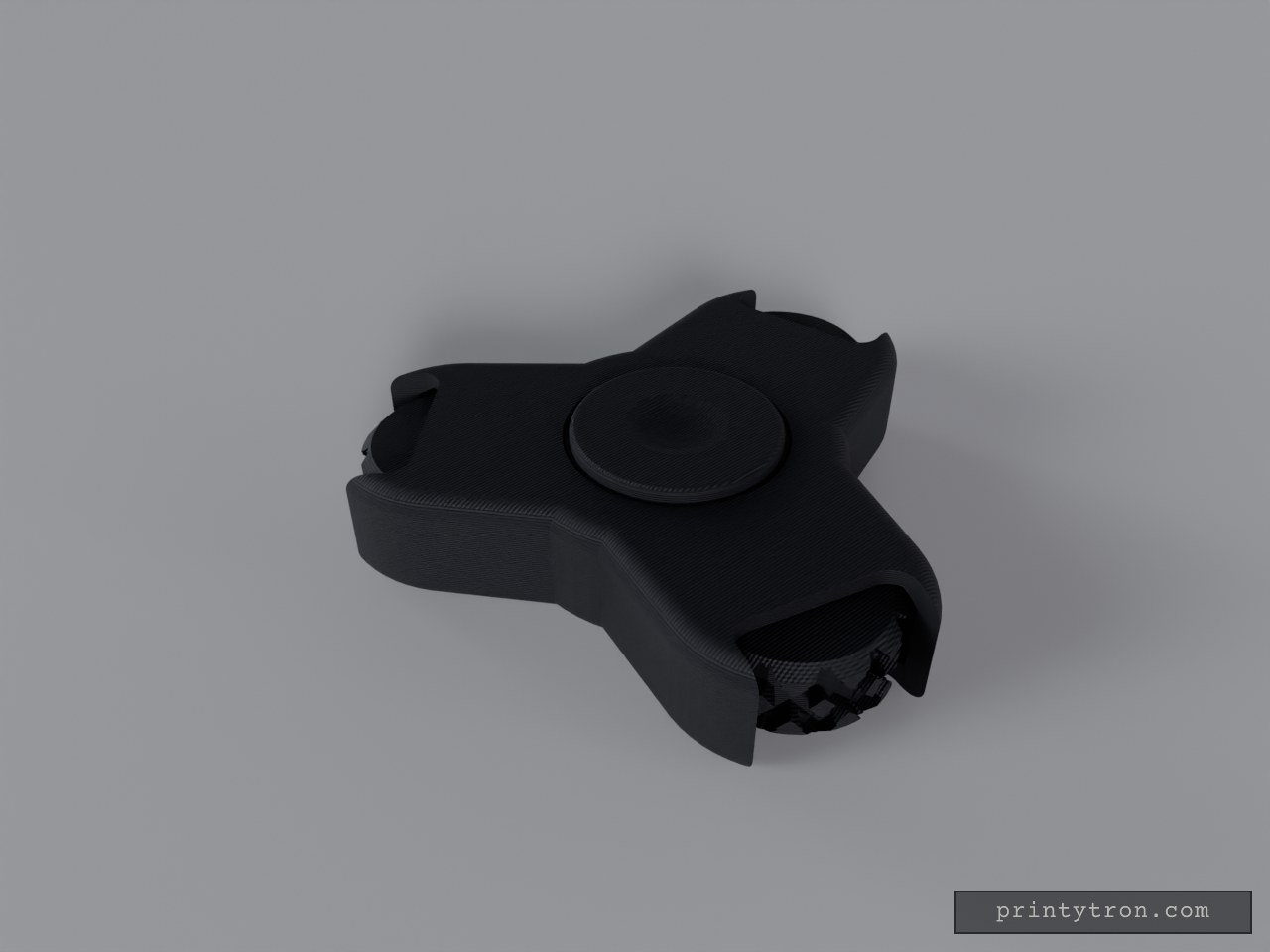

A captive, fully print-in-place mechanical fidget toy. It features three deep-treaded thumb wheels trapped within rounded U-brackets at the corners, plus a central rotating hub. The entire assembly drops onto the build plate as a single unit and breaks free immediately after printing.
Designed for PLA with no supports. Elephant-foot compensation chamfers are built directly into the bottom faces of the captive axles and the center hub hole, ensuring the mechanisms won't fuse to the build plate on the first layer.
