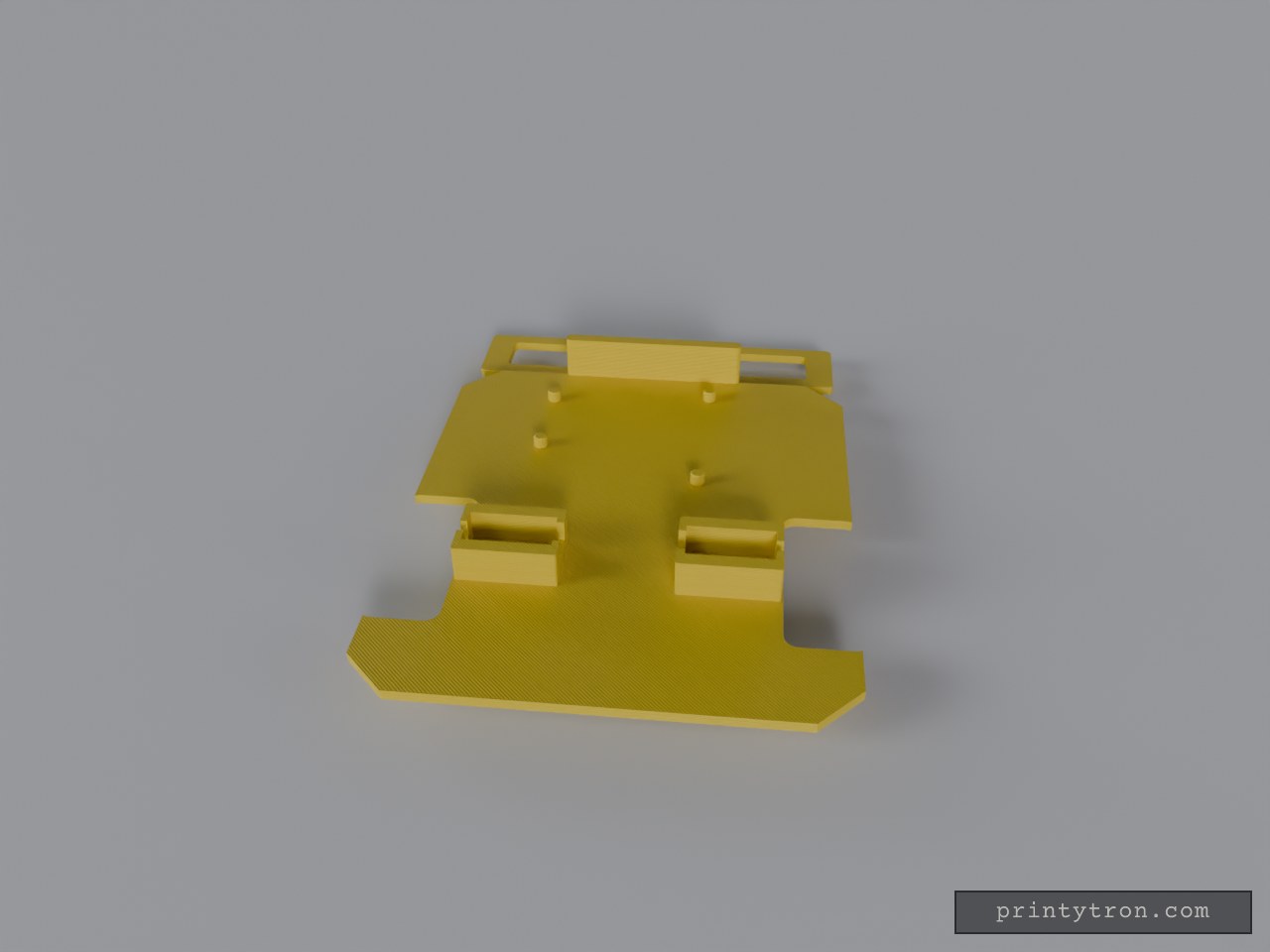

Rear-Drive Uno Line Follower Chassis
Created today
Description
A flat, no-fuss line-follower deck in the spirit of a bare-bones racing sled: one smooth plate, wheels tucked at the rear, and a sensor bracket reaching out front. Built around an Arduino Uno, with four solid standoffs matching the Uno R3 hole pattern.
Design notes
- Plain flat baseplate with no fastener holes or slots
- Openings only for the two wheel cutouts and the sensor tray window
- N20 motor cradles at the rear, shaft notches kept
- Four solid Uno standoffs for a 68.6 × 53.3 mm board, long side across the chassis
- Front sensor bracket with a 126 × 26 mm board shelf
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
Line Follower Chassis, N20 Drive
What it's for A line-follower chassis plate with N20 motor cradles, an adjustable-height front sensor tray, an ESP32 mount, a battery holder, a driver mount, a rear caster tab and an LED hole. Dimensions Overall: about 130 × 198 mm, under 25 mm tall (the plate sits 8 mm off the ground). Motor cradles: 12.2 × 24.7 mm pocket for a 12 × 10 × 24.5 mm N20, with a shaft notch and two M2 holes each. Wheel cutouts: sized for 34 mm wheels with more than 2 mm clearance to the plate. Sensor tray: 126 × 26 mm board shelf, two vertical M3 slots in the riser for height adjustment. ESP32: four standoffs for a 48 × 26 mm board, plus two zip-tie slots. Battery: 68 × 18 × 19 mm pocket along the axle line, two strap slots. Driver: two zip-tie slots for a 21 × 18 mm module. LED: 5 mm hole near the rear edge. Wiring: two 10 mm slots between the motor mounts and the electronics. Remix ideas Add a cover clamp across each motor cradle using the M2 holes. Change the caster tab hole spacing for a different caster. Add a second sensor tray for a different board width.
compact final version 25 mm Paddle Shaft
U-shaped holder for a 25 mm paddle shaft with a rack-and-pinion lock driven by a 12 × 10 mm N20 geared motor (3 mm output shaft). Laid out as separate flat parts for printing. What it fits 25 mm round paddle shaft in a 27 mm U-slot. N20 motor body 12 × 10 × 24 mm, in a pocket with 0.2 mm clearance per side. Motor retainer plate 24 × 14 × 3 mm, in a recess with 0.2 mm clearance. Check before printing Confirm your N20's body length and shaft length. Body length is a parameter. The shaft passes through a 5 mm hole (1 mm radial clearance), which also clears the gearbox boss. Not included No limit switches or stall sensing. The motor needs one or the other. The slot is open through in Z, so paddle support depends on the mounting. Parts Housing, sliding rack, pinion, motor retainer plate and guide cover plate, spaced at least 10 mm apart. PETG or ASA recommended.
25mm Tactical Tabletop Tokens
A complete set of nine 25mm wargaming tokens tailored for tabletop tracking. Designed with a clear separation between the base and the raised lettering, making them perfectly suited for a mid-print filament swap or a multi-material system. Specifications Dimensions: 25 mm diameter, 4 mm overall height. Tolerances: The raised text and outer rim sit exactly 1 mm above the base layer, creating a clean Z-height transition for color changes. Printability: No supports required. The bottom edges feature a 1 mm chamfer to prevent elephant-foot distortion on the first layer, ensuring the tokens remain perfectly circular and easy to pick up from flat tables. Layout: Arranged in a flat 3x3 grid for immediate batch printing. Can be split into individual models in the slicer if needed.

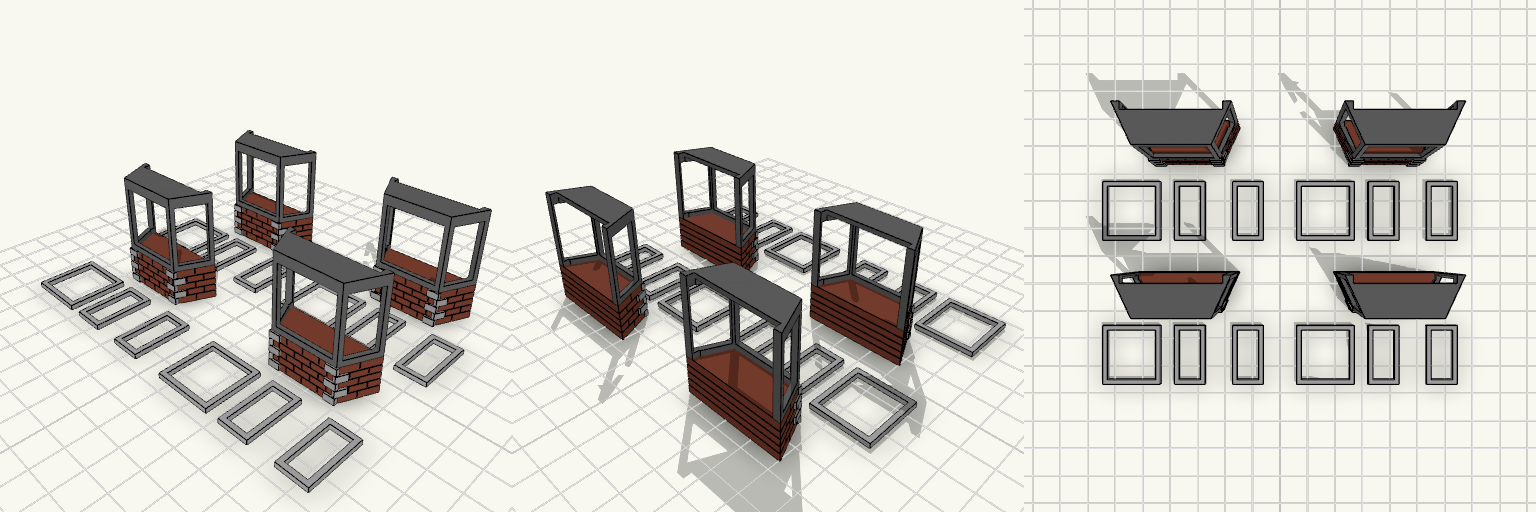

Bay windows for shops
OO scale bay window body, 36 mm wide, 13 mm deep and 40 mm high, with 13 mm of brickwork at the base and three window openings above. Three open window frames print separately on the plate for painting and gluing into the openings. Scale: OO gauge (4 mm to 1 ft) Overall size: 36 × 13 × 40 mm Brickwork: 13 mm high, horizontal courses with staggered joints Front window: 24 mm wide opening; two angled side windows about 14.3 mm wide Frames: 1.6 mm thick with 1.6 mm borders and a through-opening Fit: frames sized with clearance to their openings Back: open, for gluing to a wall

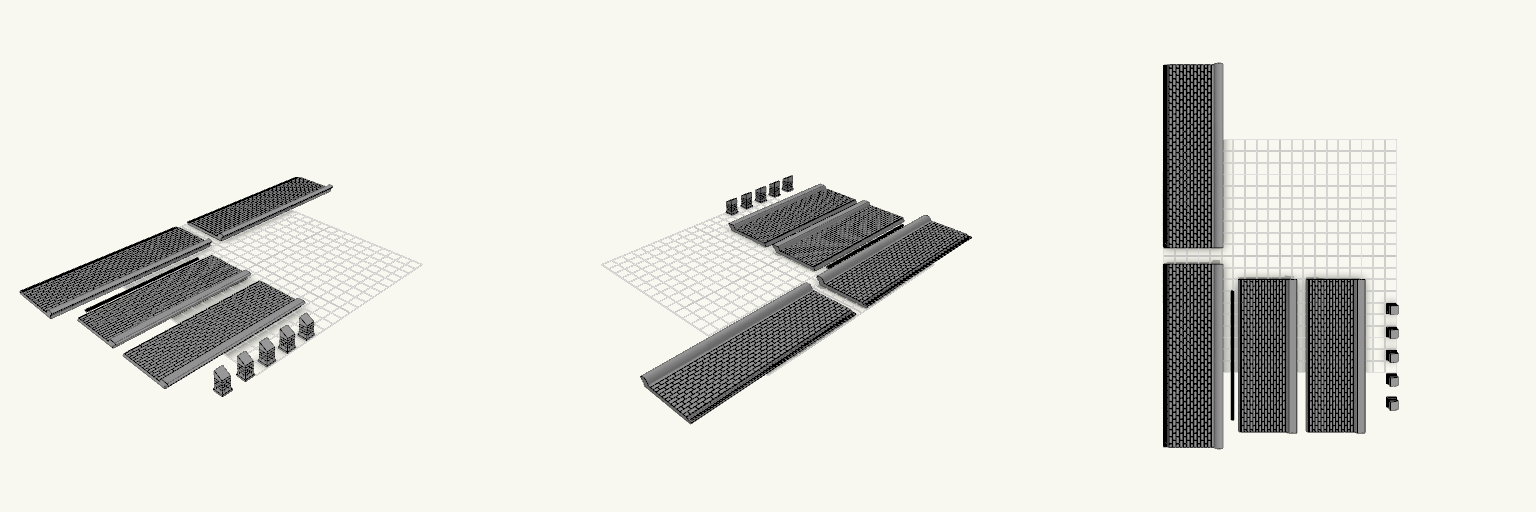

Oo scale buildings half relief roof with ridge tiles
