Rover Rocker-Bogie Linkage
Created 14 days ago
Description
A rigid frame is useless when half the wheels are off the ground. This replaces the solid chassis problem with the exact kinematic linkage used on the Mars rovers, ensuring all six wheels maintain contact over uneven terrain.

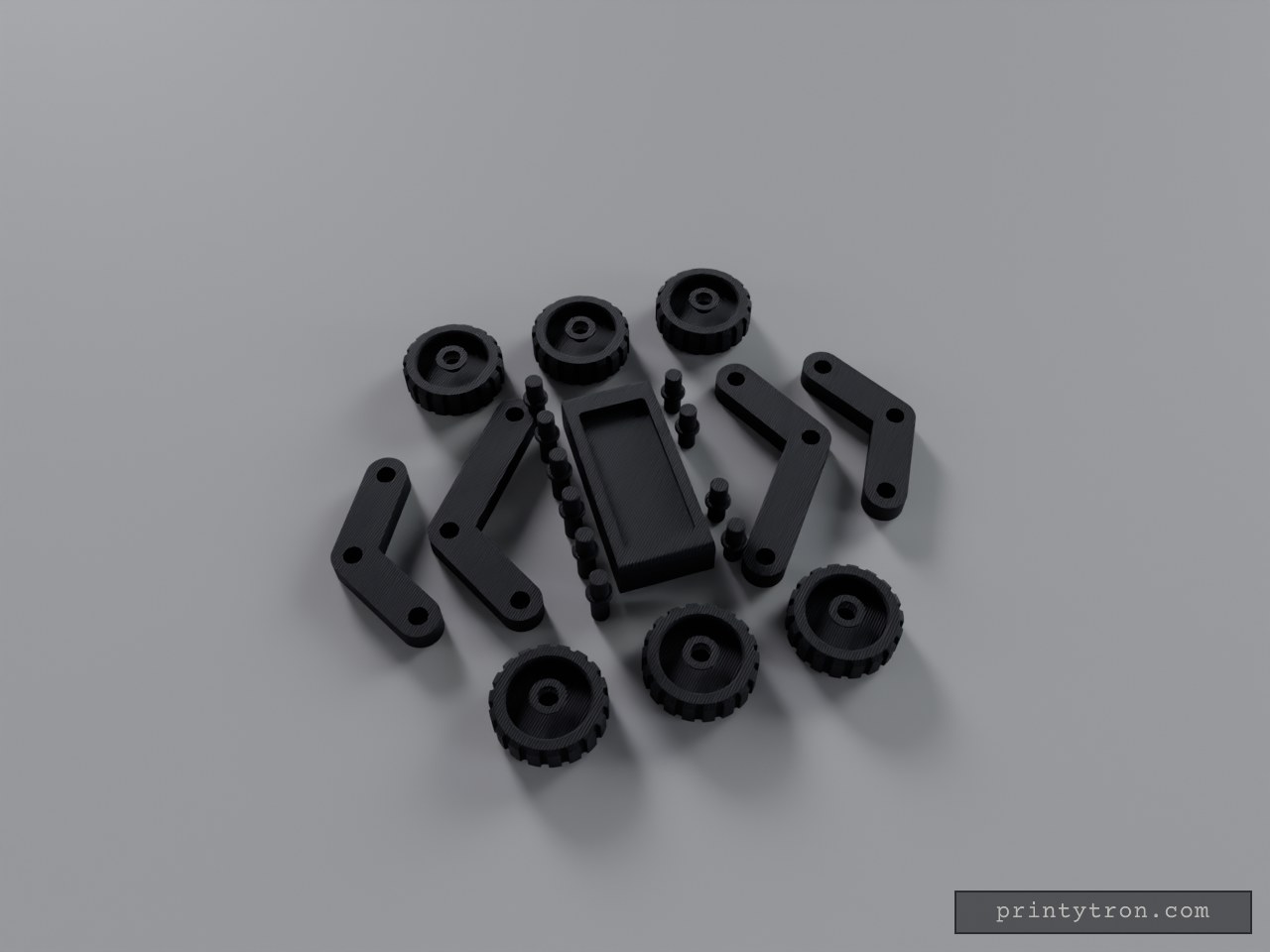

The kit is laid out for flat printing without supports and assembles via flanged friction pegs.
Assembly Clearances
- Holes: 8.0 mm
- Pegs: 7.6 mm (0.4 mm clearance for smooth rotation)
- Short Pegs: Connect the chassis to the long rocker arms, and the rocker arms to the smaller bogie arms.
- Long Pegs: Mount the six wheels to the ends of the arms. The flange acts as a built-in washer to keep the wheels from rubbing the linkage.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
Red Planet Rover Chassis
A fully articulated, print-in-place scale model capturing the iconic six-wheel stance of off-world explorers. The design relies on the famous rocker-bogie suspension geometry, allowing the wheels to ride over uneven terrain while keeping the main chassis relatively stable. It prints entirely assembled as a single piece. Print Guidelines Clearance: Designed with 0.4mm gaps on all articulating joints. Orientation: Prints directly on its wheels. Support: No supports required. The internal axle caps are conical to bridge cleanly. Post-Processing: Gently work each wheel and pivot arm free after taking it off the bed to break away any tiny stringing inside the joints.
Snap-Fit Poultry Band
A heavy-duty, flex-to-fit poultry leg band designed for easy application on turkeys. Customizing the Fit Band Diameter: Currently scaled for roughly a 1-inch (25.4mm) leg, making it suitable for mature turkeys. Band Width: The height along the leg is half an inch (12.7mm). The Hinge: The back of the ring thins out to 1mm to create a living hinge. You can thicken this if your material is exceptionally soft, or thin it further if you are using a stiffer PLA. The Lock: Features a horizontal bulb snap-fit. The locking pin squeezes through the entry gap and clicks into an enclosed cavity, keeping it secure even during movement. Adjust the bulb diameter or cavity clearance depending on your printer's tolerance.

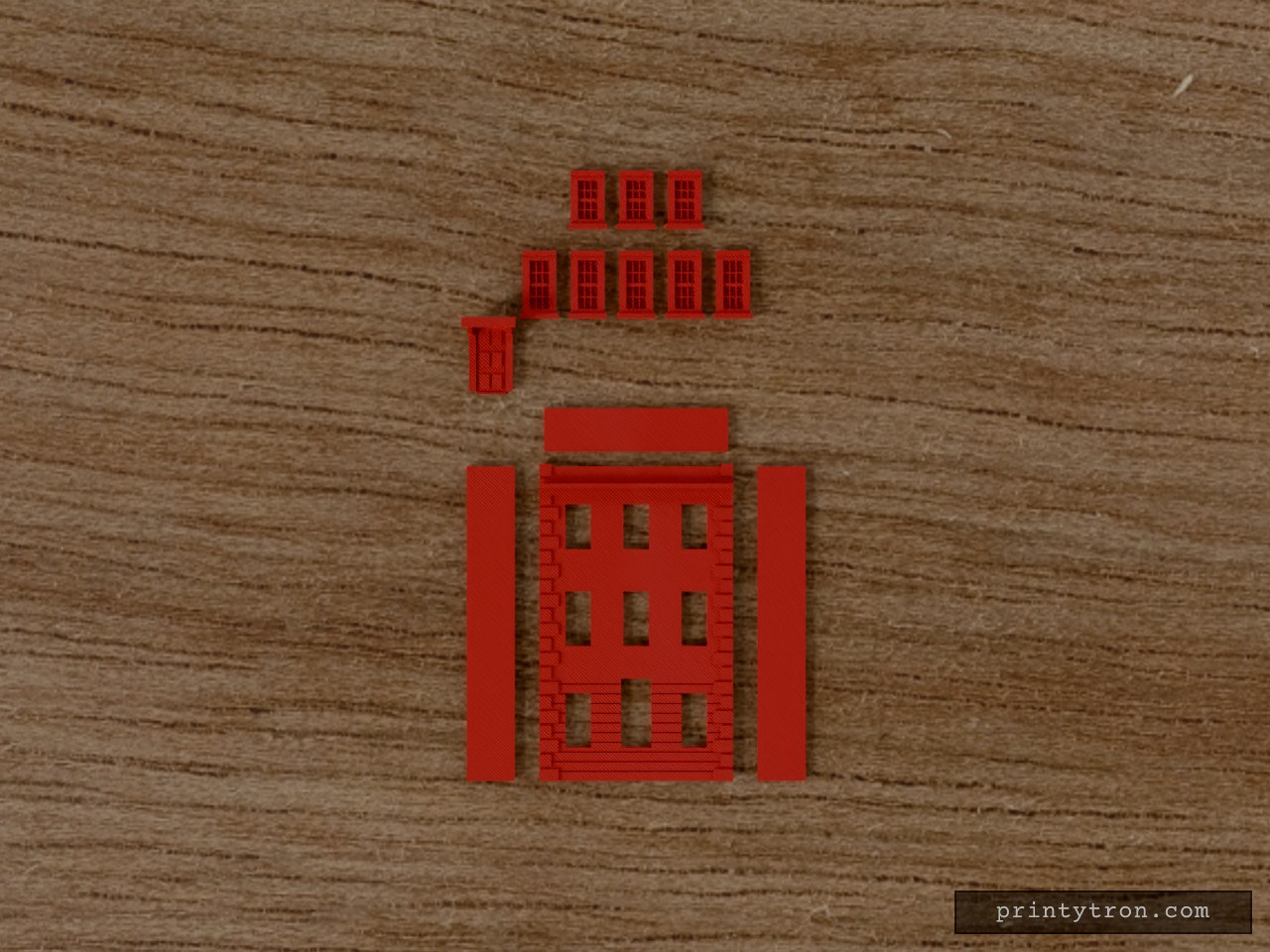

OO Scale Georgian Townhouse Facade
