80x34 mm Oval Body Hole Cover
Created today
Description
Closed oval cover plate for an 80 x 34 mm body opening in roughly 1 mm sheet metal. It pushes in and snaps into place without screws, glue or separate clips.
- Front plate: 86 x 40 mm, 2 mm thick, rounded top edge, no openings
- Contact flange: 3 mm overlap on every side
- Rear insert: 79.4 x 33.4 mm, 4 mm deep, hollow thin wall
- Clips: two integrated tongues on the long top and bottom sides, with hooks about 0.7 mm high
- Hook geometry: ramped lead-in and a catch face set for 1 mm metal
- Material: PETG or ASA, printed front-face down
Images
More like this
Explore more in Automotive, RC & Hobby →
Flat Snap-In Interior Trim Cover
A removable interior trim cover with a flat front surface, a stepped outline (107 mm wide at the top, 123 mm at the bottom, 180 mm tall) and a soft raised area at the upper left. A rear locating frame and eight ratcheting snap clips hold it in the opening without screws. Remix hooks Raised area height: 10 mm with a roughly 30 mm blend. Lower it for a subtler step, or delete it for a fully flat panel. Surface curvature: the panel is flat in both directions. A gentle crown can be added back by adding a term to the height function. Clip layout: four clips per side at 25, 65, 105 and 145 mm height, each with four ratchet teeth 3.5 mm apart. Change the tooth pitch to match the metal edge thickness. Stabilising grid: 20 mm pitch, 1.6 mm ribs, about 3.5 mm tall. Pitch and height are easy to adjust. Pairs with: fuzzy skin in the slicer for a textured plastic look, in PETG, ASA or ABS.
Push-In Trim Clip, Screwable Head
A dashboard-trim style push-in clip with a smooth, fully closed 22 x 16 mm rounded head and a solid central core that takes a self-tapping screw from the front. Head: 22 x 16 x 3 mm, rounded corners, no holes Shaft: 10 x 10 mm, about 18 mm long, chamfered insertion tip Two spring arms with tapered ramps and locking shoulders, 13.5 mm across the barbs Narrow slots separate the arms from the central screw core Best printed in PETG or ASA

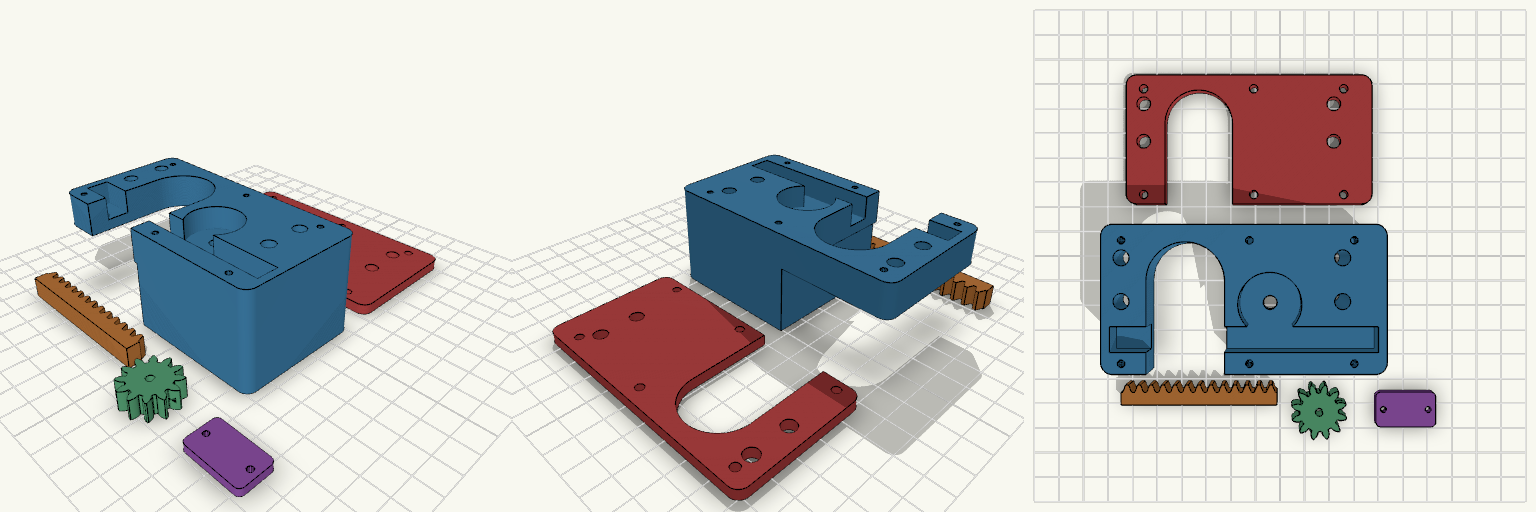

compact final version 25 mm Paddle Shaft
