Side-Pinned Click Lock 2 40-Quarter Dispenser
Created today
Description
What it's for
A fully mechanical, gravity-fed coin magazine tailored for standard U.S. quarters. It stores a full $10 roll vertically and dispenses exactly $1 (four quarters) per cycle into the palm of the hand. The mechanism relies on a two-stage sliding escapement, now utilizing a side-mounted limit pin to ensure the coin path remains entirely unobstructed during travel.
Dimensions
- Overall Envelope (Dispenser): 34 × 56 × 75 mm (when closed)
- Slider Thickness: 7.2 mm
- Coin Bore: 25.2 mm (optimized for 24.26 mm quarters)
Clearances
- Slider Play: 0.4 mm vertical clearance inside the track
- Pin Clearance: 0.3 mm on the locking pin diameter
- Cap Threads: 0.6 mm diametric clearance for smooth twisting
Assembly
The main body, slider, cap, and limit pin print separately without supports. Insert the slider into the main body track, align the side slot with the right-hand hole on the body, and push the limit pin flush into the side countersink to capture the mechanism.
Remix ideas
- Threaded Cap: The top of the magazine tube features a coarse 4mm-pitch thread. Alter the tube height to make a shorter 20-coin version.
- Coin Bore: Tweak the internal offset diameter for other currencies or custom arcade tokens.
- Slider Thickness: Scaling the Z-dimension alters how many coins drop per pull.
Images
More like this
Explore more in Workshop & Tools →
Robust 3-Way Irrigation Manifold
A heavy-duty 1-to-3 splitter manifold designed for 5 mm ID irrigation hose. It prints completely flat on its base without supports, using teardrop-shaped mounting bosses to bridge the overhangs. To meet the structural requirement of 4 solid perimeters on a 5.4 mm outer barb, the internal channel strictly inside the hose stems necks down to 2.6 mm. Inside the thick bosses and the main manifold body, the passages open up to 5 mm and 7 mm respectively to minimize flow restriction. Remix Hooks Barb Spacing & Count: Adjust the port_solid() module to add more barbs or change the spacing for stiffer tubing. Port Layout: Expand the main body length and loop the for(x = ...) call to add 4, 5, or 6 outlets. Mounting: The flat rectangular body leaves plenty of room to cut countersunk screw holes if you need to hard-mount it to a rail or planter box.
SumaSlide — Tablero Matemático con Carriles
SumaSlide convierte la abstracción de las sumas con llevadas en un proceso mecánico y tangible. Diseñado con tres vías de deslizamiento fresadas en la base, permite que la ficha del "1" sobrante viaje físicamente hacia arriba y a la izquierda hasta coronar la columna siguiente. Esta versión ajusta la cabecera e incorpora un módulo de test para verificar tolerancias de deslizamiento antes de lanzar el tablero completo. Ajustes y Componentes Pieza de prueba: Tramo corto con curva idéntica a la principal, ideal para comprobar que las fichas fluyen sin atascos. Cabecera rediseñada: Texto encogido y desplazado al borde superior para garantizar un recorrido limpio y seguro. Separación de objetos: Todo está dispuesto en una misma plataforma virtual; divídelo en objetos independientes desde tu fileteador para imprimir por separado.
Panneau de Consignation Modulaire
Un grand panneau de consignation mural conçu pour s'imprimer à plat. Les plots d'accroche compacts calent les anses des cadenas, et le pas est calculé pour laisser les corps en suspension libre sans qu'ils ne tapent. Entraxe vertical : 90 mm pour cadenas de 89 mm de haut. Bossages : Rainures en U sans perçage, bord avant de 2,5 mm. Assemblage : Joints à queues d'aronde intégrés sur les quadrants.
2 cadenas module
A wall-mounted 200×200 mm lockout tagout station designed to hold 15 industrial safety padlocks. The single-piece board features reinforced, support-free pegs sized to slip through standard 6.35 mm padlock shackles, retaining them securely while lying completely flat on the print bed. Dimensions: 200 mm width × 200 mm height × 12 mm total depth Capacity: 15 padlocks (3 rows of 5) Hook Profile: 5 mm diameter shaft, expanding to a 7 mm chamfered retaining lip Material Guidelines: Optimized for PETG; standard print cooling recommended for the peg tips Mounting: Four 5 mm countersunk wall-mounting holes

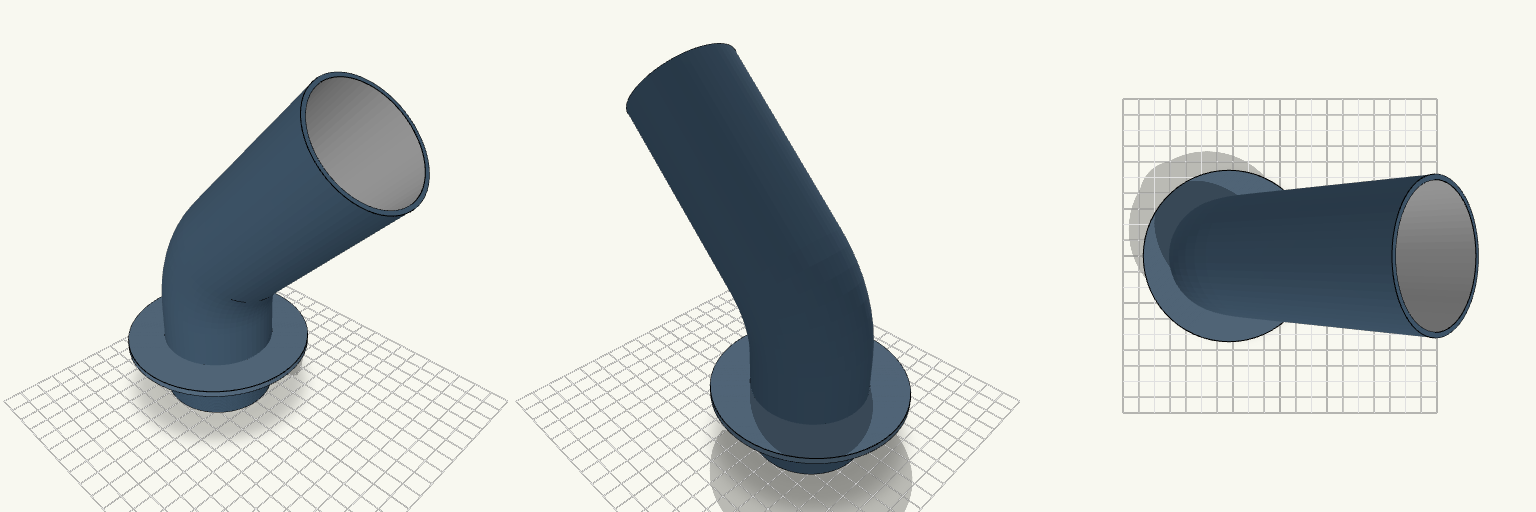

60mm OD Flanged 45° Pipe
