Square Bioplastic Tile Mold with Corner Pins
Created today
Description
What it's for
A square casting mold for thin, translucent starch-based bioplastic tiles. Four pins inside the cavity leave a hole in each corner of the cast tile, so neighbouring tiles can be tied together with fishing line into a stained-glass-style hanging grid.
Dimensions
- Cavity: 120 × 120 mm, 2 mm radius inside corners
- Outer size: 124 × 124 mm, total height 6.2 mm
- Walls: 2 mm thick, 5 mm above the floor
- Floor: 1.2 mm, continuous and flat underneath
- Pins: 4 mm diameter, 4 mm tall above the floor, centred 8 mm from both adjacent inner walls, clear of the walls
Print notes
- One solid piece, no supports, flat underside
- Pins are fused into the floor
- Low filament use thanks to the thin floor and walls
Remix ideas
- Change the pin spacing for larger or smaller holes
- Add mid-edge pins for extra connection points
- Scale the cavity for rectangular or smaller tiles
Images
More like this
Explore more in Kitchen & Bathroom →

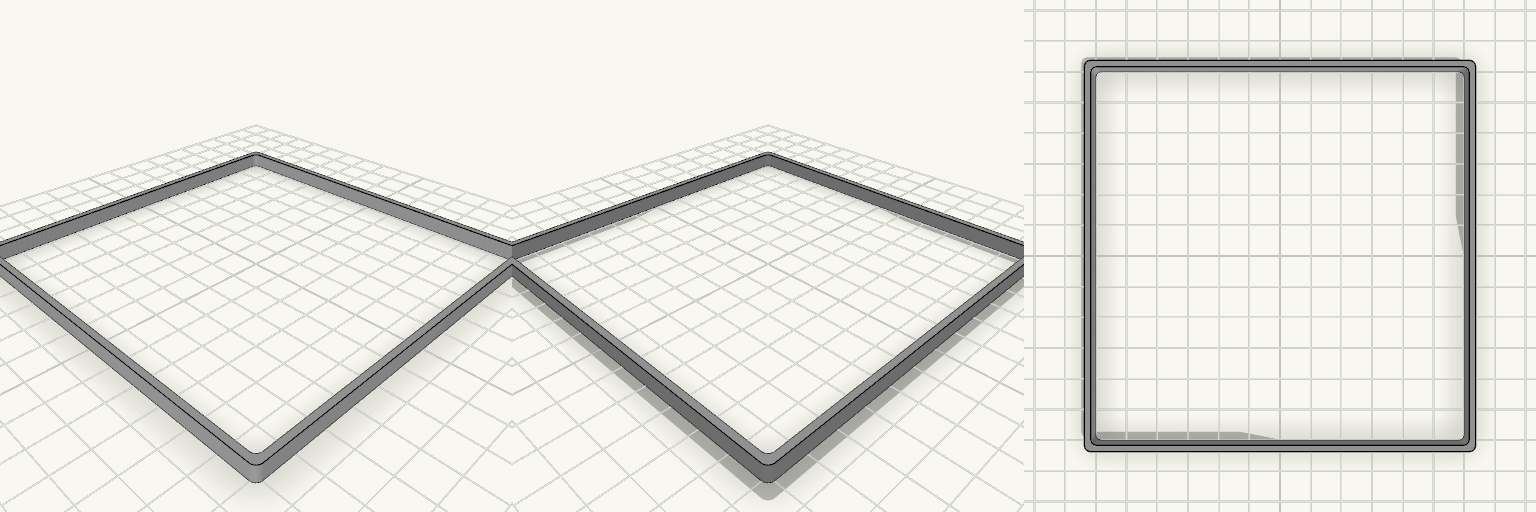

Open Square Casting Mold Frame
