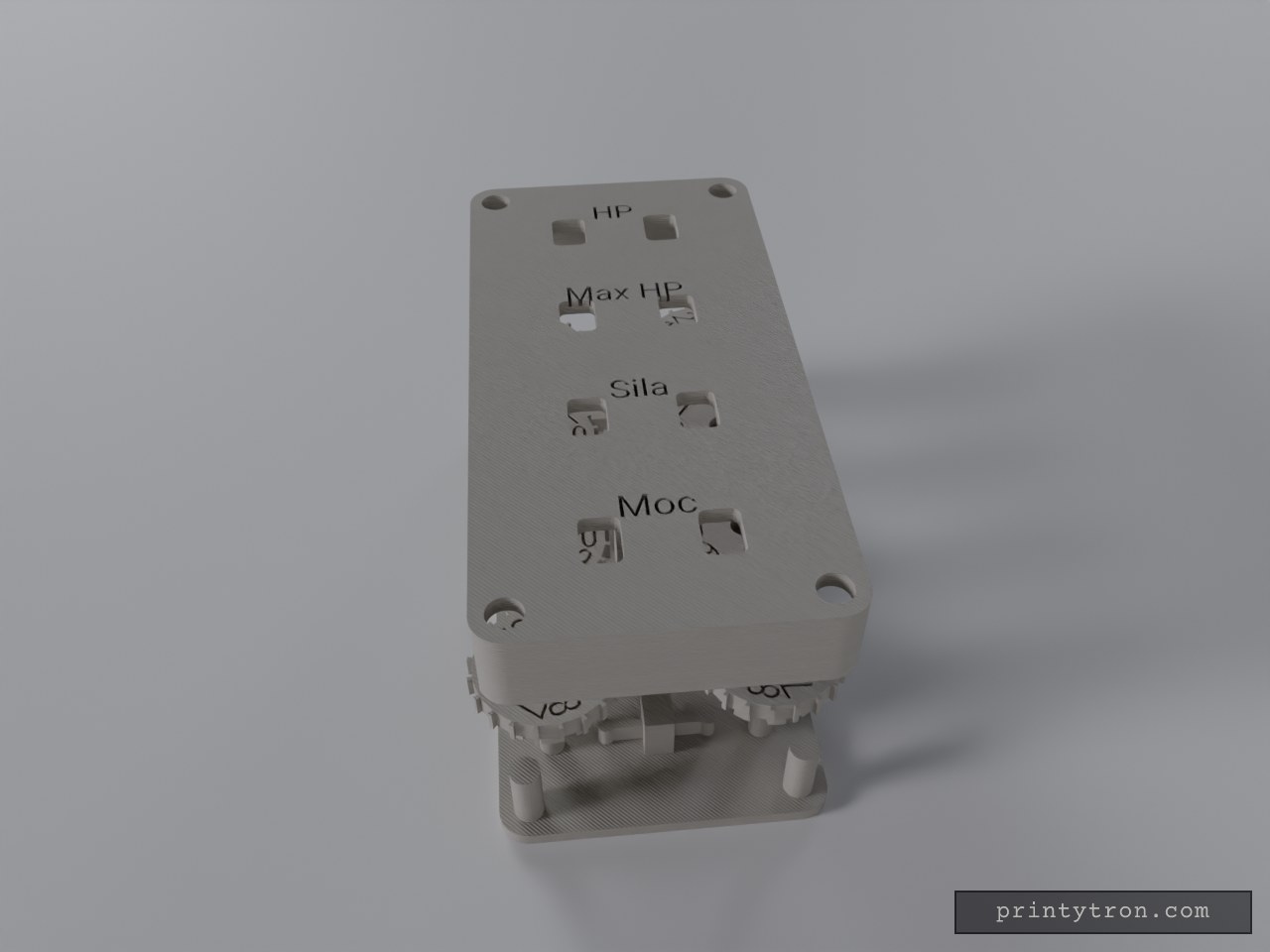

StatQuad — Mechanical TTRPG Tracker
Created today
Description
A compact, 4-row mechanical stat counter. This model features a fully integrated print-in-place leaf spring and cam system designed specifically for FDM limits.
Features
- 4-Row Array: Eight numbered dials grouped into four rows, displaying double-digit values.
- Mechanical Detents: Leaf springs elevated off the baseplate by 0.5 mm ensure each dial clicks into position precisely and won't fuse to the floor during printing.
- Low Profile: The housing is optimized to sandwich the gears with just a fraction of a millimeter of Z clearance.
Print notes
- Print without supports — the 0.5mm gap under the leaf springs will bridge cleanly.
- Fine layer height (0.12 - 0.16 mm) is recommended for the digits and detent nubs.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
Space Command Console Toy
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence. This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points. Printing Notes Dimensions: The base fits squarely on a 180x130mm footprint. Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine. Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed. Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.
Bearings
A standalone print-in-place ball bearing inside a 22x22mm square housing. Designed originally to mount axles on a scratch-built mousetrap car chassis, the housing is completely flat on the back so you can glue or strap it exactly where you need it. Inside, the inner ring rides on twelve captured micro-spheres, keeping friction low without requiring external hardware. Tuning hooks Clearances: The internal track has a 0.4mm clearance gap. If your printer fuses them, try dropping the flow rate slightly. Axle bore: The center hole is 4mm — size it up to fit standard 1/4" or 6mm dowels if you're building heavier. Mounting: The 22x22mm block has plenty of meat around the edges if you want to drill through for M3 bolts.
jgdfjhgmjvgkhlb
A compact, print-in-place traveling nut mechanism designed to mount onto a 15mm diameter shaft. This stopper locks rotation exactly at 900 degrees (2.5 turns) in either direction. The inner blue sleeve slides over your 15mm shaft and secures with a standard M3 bolt and captive nut, while the outer orange traveler moves up and down the internal threads as the wheel turns. Fitment and Constraints Host Shaft: 15mm diameter. The bore is modeled at 15.2mm to allow for a snug fit. Rotation Limit: Exactly 900 degrees (2.5 turns), enforced by rigid top and bottom flanges. Assembly: Print-in-place. The mechanism prints fully assembled with 0.4mm radial clearance in the threads, permanently capturing the traveler nut between the outer flanges so it cannot back off. Installation Requirements: You must have a fixed block or housing wall nearby for the traveler nut's side tab to ride against; this prevents the nut from simply spinning with the shaft and forces it to travel linearly.
20
Model truck wheels usually snap at the hub or require a nest of supports just to print the rims. This one prints entirely flat on the bed, bridging cleanly across the inner rim recess, with treads chunky enough to actually grip rough surfaces instead of spinning out. Specifications Diameter: 80 mm Width: 30 mm Axle: 8 mm hex shaft Print orientation: Flat on its side (no supports needed)
Retro TV Enclosure for No-Solder RP2040 Builds
A two-piece retro TV shell designed to house a no-solder RP2040 video player. The clamshell locks together with a built-in snap fit, offering exactly 150×80×50mm of internal space. Both halves print flat on the bed without supports. Front Bezel: Features a sloped CRT-style screen cutout with an internal ledge for a 2.8" display, twin 7mm dial holes, and integrated speaker vents. Back Shell: Includes a bottom-edge USB-C cutout and classic rear cooling vents. Snap Fit: A 4mm friction lip with interlocking bumps holds the enclosure securely together.

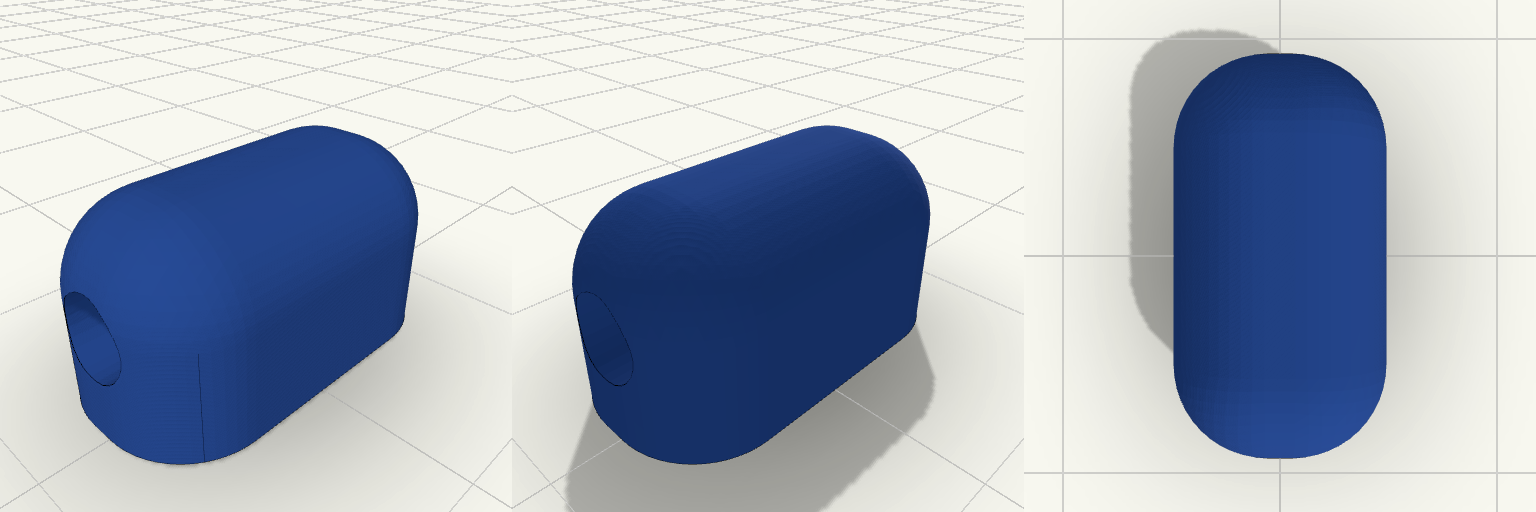

Glue-On Skewer Tunnel
