Components view 1st
Created today
Description
A touchless smart tap automation enclosure designed to sit directly onto a 15–24 mm tap throat.
This is the fully assembled internal view of the water and power management systems. The IP65-style base box drops over the E18-D80NK IR proximity sensor up front and houses native standoffs for standard 50×40 mm and 35×25 mm logic boards.
Fitment Checklist
- Throat: Clamps over 15–24 mm circular taps
- Sensor Bore: Front-facing 18 mm drop-in for cylindrical IR sensors
- Tubing: Routing pathways built strictly for 6 mm OD / 4 mm ID polyurethane lines
- Valve Clearance: Central bay fits standard inline 1/4" 12V DC solenoids
Images
More like this
Explore more in Kitchen & Bathroom →
Stepped Makeup Organizer With Tilting Mirror test 1
A multi-tier storage organizer designed for makeup, cosmetics, and brushes. It features a stepped compartment layout, dedicated grid slots for lipsticks, and hinged lids with simple opening tabs to keep stored items dust-free. The back incorporates mortise slots that accept two upright supports. These supports hold a tilting mirror frame designed to accept a standard acrylic or real mirror sheet. Assembly Notes The parts are laid out flat on the build plate for support-free FDM printing. Uses modular drop-in supports to mount the mirror frame. The main body features integrated hinge knuckles; the lids attach using the included printable pivot pins. Clearances are set to 0.4 mm for smooth hinge rotation directly off the printer.
AeroDock — Open Ring Dryer Mount
The AeroDock is a wall-mounted dock designed to hold a standard hair dryer securely and keep bathroom counters clear. Featuring a 65mm C-ring cradle, it allows the dryer to drop in nose-down while keeping the cord cleanly draped through the front opening. A solid backplate gusset ensures the mount stays rigid under the weight of the appliance. Features Open Cradle: The 38mm front slot makes it easy to lift the dryer in and out without tangling the cord. Reinforced Backbone: A substantial center gusset bridges the cradle to the wall plate for maximum strength. Flush Mounting: Recessed countersinks for screws keep the mounting hardware flush and out of the way. Print Notes Designed for straightforward manufacturing. Orient the model flat on its backplate on the build surface, and it will print entirely without supports.

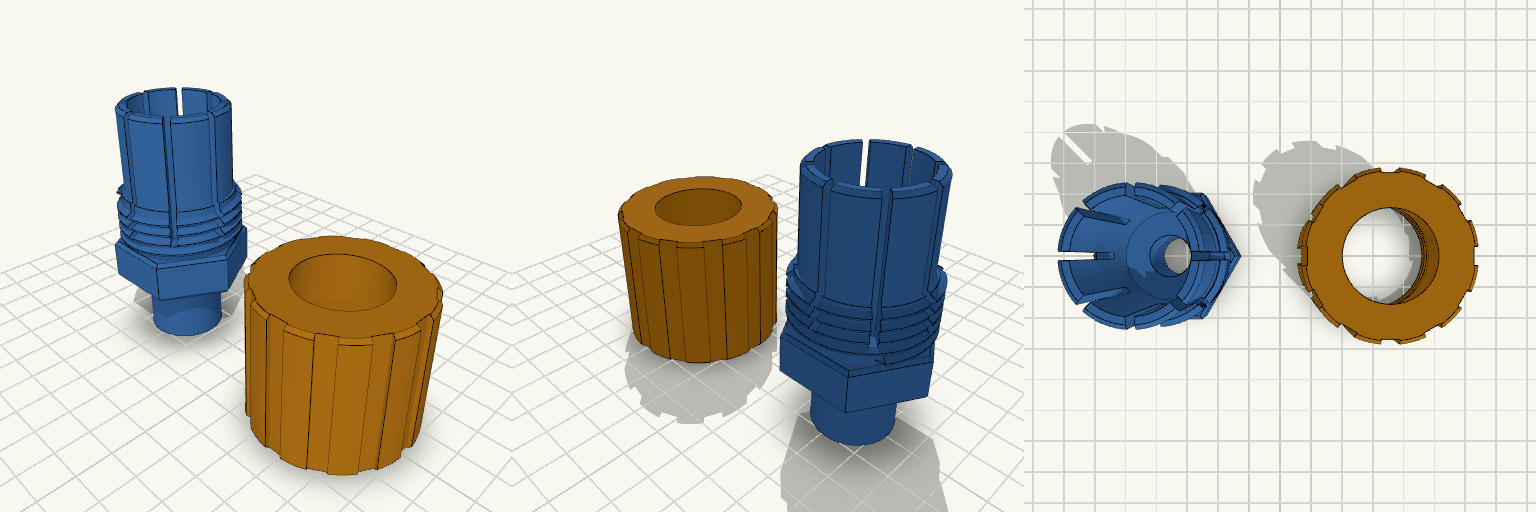

Tap adapter component
