TrailCam — MTB Helmet Mount
Created today
Description
A universal, strap-on action camera mount designed specifically for vented mountain bike helmets. The underside features a gentle spherical dish to sit stably against the curved crown of a helmet without wobbling, while wide side slots accept standard velcro loops or zip ties to lock it through the shell vents.
Features
- Standard 3-Prong: Fits all standard action camera housings and thumbscrews.
- Captive Nut Boss: The right prong is thickened to hold a standard M5 hex nut, making field adjustments simple.
- Universal Base: The 48x40mm footprint spans most helmet ridges, and the strap slots are dimensioned for thick reusable zip-ties or standard 20mm velcro straps.
Images
More like this
Explore more in Automotive, RC & Hobby →
CycMount — Toolless Camera Clamp
Introducing CycMount, a robust camera mount engineered to secure action cameras to standard 22mm bicycle handlebars. Built with frequent swaps in mind, it utilizes custom wing nuts for a completely tool-free installation, allowing quick transfers between bikes. The integrated three-prong interface is precisely dimensioned with 3mm thick fingers on a 5mm pitch, ready to accept standard action camera housings and a 5mm pivot bolt. Design Features Strength by Orientation: Both clamp halves print flat on their sides, aligning the layer lines perpendicularly to the clamping stress for maximum strength. Support-Free: The horizontal print orientation ensures the 22mm handlebar bore and the 5.2mm pivot hole print perfectly round without requiring slicer supports. Tool-Free Adjustments: Includes two custom wing nuts designed with integrated M5 hex nut traps. Required Hardware 3× M5 Hex Nuts (two for the wing nuts, one for the bottom clamp) 2× M5 Cap Head Bolts (for the main clamp body) 1× M5 Bolt (for the camera pivot)
Space Command Console Toy
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence. This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points. Printing Notes Dimensions: The base fits squarely on a 180x130mm footprint. Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine. Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed. Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.

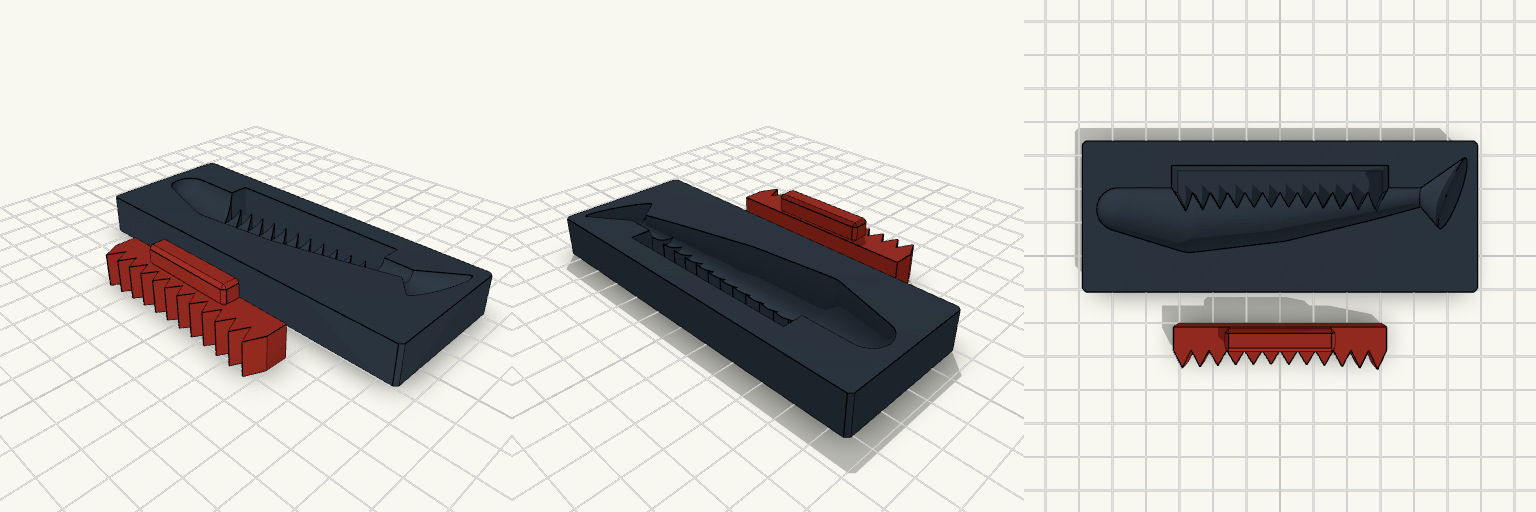

100mm Open-Pour Gummifisch-Form
