VoltGrid — Print-in-Place Battery Case
Created today
Description
A high-capacity, print-in-place storage case holding 104 AA batteries in a skeletal, material-saving grid. Designed specifically for FDM printing without supports.
Features
- Zero Assembly: Prints flat with a fully integrated, captive 45-degree cone hinge mechanism. Just pop it off the bed and fold it closed.
- Skeletal Organizer: The lower grid provides 0.4 mm of clearance for 14.5 mm diameter AA batteries, but uses open walls to drastically cut filament usage and print time compared to solid block designs.
- Snap Latch: A flexible cantilever tab locks the lid securely down over a heavy chamfered ledge on the bottom box.
Dimensions
- Flat Printing Footprint: 228 mm × 292 mm
- Closed Dimensions: 228 mm (W) × 142 mm (D) × 60 mm (H)
- Capacity: 104 cells (13 × 8 grid)
Images
More like this
Explore more in Storage & Organization →
104-Cell AA Battery Vault
This heavy-duty grid vault keeps 104 AA cells locked down and separated. The front closure uses a single wide flex-arm cantilever built straight into the lid. It swings down to snap automatically over a retaining ledge on the base, holding the lid firmly shut until you pull the finger grip outward. Clearance: 0.4 mm gap on all latch and hinge mechanisms Lid Mechanism: Print-in-place folded hinge Print Layout: Prints fully open and flat on the bed
Trinket Box With Captive Hinge
Most 3D-printed boxes rely on thin plastic living hinges that fatigue and snap off after a week of use, or require separate filament fragments as pins that eventually back out. This print-in-place trinket box uses a five-knuckle mechanical barrel hinge with integrated teardrop pins to prevent bridging collapse. A front thumb-tab with an offset detent provides a positive snap closure so the lid doesn't flap open when jostled in a drawer. Dimensions: 70 mm x 50 mm x 30 mm overall footprint. Walls: 2 mm solid perimeters for rigidity. Tolerances: 0.4 mm clearance inside the hinge barrel to prevent the knuckles from fusing during extrusion. Printing: Print fully closed, flat on the base. Requires no supports.
Side-Pinned 40-Quarter Dispenser
What it's for A fully mechanical, gravity-fed coin magazine tailored for standard U.S. quarters. It stores a full $10 roll vertically and dispenses exactly $1 (four quarters) per cycle into the palm of the hand. The mechanism relies on a two-stage sliding escapement, now utilizing a side-mounted limit pin to ensure the coin path remains entirely unobstructed during travel. Dimensions Overall Envelope (Dispenser): 34 × 56 × 75 mm (when closed) Slider Thickness: 7.2 mm Coin Bore: 25.2 mm (optimized for 24.26 mm quarters) Assembly The main body, slider, cap, and limit pin print separately without supports. Insert the slider into the main body track, align the side slot with the right-hand hole on the body, and push the limit pin flush into the side countersink to capture the mechanism. Remix ideas Threaded Cap: The top of the magazine tube features a coarse 4mm-pitch thread. Alter the tube height to make a shorter 20-coin version. Coin Bore: Tweak the internal offset diameter for other currencies or custom arcade tokens. Slider Thickness: Scaling the Z-dimension alters how many coins drop per pull (currently dialed for exactly four 1.75 mm thick quarters).

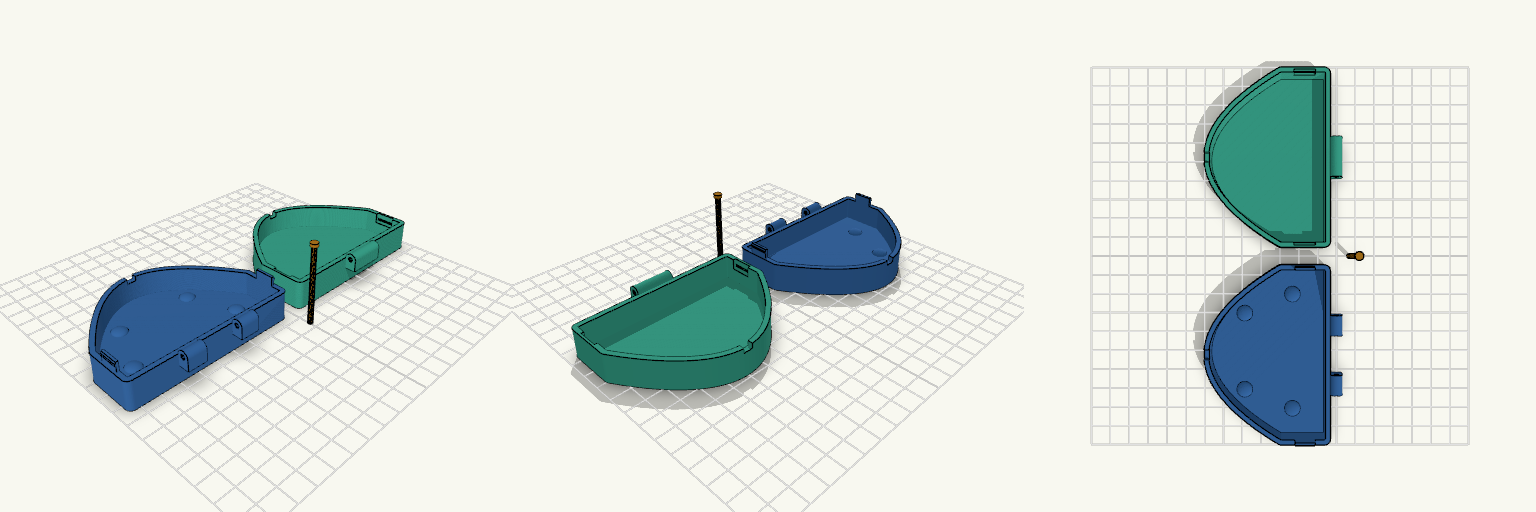

AutoBrush Head Travel Case
