Description

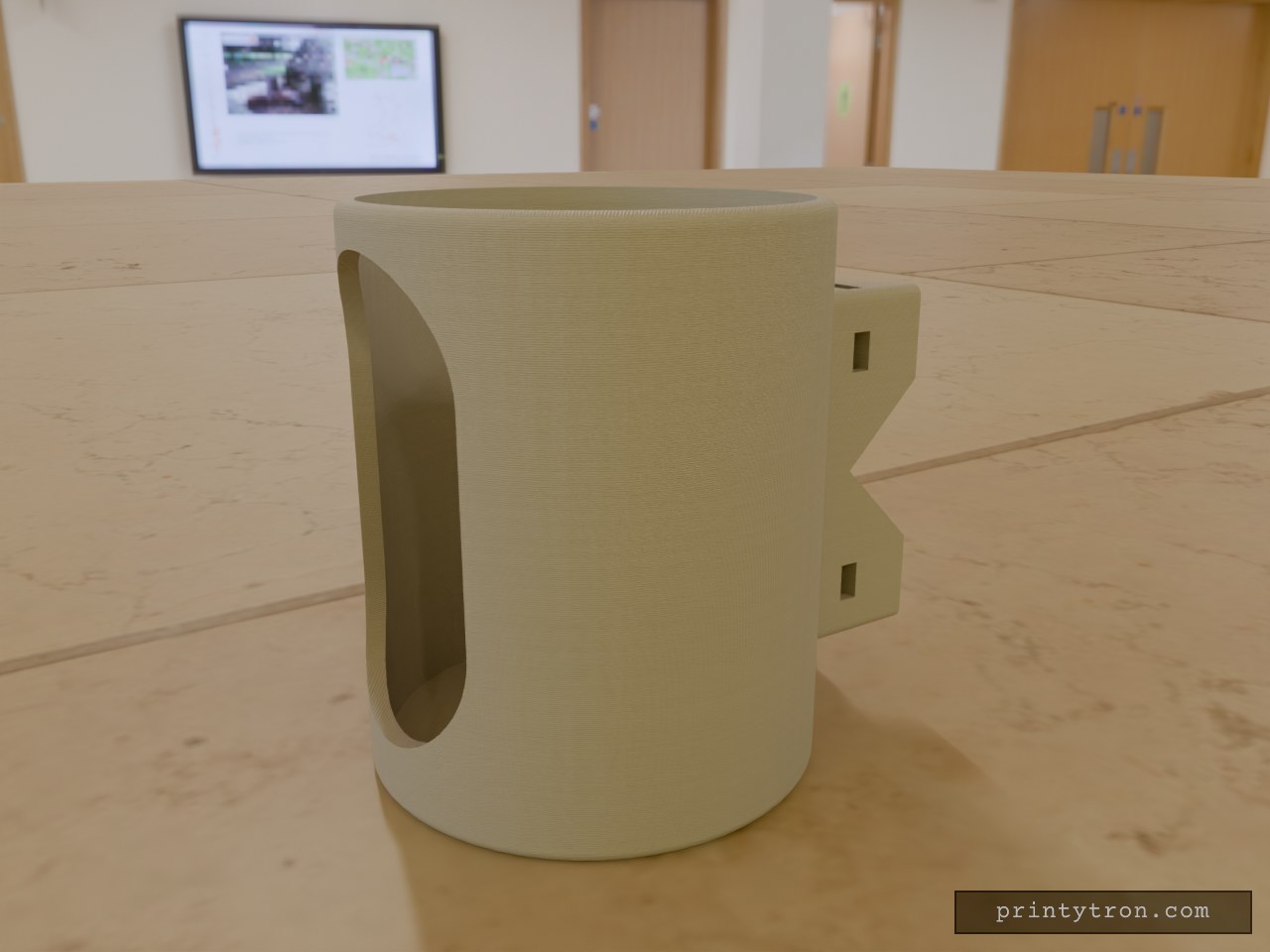

A lightweight, rigid drink holder built for a standard 66mm soda or beer can.
Rather than chasing an exact clamp fit for one specific handlebar diameter, it mounts using heavy-duty zip ties and an intersecting V-groove block. This geometry lets it lock tightly against round bars, odd-shaped commuter handlebars, or vertical stems without needing extra hardware. The arched front window trims weight while ensuring the overhang prints cleanly without supports.
The geometry here is built to be easily modded depending on what you're tying it to:
