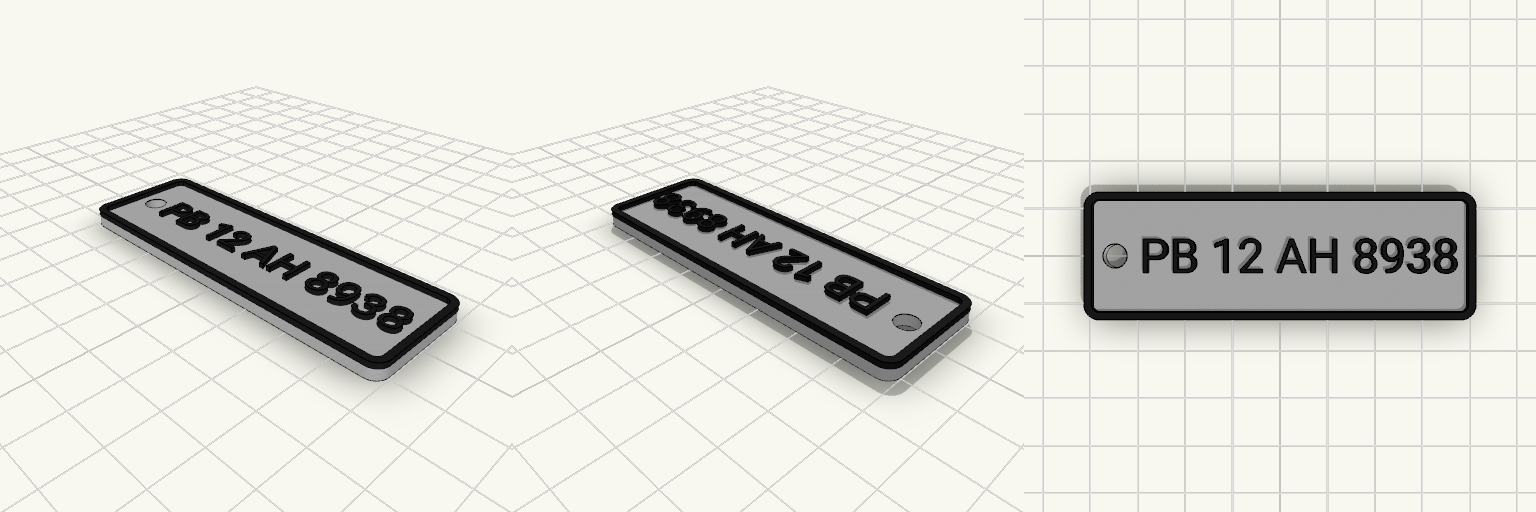

25mm Split Ring Registration Plate

Made by OnyxZebra

Created 1 months ago

Keychains & EDCsplit-ringfilament-swapembossed-textpetgluggage-tagfdm-optimized
Remix this model →

Description

Solid registration plate built to clear standard 25mm split rings.

The 4.5mm bore is strictly for split rings or small carabiners; it will not accept wide webbing or thick lanyards.

Print Specs

  • Footprint: 80mm x 20mm
  • Base Plate: 2.4mm thick.
  • Embossed Details: Text and border sit 0.8mm above the face. Stop the print at 2.4mm Z-height to swap colors.
