9-Camion
Created today
Description
Heavy-duty rear wheel designed for modular truck assemblies. Features an 84mm outer diameter with aggressive block treads and a deep-dish rim structure.
Built to transfer high torque from a printed axle without slipping. Prints flat on the inner face.
- Diameter: 84mm (including treads)
- Width: 30mm (32mm at hub)
- Axle bore: 9mm hex socket (across corners)
- Mounting: Prints flat on the Z-axis, no supports required.
- Material: Designed for rigid filaments like PLA or PETG.
Images
More like this
Explore more in Automotive, RC & Hobby →

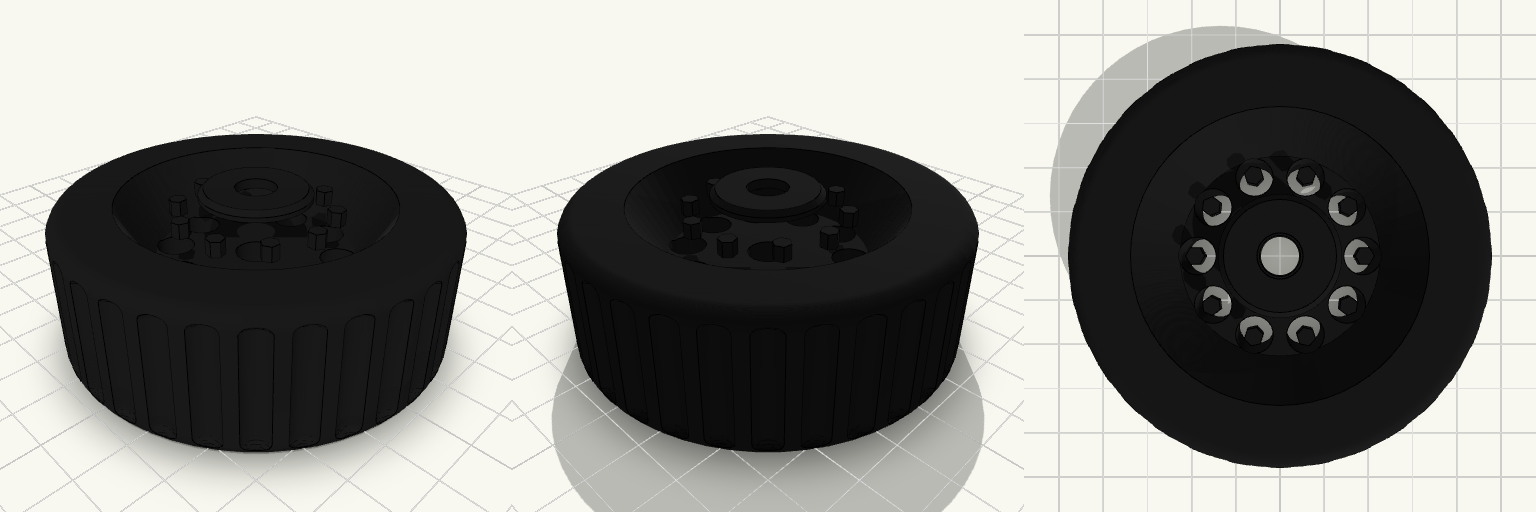

7-Camion
