Compact Hex Key Pouch
Created 4 days ago
Description
A compact, low-profile pouch for a standard set of seven metric Allen keys (2 mm through 8 mm). Designed for belt or pocket carry, the main body is slimmed down and heavily rounded to prevent it from catching on clothing or digging in while working. The holes run completely through the block so sawdust and metal shavings cannot collect inside.
What it's for
Keeps your hex keys organized and immediately accessible on a belt or work apron. The integrated spring clip features a tightly radiused catch designed to grip fabric securely without feeling bulky.
Dimensions
- Overall footprint: 68 × 16 mm (body), plus 6.5 mm depth for the clip.
- Height: 50 mm.
- Hole diameters: 8.5, 6.5, 5.5, 4.5, 3.5, 3.0, and 2.5 mm, providing a comfortable 0.5 mm clearance for each key.
Print notes
Print upright as oriented (the flat base on the bed). The through-holes require no supports, and the integrated clip relies on the Z-axis layer strength — PETG or ABS is highly recommended for the flex and durability of the clip, though PLA works for lighter duty.
Images
More like this
Explore more in Workshop & Tools →
Inline Screw Driver Retainers
These four independent sleeves snap over the shaft of a screwdriver (or hex bit) and grip the screw from the sides, making overhead installation much safer. The driver bit drops straight through the open top to engage the screw head directly. As the screw bites into the material, the flexible jaws slide back up the driver shaft, releasing the screw automatically without jamming against the ceiling. What it's for Holding screws securely to a driver for overhead work Accommodates four size ranges (1–8 mm screw diameters) Slides freely on the driver shaft as the screw drives home Dimensions Tiny: Fits 1–2.5 mm screws (red) Small: Fits 2.5–4 mm screws (yellow) Standard: Fits 4–6 mm screws (green) Large: Fits 6–8 mm screws (blue) Wall thickness tapers down to ~1.5 mm at the jaws for optimal FDM flexibility. Print notes Print them standing vertically (as oriented) so the layer lines follow the curve of the C-clip. This ensures maximum lateral flexibility when snapping screws in from the side. No supports required.
Acoustic Harmonica Silencer Enclosure
A custom-designed acoustic enclosure built to fit a standard 10-hole diatonic harmonica (specifically dimensioned for the Fender Blues Deluxe). This silencer is built to drop external volume during practice while preserving a totally natural playing feel. The enclosure features a wide front opening that allows direct lip contact with the harmonica body, avoiding any forced embouchure changes. The rear of the enclosure acts as a miniature acoustic labyrinth, forcing outgoing air through staggered baffles and multi-chamber pathways to break up sound waves before they exit the exhaust ports. Remixing and Assembly Clearances: The default harmonica cavity includes a 0.4mm clearance, with 4mm of allocated depth at the rear for installing your own acoustic foam. Two-Piece Shell: The model splits into a top and bottom shell, joined by integrated friction-fit alignment pins. Print Settings: Prints completely support-free when the large flat mating surfaces are placed face-down on the build plate. PLA or PETG recommended for rigidity and snap-fit durability.

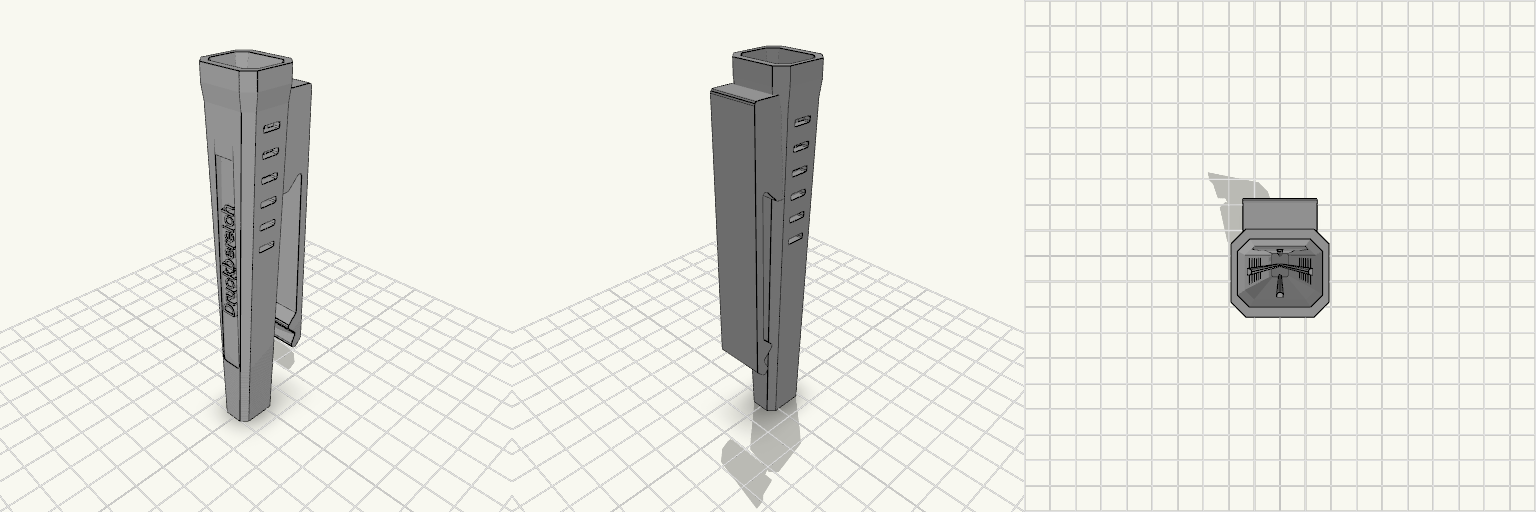

Tapered Scissor Belt Holster
A streamlined, rigid hard-plastic holster designed for holding professional scissors or shears vertically on a belt. Features an exact 20 mm top width with a subtle taper down to a flat reinforced bottom. Fully enclosed internal cavity accommodates 10 mm shears with integrated anti-rattle ribs. Single-piece print includes a heavy-duty 45-degree support-free belt hook. Flush embossed "Druckbereich" branding on the front plate.
small Bottle Syringe Clip
A custom-sized double ring designed to couple a 14.5 mm syringe to a 31 mm bottle neck. Syringe bore: 14.5 mm with an 8 mm front insertion slot Bottle bore: 31 mm (snaps on via a 22 mm back slot) Clearance: 4 mm bridge spacing The branding is now recessed 0.6 mm directly into the bottle ring's inner wall, keeping the outer profile completely flush. Check your syringe outer barrel measurement before running this.
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.
Hilti Nuron Battery Mount
A wall-mounted receiver bracket for Hilti Nuron batteries. Heavy battery packs love to lever short brackets right out of the drywall. This bracket gives them a solid vertical footprint to spread that load, catching the battery's sliding interface on an internal U-channel with a dead stop at the base. Internal Channel: 63mm wide (48mm opening) Clearance: Counter-sunk screw holes keep the hardware below the sliding surface Detail: Features a debossed HILTI logo on the backplate that stays clear of the sliding path
