dimensions test plate
Created today
Description
A specialized, low-profile custom plate designed to tight dimensional constraints. Measuring exactly 1mm thick, it provides a precise mounting or spacing surface with asymmetrical bore sizes.
Specifications:
- Dimensions: 50mm length, 25mm width, 1mm thickness.
- Primary Bore: 18.5mm diameter.
- Secondary Bore: 16.5mm diameter.
- Clearances: Exactly 5mm of material left between the outer edges and the bores, as well as between the bores themselves.
Images
More like this
Explore more in Workshop & Tools →

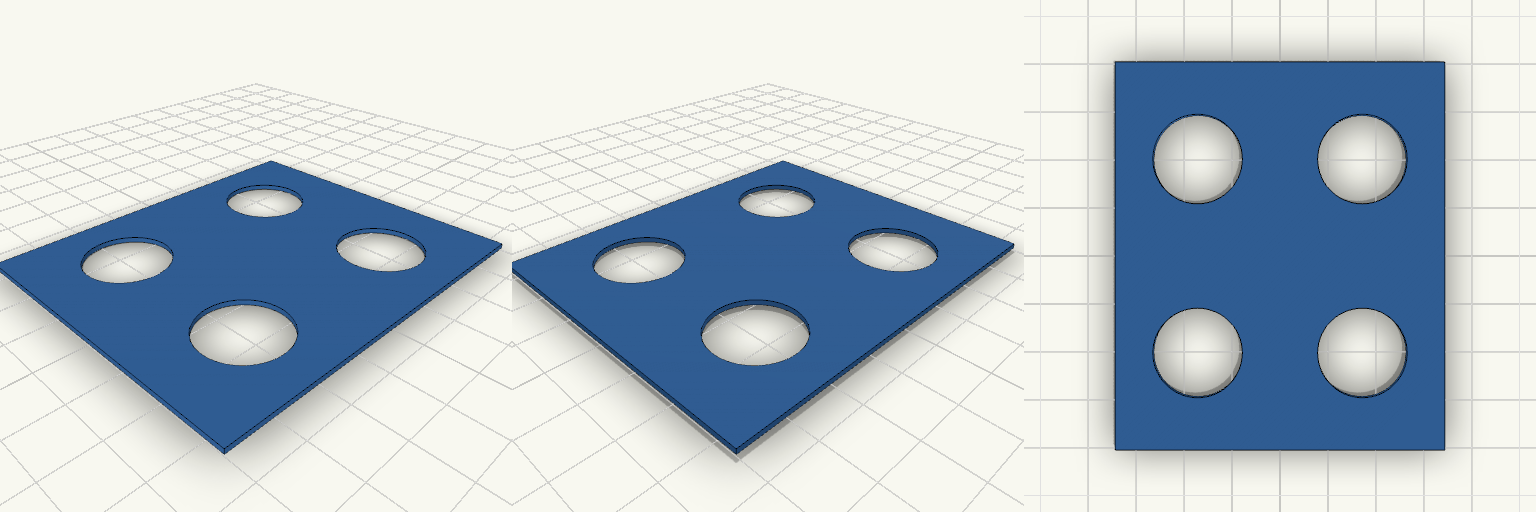

4 hål test prototyp
A simple 68x80mm rectangular mounting plate with a 1mm thickness, fitted with four 18.5mm through-holes. Remix and Adjust Plate Thickness: Currently at 1mm for a fast, flush fit. If you need it to bear weight, bump this up to 3mm or 5mm. Hole Clearance: The 18.5mm holes are sized to give half a millimeter of wiggle room on standard 18mm hardware. Hole Spacing: Spaced at 34mm across the short axis and 40mm along the long axis. Adjust those translate distances if your mounting hardware changes.
fence conector
A minimalist, heavy-duty H-profile block. Designed with tight inner clearances and thick outer walls, this spacer is ideal for slotting over rails or serving as a sturdy structural bracket. Dimensions Overall Size: 36mm wide × 50mm deep × 40mm high. Inner Channel: 16mm gap width. Wall Thickness: Solid 10mm posts on either side. Print Notes Prints cleanly on its back or base without supports. The 3mm edge rounding improves handling and prevents stress concentrations at the corners.
Grey I-Shaped Bracket
A custom I-shaped bracket featuring a 36x50x40 mm outer profile and 15.5 mm side cutouts. Designed with rounded edges for a clean finish and smooth handling. Overall Dimensions: 36 mm wide, 50 mm deep, 40 mm tall Cutouts: 15.5 mm high spacing on the sides Features: 3 mm edge rounding Material: Fits standard filaments perfectly

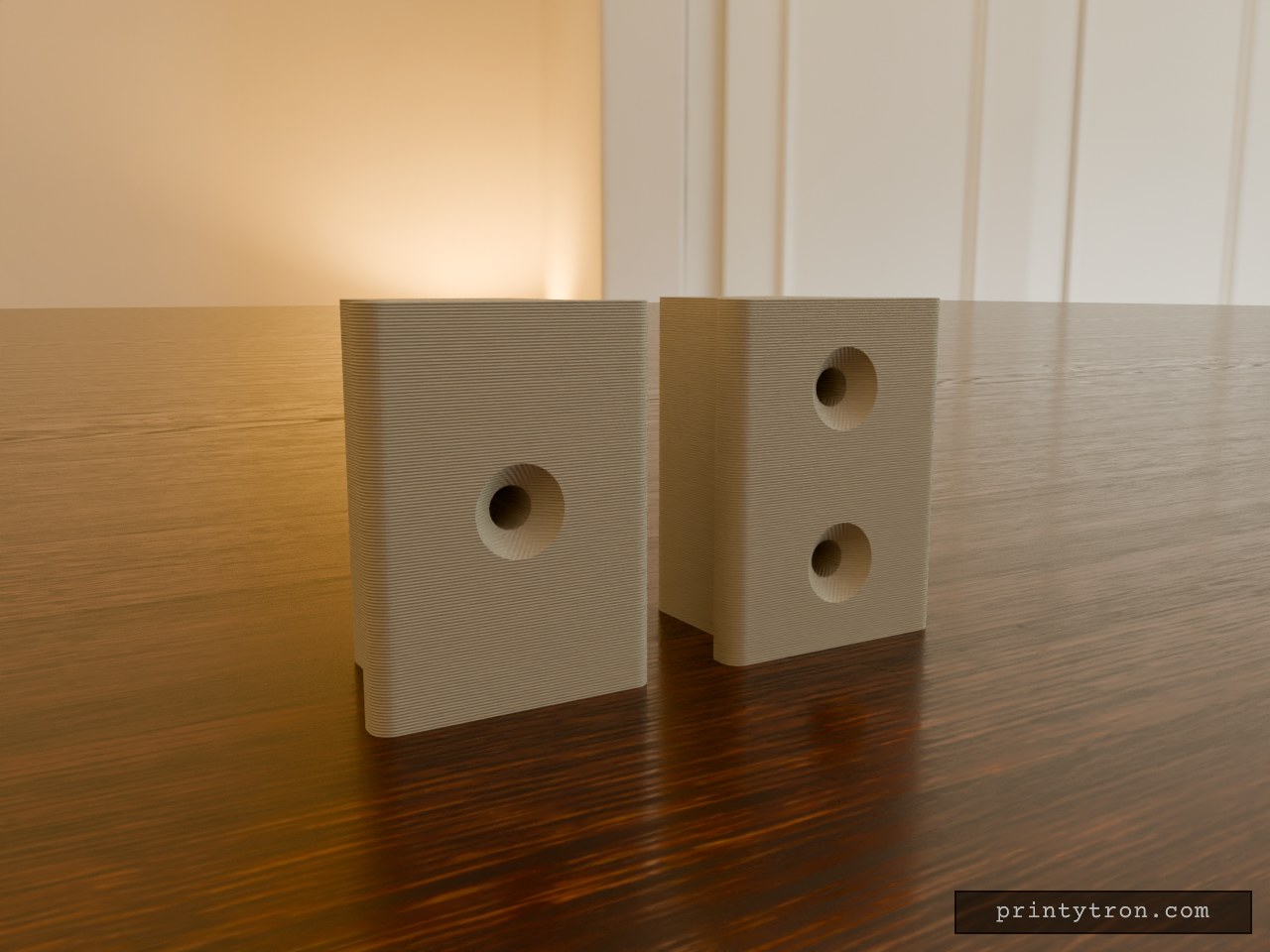

T-Shaped Mounting Blocks
