M2 Slotted GO 3S Mount
Created 1 months ago
Remixed once
Description
Fixed-angle TPU sleeve for the standalone Insta360 GO 3S camera, geared for flat-top drone frames like the AOS series.
- The Fit: Holds the bare GO 3 / GO 3S camera unit only (not the Action Pod).
- The Mount: Slotted M2 tracks spanning 19mm to 27mm, meant to catch 20x20 or 25.5x25.5 top plate hardware.
- The Pitch: Locked at 25 degrees of up-tilt.
Print in TPU. Do not try this in rigid plastics; you'll never get the camera seated.
Images
More like this
Explore more in Automotive, RC & Hobby →
GOpro fieur skadis
A sturdy, mechanical mount that attaches standard GoPro gear to an IKEA SKÅDIS pegboard. Unlike standard static mounts, this design features a vertical hinge axis allowing the camera to pan left and right, making it ideal for overhead workspace recording or fixed security angles. The design relies on an M5 bolt and nut to clamp the vertical rotation axis firmly in place once the angle is set. The quick-release buckle block prints separately for optimal layer orientation, plugging into the rotating base plate. Assembly Base: Locks into two standard SKÅDIS slots without tools. Mechanism: Insert an M5 bolt through the side clamp, trap an M5 nut in the hex recess, and tighten with the printed knob. GoPro Buckle: Glues or presses onto the two registration pegs atop the rotating platform. Slide your standard GoPro helmet buckle straight in.
ClipBase — VW Door Mount
A direct replacement mount for a broken VW Golf 6 door panel clip (6Q0 868 243). Designed to be printed in a weldable polymer (like PP) and permanently reattached to the interior door panel using a plastic welder or soldering iron. Features Weld-Ready Base: Completely flat 32x25 mm bottom footprint maximizes the surface area for a strong perimeter weld. Tapered Insertion: V-shaped entry path allows the door clip to self-center during installation, ending in a secure 4 mm snap-fit neck. D-Shaped Profile: Rounded rear geometry eliminates sharp corners that could catch during the welding process, while saving material. Precision Cavity: Two-tier internal structure correctly houses both the 22 mm clip head and the 8 mm shaft without play.
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope
Traxxas Slash Wedge Front Bumper
A replacement front bash bumper for the Traxxas Slash RC chassis, designed to replace broken stock parts after hard curb impacts. The leading edge is tapered into a skid-plate wedge to force the chassis up and over obstacles rather than absorbing direct frontal collisions. Mounting Interface: Two M3 clearance holes on a 25 mm pitch, recessed 8 mm from the rear face. Hardware Fitment: Counterbored 4 mm deep on the underside to protect M3 socket head screws from ground abrasion. Profile: Tapers from a 15 mm rear mating surface down to a 10 mm leading edge, providing a sloped glide plane. Width: 104 mm across the front face for wide coverage of the front bulkhead.

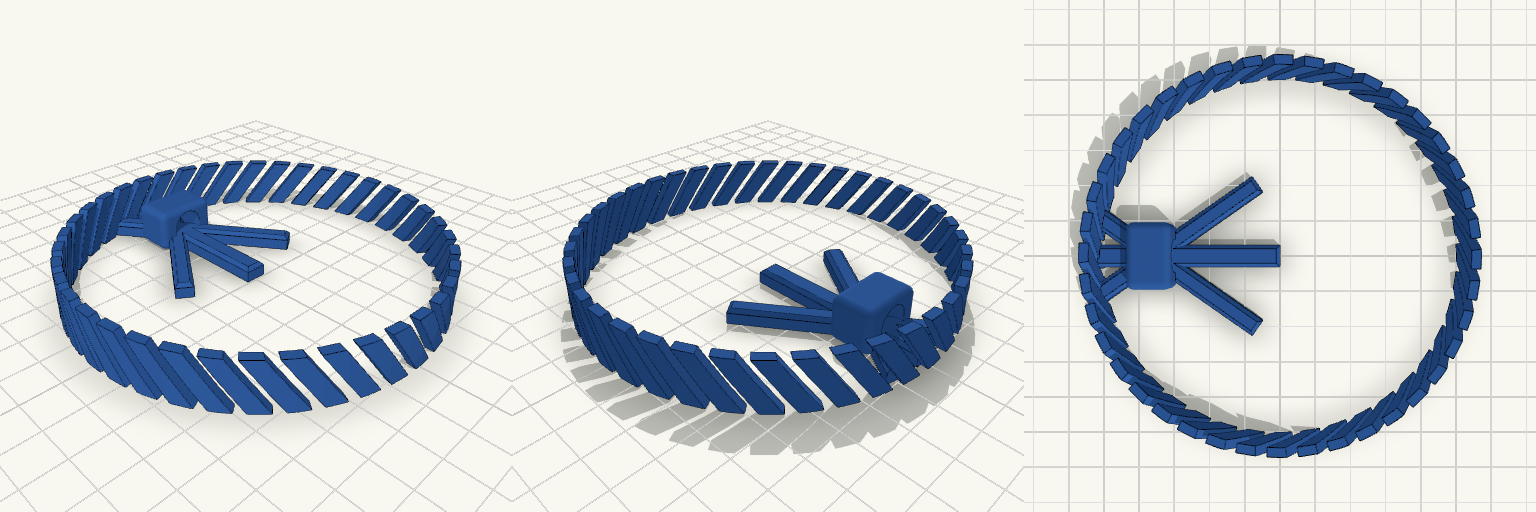

AeroGuard — Latticed Prop Guards
