Micro Quadcopter Frame with Skids
Created today
Description
A lightweight unibody quadcopter frame designed for micro builds.
- Central Chassis: Hollowed core with standard mounting clearances for electronics.
- Motor Mounts: Integrated cups sized for 7x16mm coreless motors.
- Landing Gear: Separate skid-style legs printed alongside the main frame.
The frame sits flat on the plate for an easy print without supports.
Images
More like this
Explore more in Automotive, RC & Hobby →
Solid Core Quadcopter Frame
A solid unibody quadcopter frame designed to hold four micro drone motors. Features: Solid central chassis block Swept structural arms Motor mounts with clearance for 8.5mm motors Unified 8mm frame thickness with 7.5mm arms

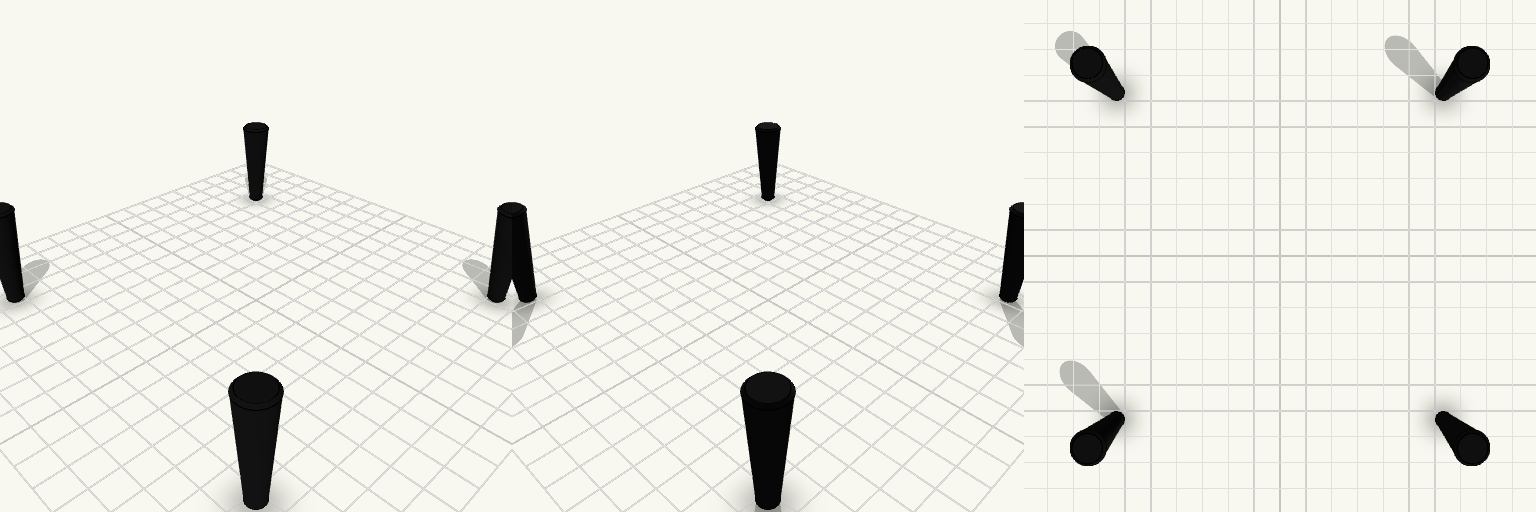

Drone Landing Legs
