OO Scale Georgian Townhouse Facade
Created 4 days ago
Description
What it's for
A classic Georgian-style townhouse facade designed for OO scale (4mm to 1 foot) model railway backdrops. The model is presented as a flat-pack kit. The main facade features deeply cut ashlar grooving on the ground floor, classic protruding quoins along both edges, and a prominent cornice.
To make painting easier, the door and windows are provided as separate, drop-in pieces. Each window features 6-over-6 pane glazing bars, a sturdy lintel, and a sill. The door has six traditional panels and a distinctive triangular pediment. Small 1mm locator blocks on the back of each insert ensure they sit perfectly centered in the facade holes while hiding the seams. Shallow side walls and a roof cap are included to give the facade structure and depth.
Dimensions
- Scale: OO (1:76.2)
- Facade: 80mm wide by 130mm high
- Side Walls: 20mm deep
- Door Opening: 12mm x 28mm
- Windows: Five large inserts for the ground and first floors; three slightly shorter inserts for the second floor.
Assembly
Everything prints flat on the bed. Once painted, slide the windows and door into their respective holes in the main facade — the oversized outer frames will overlap the cutouts for a flawless finish. The side walls can be glued flush to the back edges of the facade, and the flat roof slots securely between them.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
OO Scale Terrace Houses Half Relief Flat Pack
What it's for A three-house flat-pack terrace kit designed for OO gauge (4mm to the foot) railway modeling. Includes a unified front facade, separate sloped end panels, a tiled roof spanning all three dwellings, and individually printed window and door inserts. The flat-pack layout ensures pristine surface details right off the build plate without relying on supports. Dimensions Total Span: 180 mm wide facade (matching standard OO scale footprints for a terrace trio). Max Height: 85 mm at the rear roof peak. Inserts: Doors scaled accurately to 26 mm tall, with classic 18 mm sash windows. Assembly The main panels feature precision 45-degree mitred edges on the front and sides for seamless corner joints. Interlocking stone quoins wrap neatly around the assembled corners. Print the window and door inserts separately, paint as desired, and secure into the recessed front facade openings.

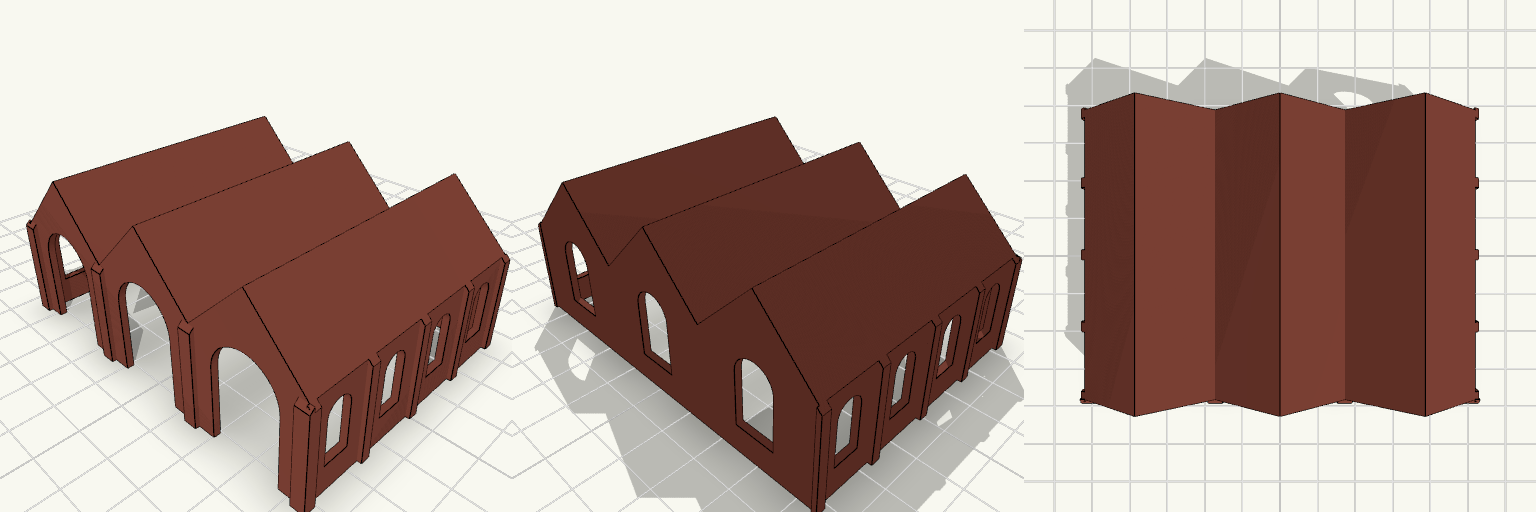

N Gauge tram Depot
