OO Scale Low-Relief Georgian HouseKit
Created today
Description

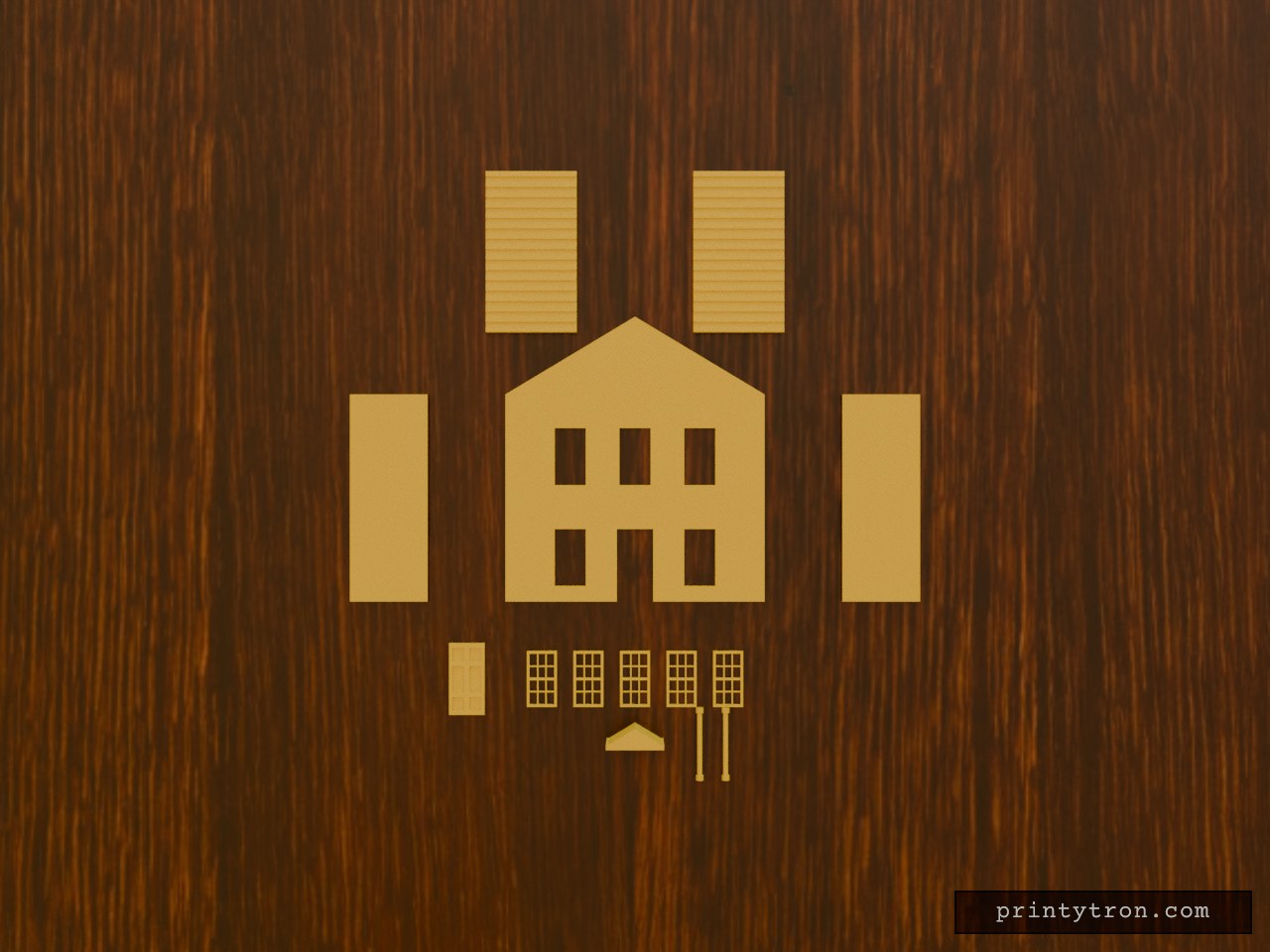

A low-relief flat-pack Georgian building scaled for OO gauge (4mm to the foot). The kit prints flat and features inner 45-degree miters on the walls for clean 90-degree outer corners.
Remix Hooks
- Scale: Set up for OO (1:76), but scales down to N or up to O nicely if you check your tolerances on the drop-in parts.
- Clearances: The windows and doors are designed with a slight undersize to allow for a coat of paint before dropping them in.
- Roofs: Sized at 35mm deep to give a 5mm overhang past the 30mm side walls, and long enough to meet at the ridge and clear the eaves. They feature a stepped slate/tile texture.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
OO Scale Georgian Townhouse Facade
What it's for A classic Georgian-style townhouse facade designed for OO scale (4mm to 1 foot) model railway backdrops. The model is presented as a flat-pack kit. The main facade features deeply cut ashlar grooving on the ground floor, classic protruding quoins along both edges, and a prominent cornice. To make painting easier, the door and windows are provided as separate, drop-in pieces. Each window features 6-over-6 pane glazing bars, a sturdy lintel, and a sill. The door has six traditional panels and a distinctive triangular pediment. Small 1mm locator blocks on the back of each insert ensure they sit perfectly centered in the facade holes while hiding the seams. Shallow side walls and a roof cap are included to give the facade structure and depth. Dimensions Scale: OO (1:76.2) Facade: 80mm wide by 130mm high Side Walls: 20mm deep Door Opening: 12mm x 28mm Windows: Five large inserts for the ground and first floors; three slightly shorter inserts for the second floor. Assembly Everything prints flat on the bed. Once painted, slide the windows and door into their respective holes in the main facade — the oversized outer frames will overlap the cutouts for a flawless finish. The side walls can be glued flush to the back edges of the facade, and the flat roof slots securely between them.
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope

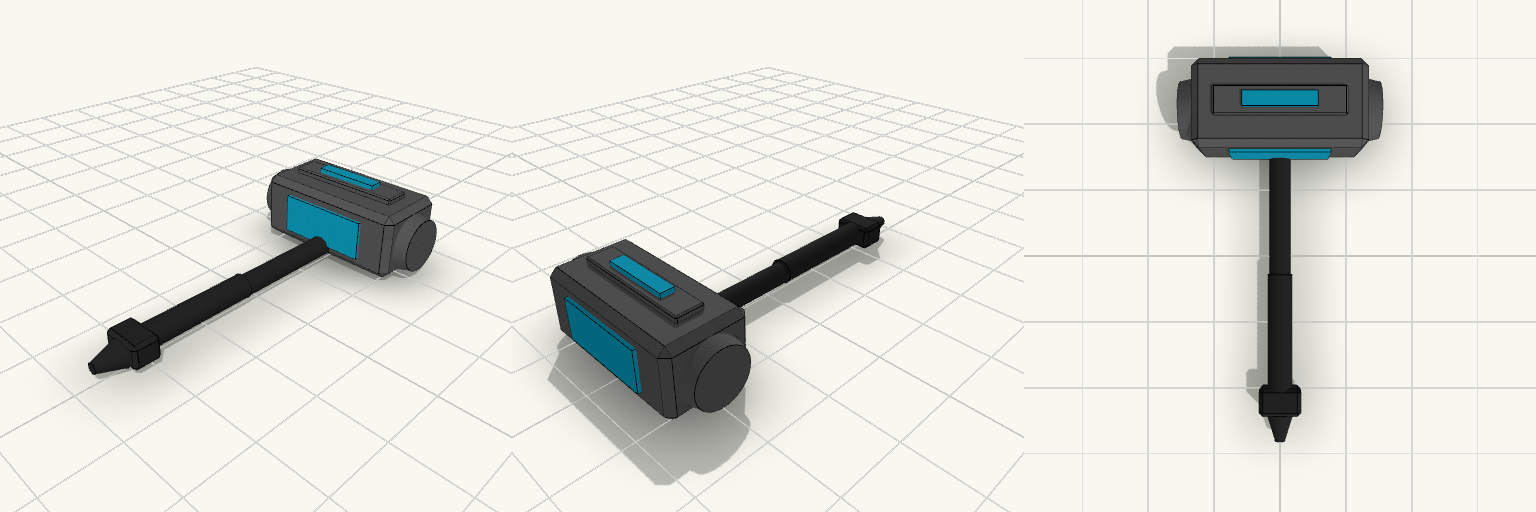

Minifig Gravity Hammer
An overpowered sci-fi gravity hammer designed specifically for standard building block minifigures. Perfect Fit: The main shaft is modeled at 3.2mm, allowing a standard minifigure hand to clip onto it easily. Support-Free: The entire weapon is oriented to print perfectly flat on the build plate. Details: Features a thickened grip area, a spiked pommel, and glowing energy nodes on the primary striking block.

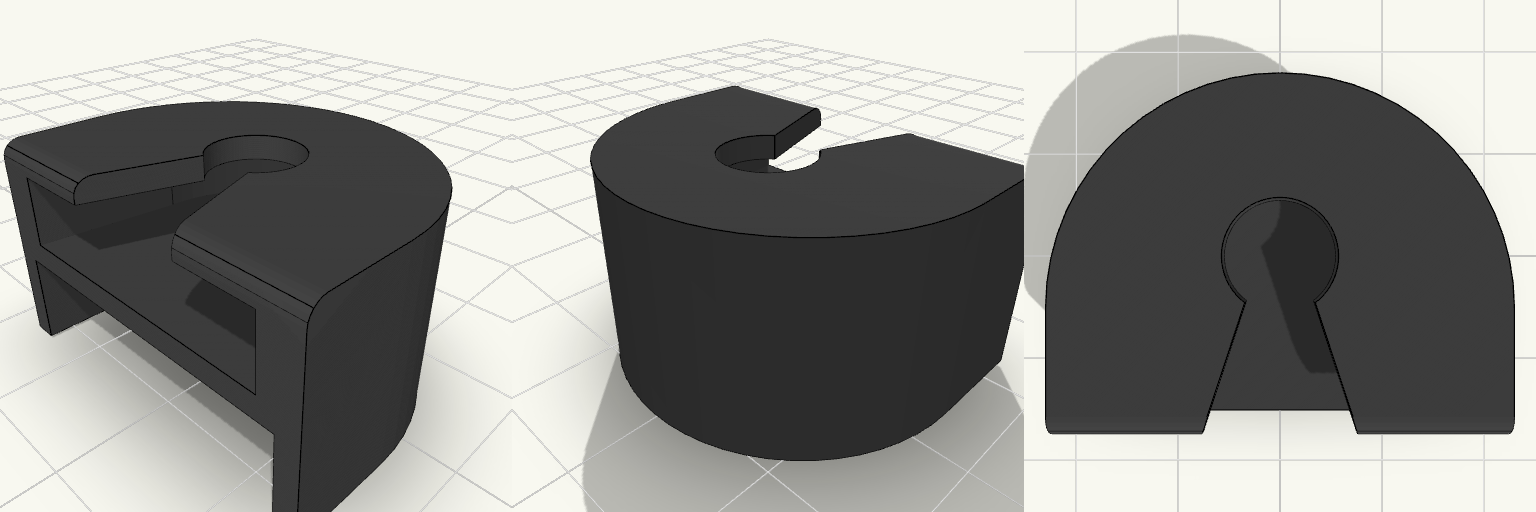

Utilitarian Door Clip Holder
