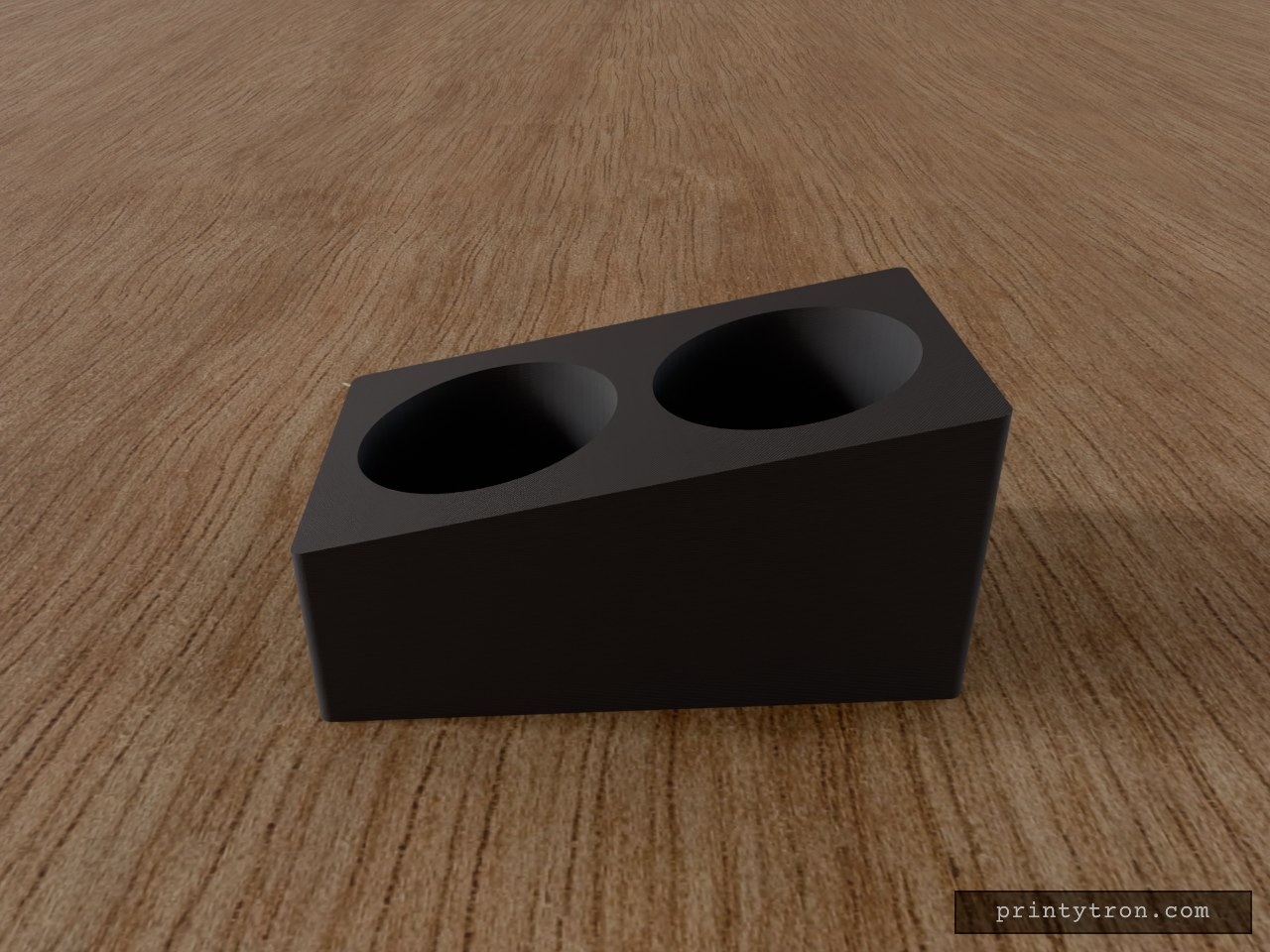

Passat B6 Console Cup Holder 1.2v
Created today
Description
A drop-in dual cup holder insert designed to fit the console space next to the handbrake in a 2006 Volkswagen Passat B6. The wedge-shaped body maintains a flush, horizontal top surface while following the sloped floor of the compartment underneath.
- Fitment: 180mm x 105mm footprint, tapering from 90mm down to 55mm in height.
- Capacity: Two 75mm diameter slots. The forward slot runs 75mm deep, and the rear slot sits 60mm deep to accommodate the console's slope.
- Features: Flared top lips for easy alignment, internal bottom fillets, and 5mm center drainage holes to handle condensation.
- Tolerances: Generous minimum wall and floor thicknesses (≥4mm throughout) ensure structural rigidity without requiring internal supports.
Photos
Technical views
