Description
bas for box
Images
More like this
Explore more in Storage & Organization →

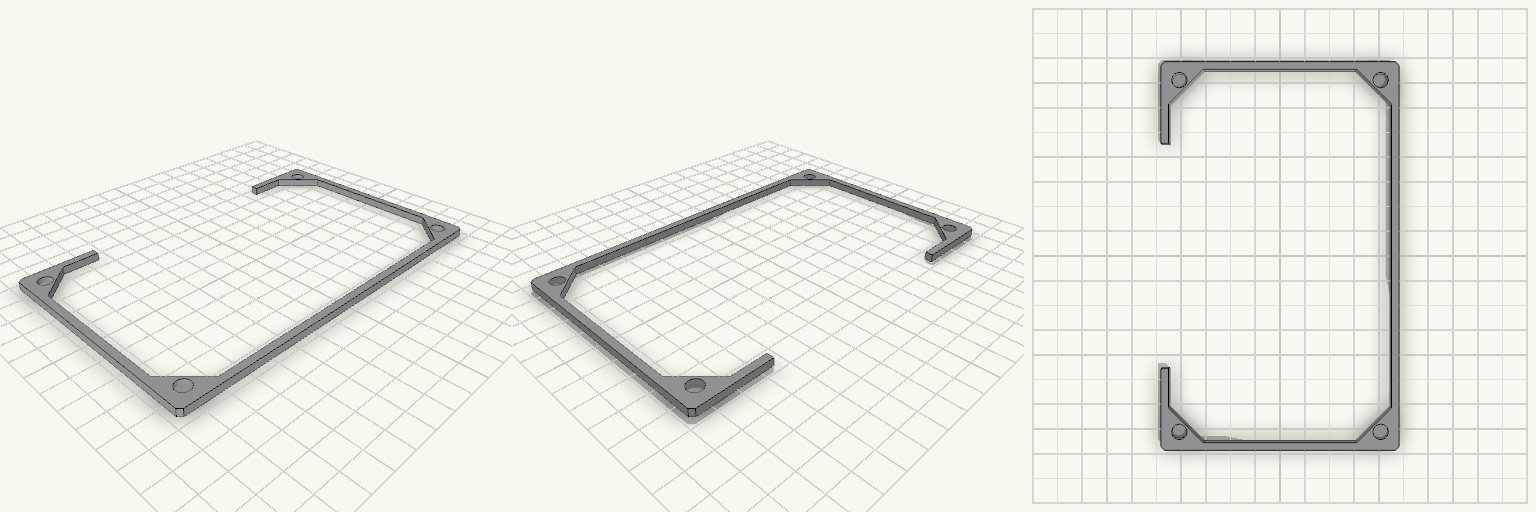

Petersson 95x155 v2 large
A 3 mm tall rim frame, 95 x 155 mm outside, with 3 mm thick walls and a triangular gusset in each corner. Each gusset has a 6.1 mm round pocket. Fit notes Outer size: 95 x 155 mm. Inner opening: 89 x 149 mm. Gussets: 16 mm legs, 3 mm thick, with a 6.1 mm pocket 2.1 mm deep. The -X wall has a 90 mm gap, centred along the 155 mm length. Check before printing Measure the opening you are mating to against 89 x 149 mm. This frame is not adjustable and does not fit anything with a different bore.
Petersson 95x80 v2
A 95 × 80 mm open-top tray, 50 mm tall, with 2 mm walls and a 2 mm floor. What it has 1.5 mm chamfers on the bottom edges and vertical corners; the top rim stays square. Four triangular corner gussets at the rim (z 47–50 mm), each with a 6.1 mm pocket 2.1 mm deep. A 44 mm long, 45 mm tall cut-out in the centre of the -X wall, leaving a 5 mm bottom lip. 13 vertical grooves (2 mm wide, 0.8 mm deep) on the outside of the +X wall. Check before printing The cut-out is 44 mm long so it stays clear of the gussets. Wider cut-outs would cut into them. Does not fit The earlier 155 mm length is gone; the tray is now 80 mm long.
peterson 80x95 v3
sdf
Apothecary Box With Lift-Off Lid
A classic apothecary-style storage box, 6" x 4" x 2", with a separate lid whose inner lip plugs into the body. The two pieces are laid out side by side for viewing and print as two separate jobs, so each fits an 18 x 18 cm bed. Body: 152.4 x 101.6 x 47.5 mm, 2.4 mm walls, chamfered edges Lid: 152.4 x 101.6 mm, 3 mm plate with a 5 mm plug lip Fit: 0.3 mm clearance between lip and body recess Print the lid flat with the lip facing up, no supports needed
Two-Piece Gridfinity Caliper Box
A 6 x 3 unit Gridfinity caliper box split at the middle into two halves, each about 126 x 126 x 25.4 mm, so each fits a 150 mm print bed. Two dovetail keys join the halves. The stepped pocket holds a 9.25 in caliper: a 15.9 mm body slot and a 78 x 97.5 mm head recess, both 12.7 mm deep. The stacking lip and finger scoops are kept. Remix hooks Split position: the cut is at X = 0, on a Gridfinity cell boundary. Moving it in whole 42 mm steps keeps the cells intact. Dovetail size: 8 mm at the root, 13 mm at the tip, 16 mm tall, at Y = ±35. The socket has 0.25 mm clearance. Loosen or tighten it to suit your printer. Joint type: swap the dovetails for round pins or add glue grooves. Pairs with: other Gridfinity bins on a 42 mm baseplate.
Drawerling — 115 x 150 Desk Drawer Bin
Drawerling is an open-top rectangular bin sized for a desk drawer, built to exact external dimensions of 115 × 150 × 60 mm. Straight walls, a solid floor and softly rounded vertical corners make it easy to wipe clean and print without supports. Dimensions External: 115 mm wide × 150 mm deep × 60 mm high Walls: 2 mm Floor: 2 mm, solid Corner radius: 4 mm (vertical edges) Features Fully open top, no lid, hinges or handles Flat base for support-free FDM printing Single watertight body, STL-ready
