Round Adjustable GPU Support, 20–30 mm
Created today
Description
Two-piece screw support for propping up a GPU against a flat surface. A round base with a threaded boss receives a threaded post topped by a flat round pad. Turning the post adjusts the height.
- Base: 50 mm round plate, 15 mm tall threaded boss
- Post: 16 mm diameter thread, 20 mm long, 3 mm pitch
- Pad: 40 mm round disc, 5 mm thick
- Lowest height: 20 mm (pad top, post fully down)
- Highest height: about 30 mm, with roughly 10 mm of thread still engaged
- At the lowest setting the thread end protrudes about 5 mm below the base
- Print the post and base separately; test the thread fit and adjust clearance if needed
Images
More like this
Explore more in Workshop & Tools →

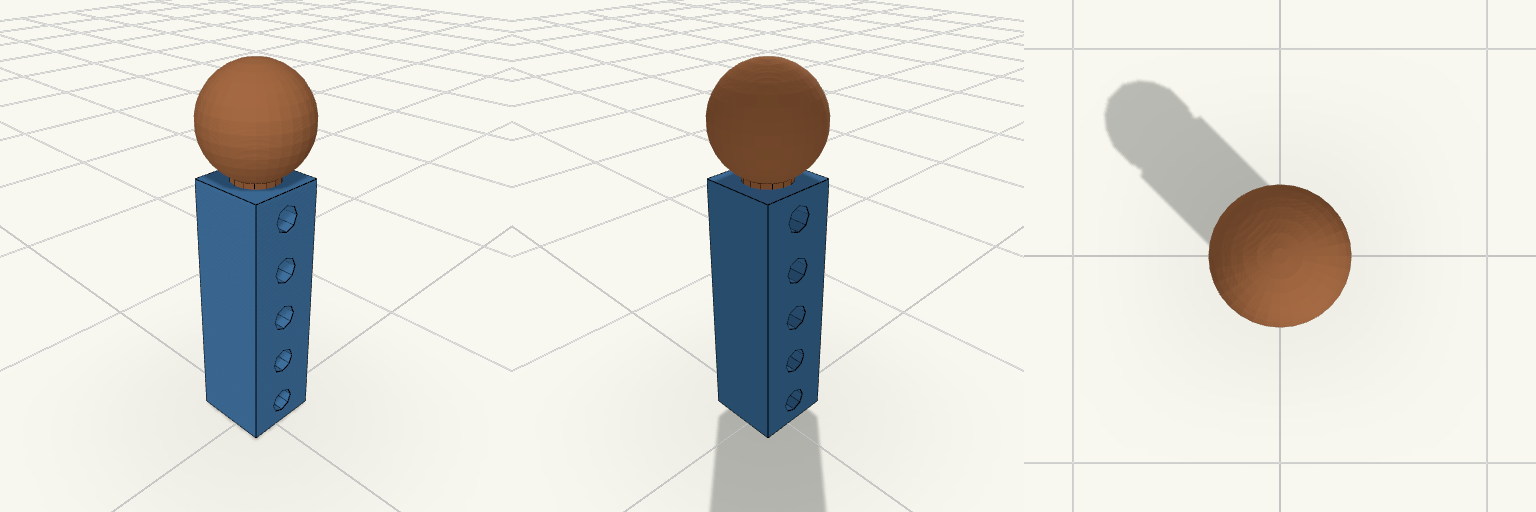

square ball hitch
