Self-Centering V-Block Finder
Created today
Description
A precision marking tool designed to locate the exact center of round and square stock. Eliminates the need to eyeball center lines when preparing material for drilling, turning, or joining.
What it's for
- Self-Centering Base: A 90-degree V-groove securely seats the tool on both round dowels and square cuts.
- Tapered Pencil Slot: The marking slot tapers from 6mm down to a 1.5mm slit, physically forcing the pencil lead onto the true center line.
- Corner Relief: The apex of the V-groove includes a circular relief, preventing the sharp corners of square stock from binding.
Dimensions
- Stock Compatibility: Accommodates material widths from 10mm up to 60mm.
- Overall Size: Measures roughly 86mm wide and 90mm long.
- Base Plate Thickness: The main plate is 4mm thick, providing a rigid straight edge.
Remix ideas
- Extend the length of the plate and slot for marking deeper along the stock.
- Widen the V-arms to accommodate larger stock sizes like fence posts.
- Modify the slot taper to perfectly capture a specific mechanical pencil or marking knife.
Images
More like this
Explore more in Workshop & Tools →
Inline Screw Driver Retainers
These four independent sleeves snap over the shaft of a screwdriver (or hex bit) and grip the screw from the sides, making overhead installation much safer. The driver bit drops straight through the open top to engage the screw head directly. As the screw bites into the material, the flexible jaws slide back up the driver shaft, releasing the screw automatically without jamming against the ceiling. What it's for Holding screws securely to a driver for overhead work Accommodates four size ranges (1–8 mm screw diameters) Slides freely on the driver shaft as the screw drives home Dimensions Tiny: Fits 1–2.5 mm screws (red) Small: Fits 2.5–4 mm screws (yellow) Standard: Fits 4–6 mm screws (green) Large: Fits 6–8 mm screws (blue) Wall thickness tapers down to ~1.5 mm at the jaws for optimal FDM flexibility. Print notes Print them standing vertically (as oriented) so the layer lines follow the curve of the C-clip. This ensures maximum lateral flexibility when snapping screws in from the side. No supports required.
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.

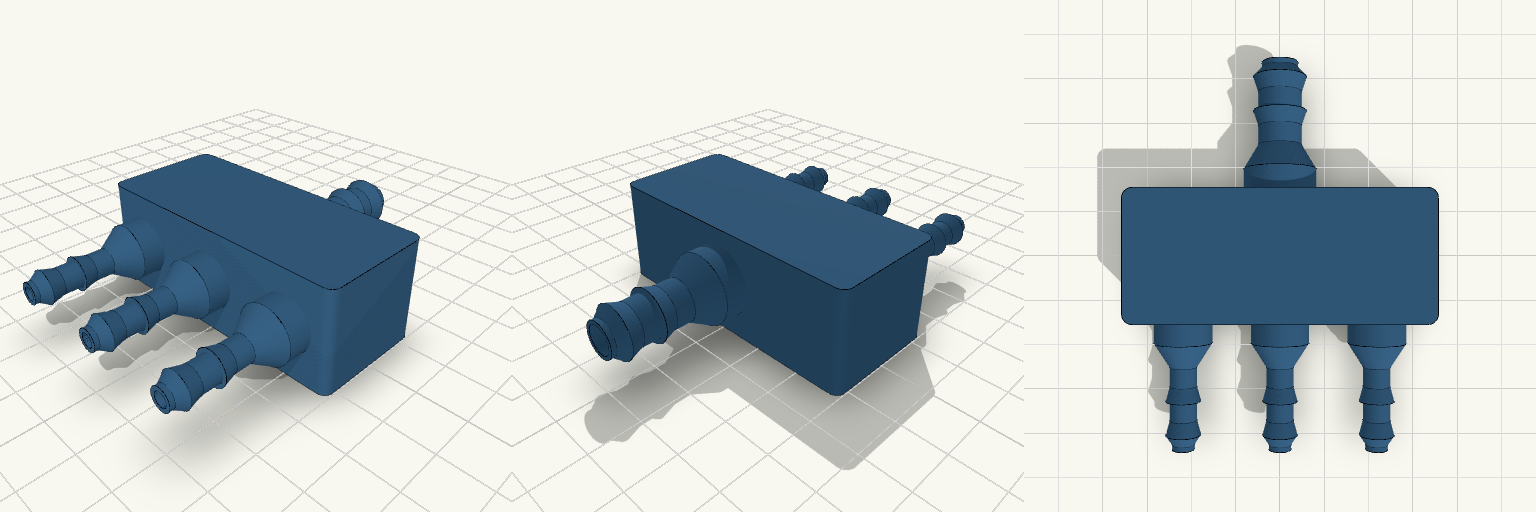

Robust 3-Way Irrigation Manifold
